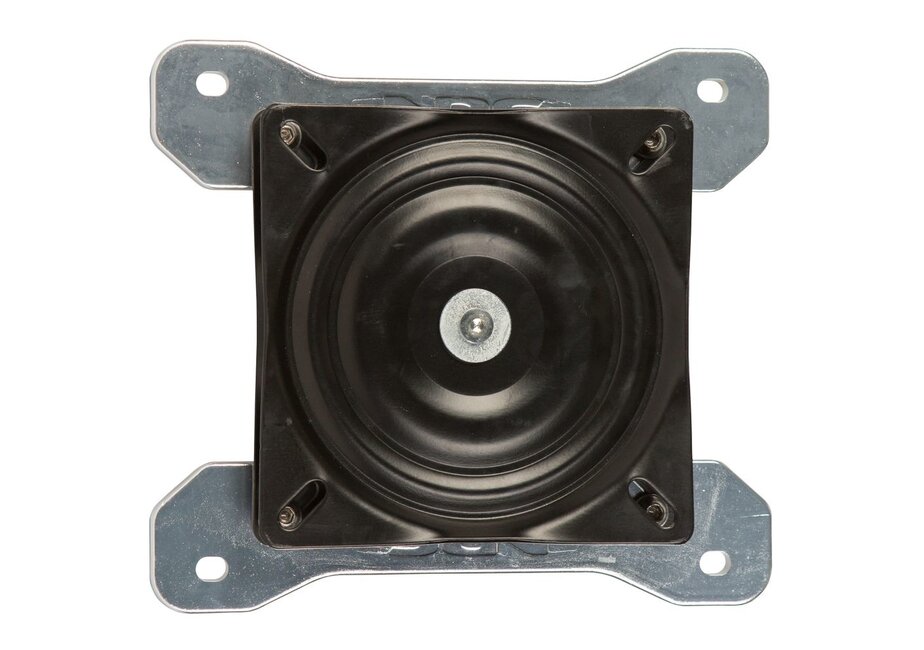

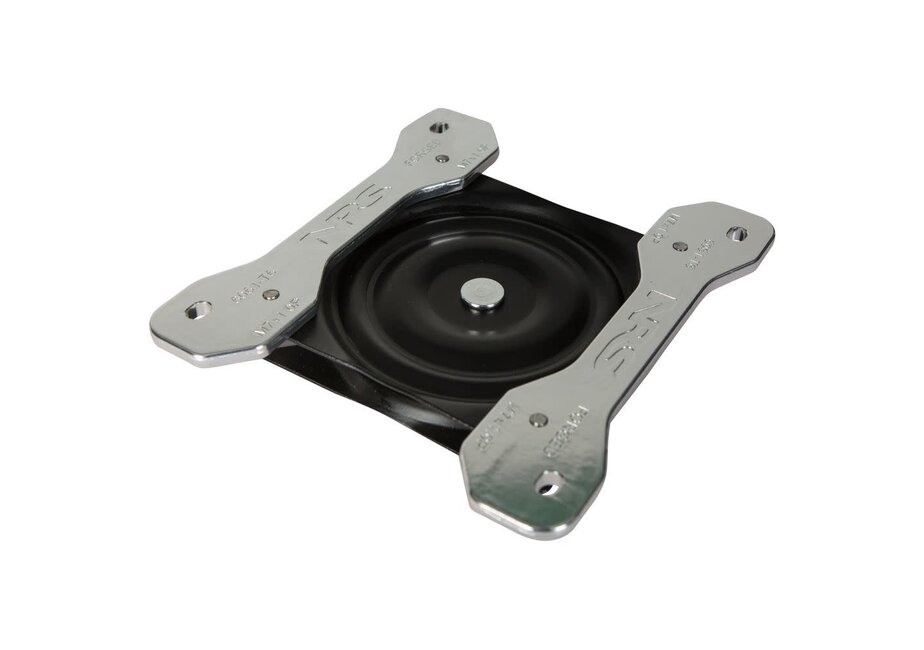

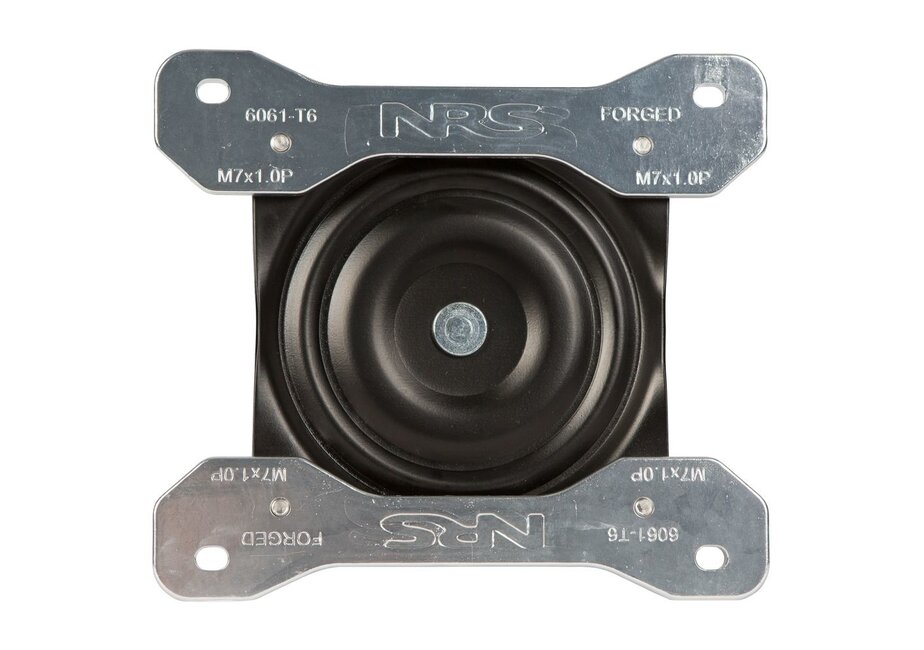

NRS Swivel and Plates for Padded Raft Seats

Bolt the plates to your seat, then bolt the swivel base to your seat bar or the Universal Seat Mount.

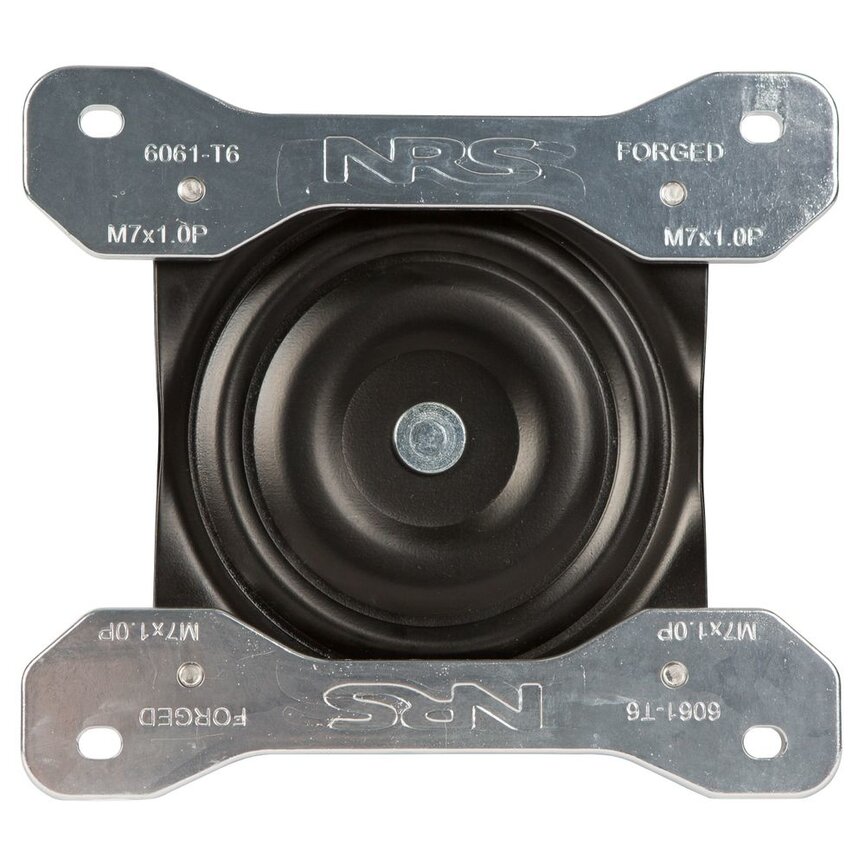

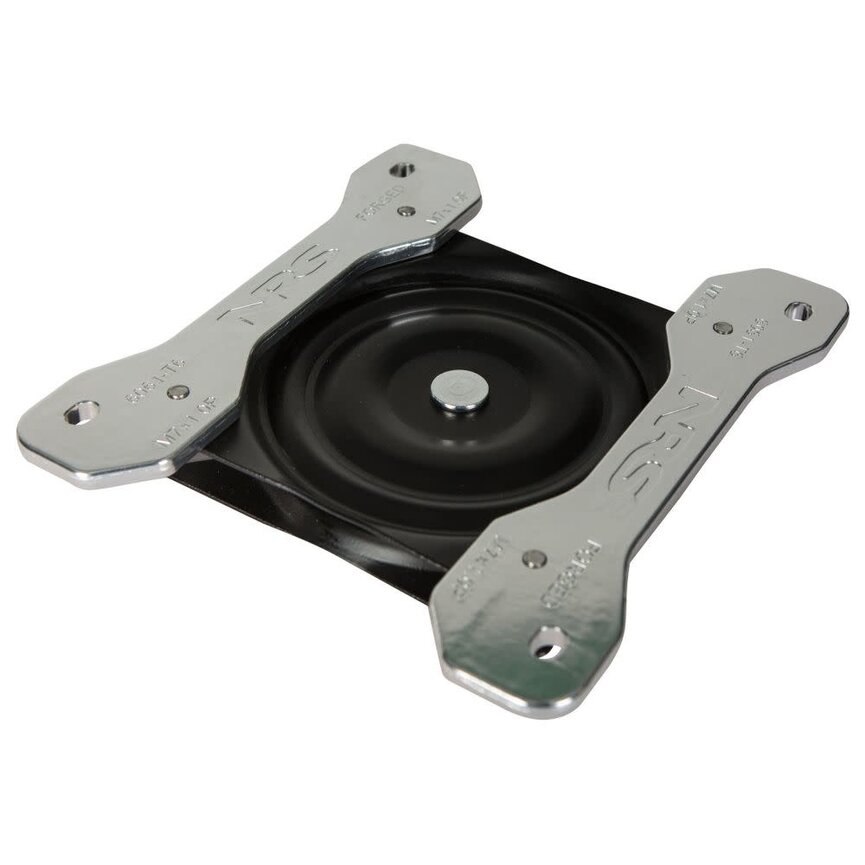

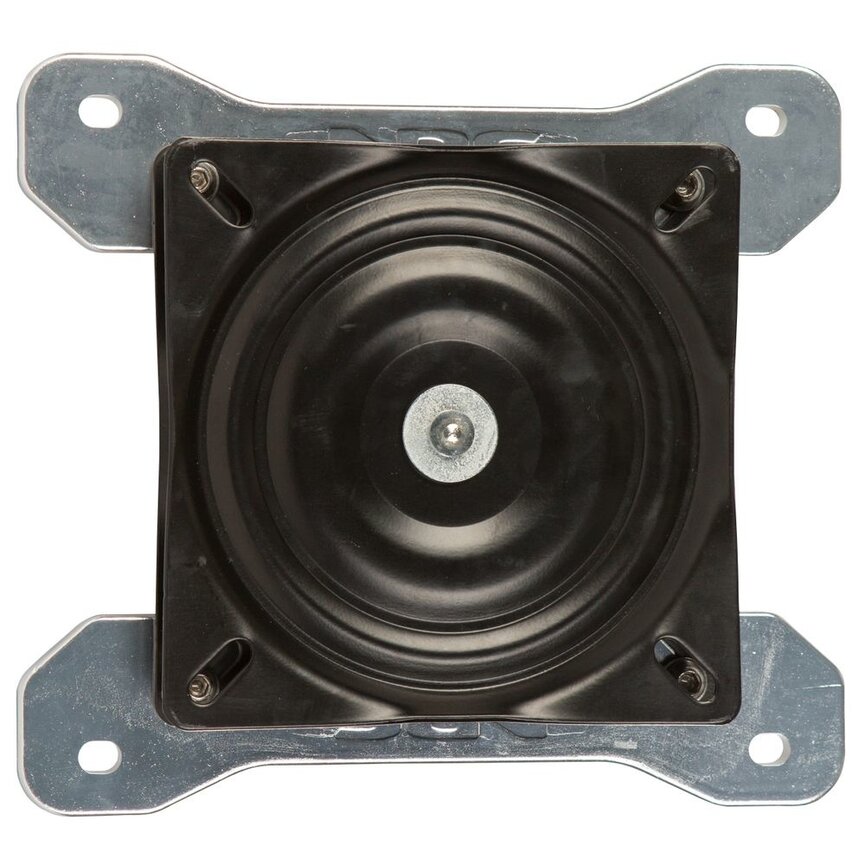

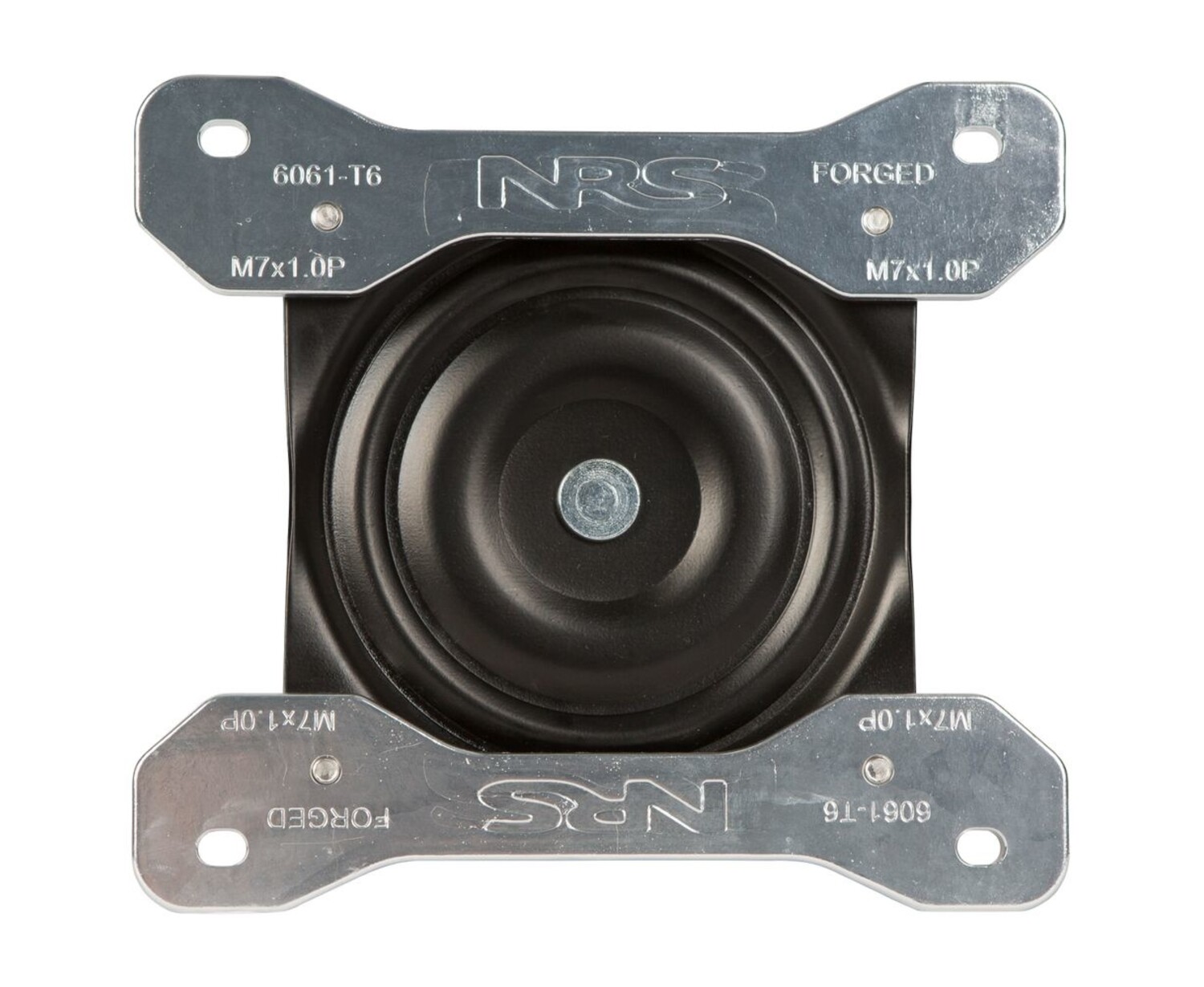

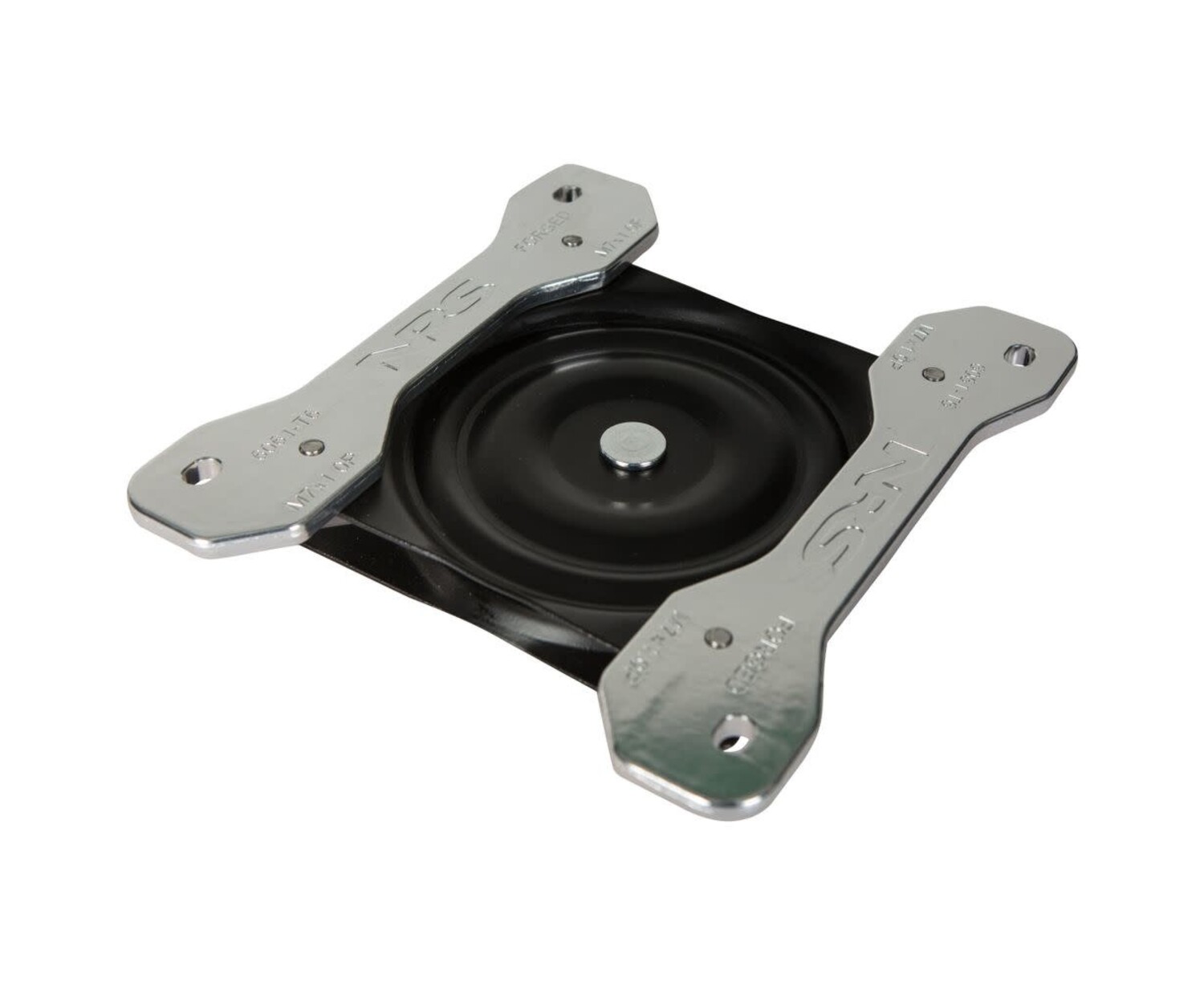

The unit consists of a swivel base that allows the seat to rotate 360 degrees, and two hot-forged aluminum plates that are bolted to it.
The two aluminum plates have holes in the 7" x 7.5" bolt pattern for the NRS Low-Back and High-Back Seats. Use the bolts you have with your seat to attach it to the aluminum plates.
All seat plates on NRS Seat Bars and Angler Seat Bars made in the last several years will have bolt holes in the 5.25" x 5.25" pattern for the swivel.
If you have an older seat bar that doesn't have those holes, just drill four 1/4" holes in that 5.25" x 5.25" pattern.
The unit comes with mounting hardware: 4 each 1/4"-20 x 1" bolts and lock nuts, and 8 flat washers.
The Universal Seat Mount, Item # 94015.01, has both the 7" x 7.5" and 5.25" x 5.25" hole patterns. It can be used for mounting your swivel seat anywhere on the 1 5/8" frame pipe.

Dimensions:	Seat plate measurements - 8.25" x 9.25" Swivel plate measurements - 6.25" x 6.25" Seat plate bolt hole pattern - 7" x 7.5" Swivel plate bolt hole pattern - 5.25" x 5.25"
Weight:	3.125 lbs.

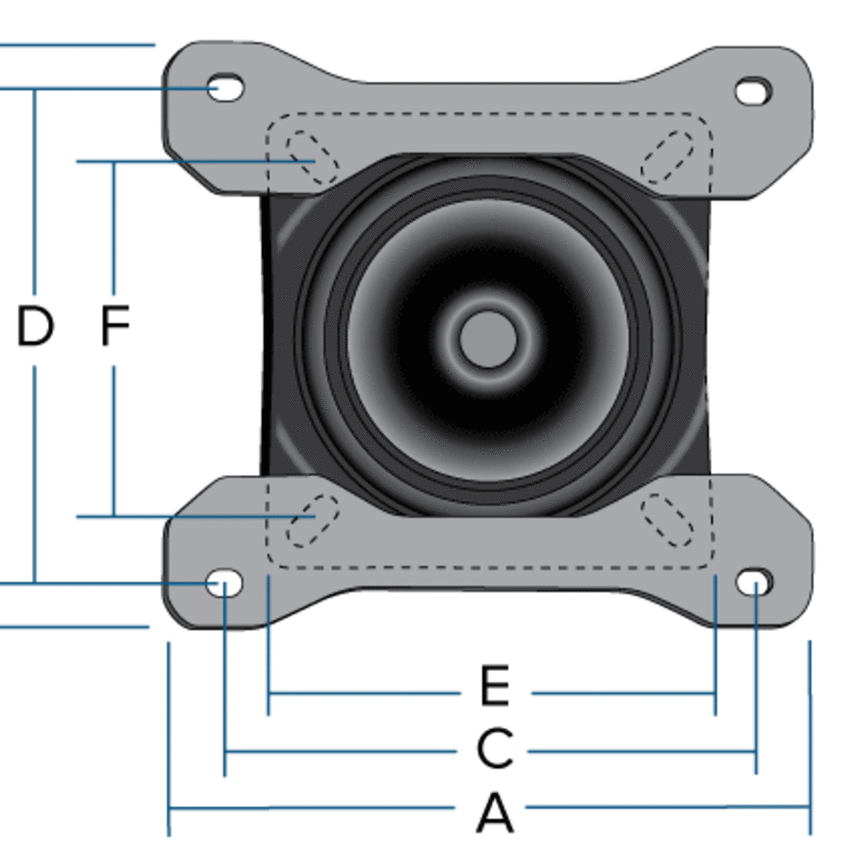

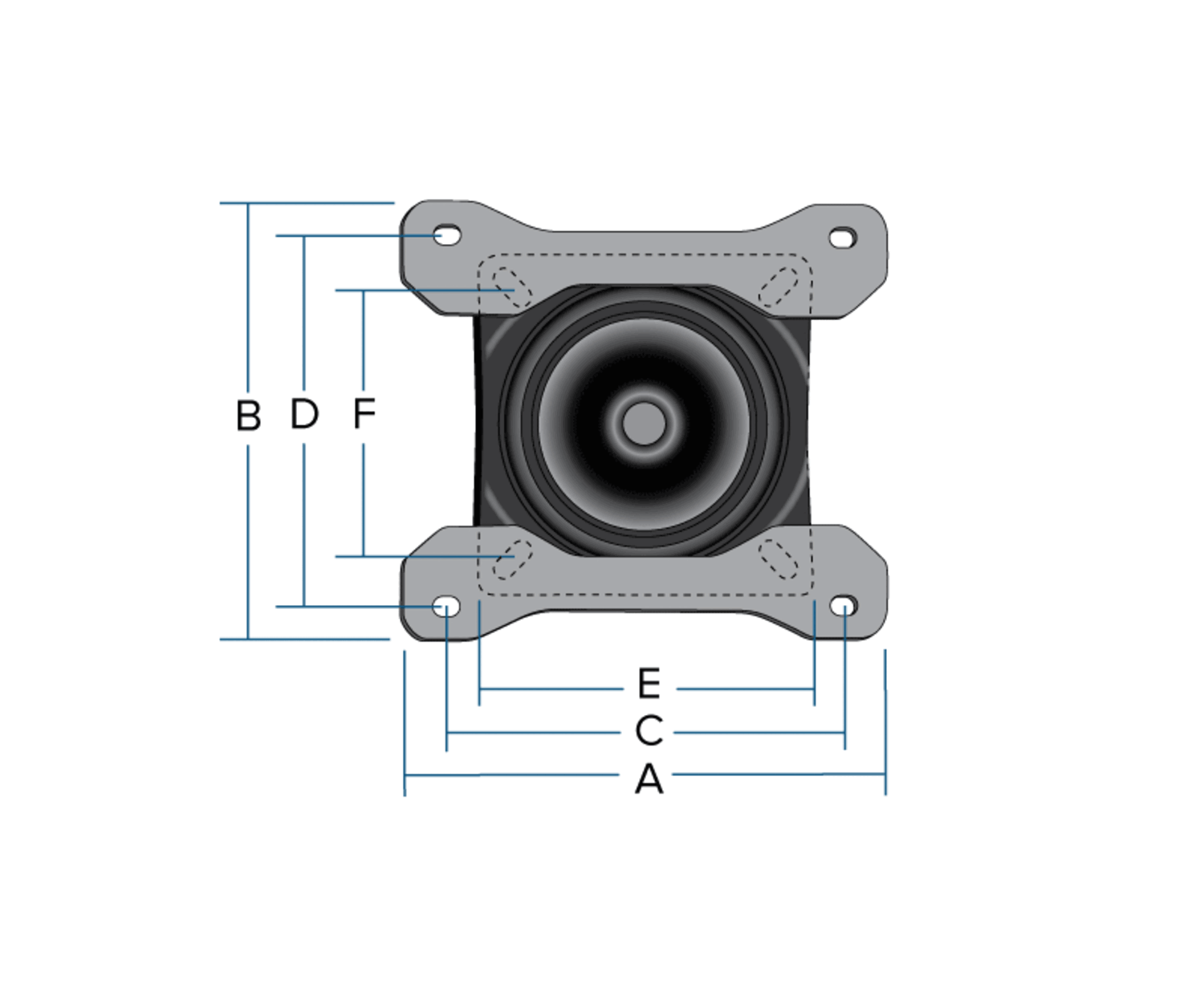

A	B	C	D	E	F
9 1/4"	8 1/4"	7 1/2"	7"	6 3/8"	4 3/4" - 5 1/2"
