NRS - NRS, Inc Universal Seat Mount

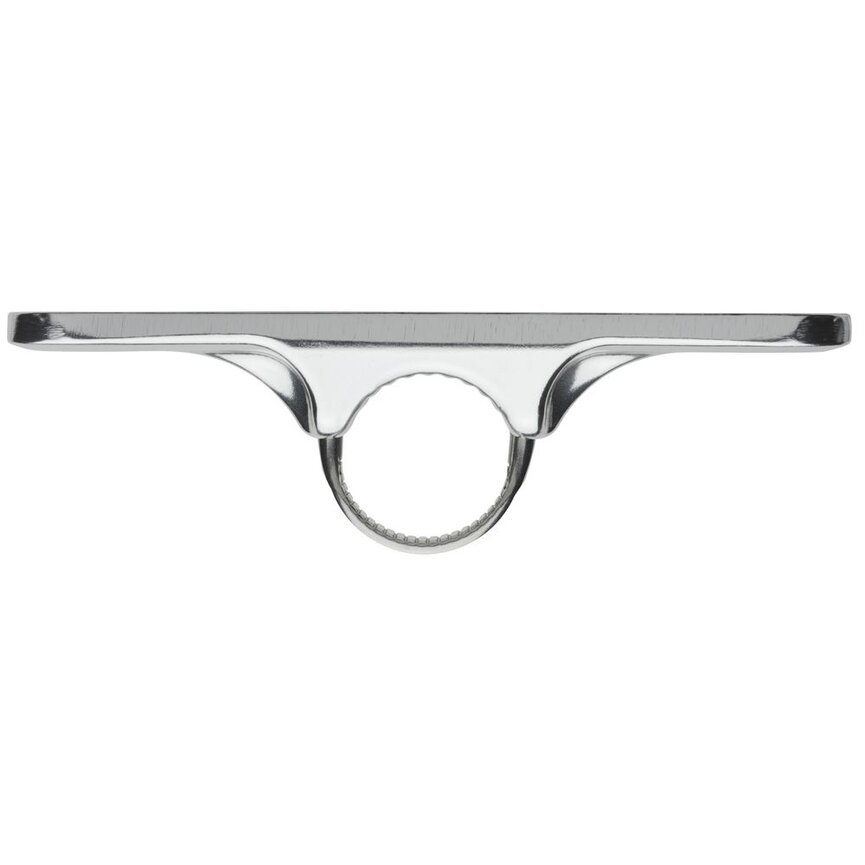

The NRS Universal Seat Mount lets you attach a standard or swiveling NRS Padded Seat to any NRS raft frame crossbar (item #90003.02) or other 1 5/8" diameter pipe.

Read more...
Quantity: 9
The NRS Universal Seat Mount lets you attach a standard or swiveling NRS Padded Seat to any NRS raft frame crossbar (item #90003.02) or other 1 5/8" diameter pipe.
  • Hot-forged aluminum construction aligns the crystalline structure of the metal, creating a super strong piece that is also lightweight.
  • U-bolt attachment system lets you position your seat where you want it and adjust the angle.
  • Molded ridges on the gripping surfaces provide excellent holding strength.
  • Universal bolt holes accept NRS standard or swiveling seats.

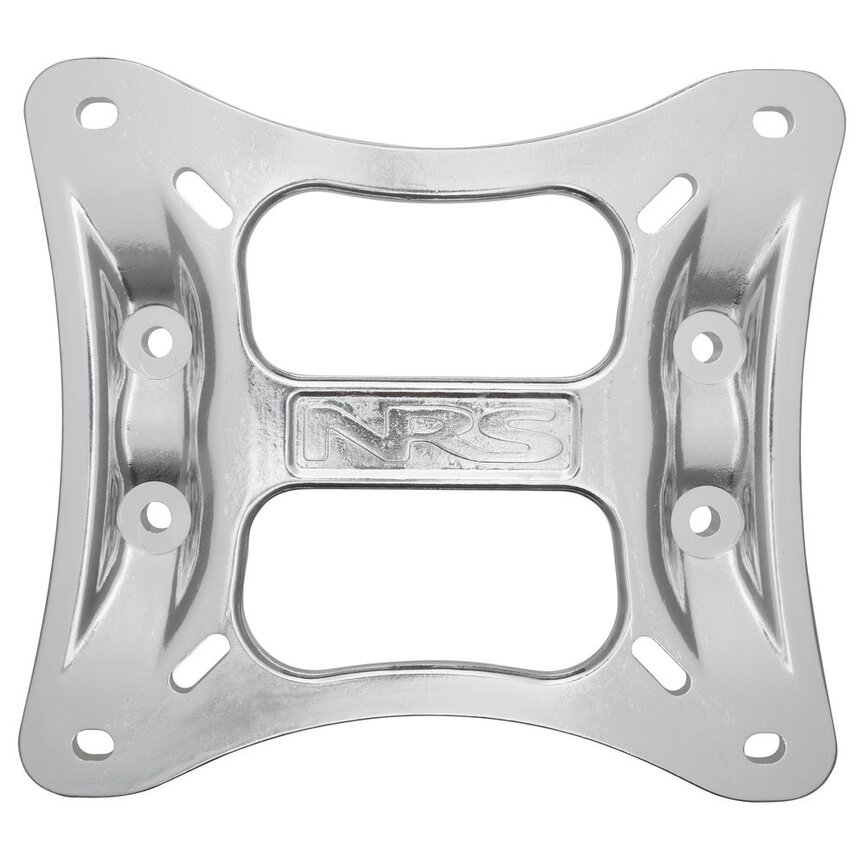

  • There are two sets of bolt holes. The outer set, 7" x 7.5", match with our padded raft seats. The inner set has elongated holes that accommodate seat bolt patterns of 4 3/4"-5 1/2" x 4 3/4"-5 1/2".
  • Includes two coined (flattened curve) U-bolts, four washers and four nylon lock nuts.


Product Tips



  • When installing seat bolts, thread all four of them in loosely by hand before tightening any of them with a wrench. This will prevent cross threading. Tighten seat bolts until lock washers are fully compressed. Do not over-tighten the bolts; that can strip out the seat's inner connector.
A B C D E
9 1/8" 7" 7 1/2" 4 3/4" - 5 1/2" 4 3/4" - 5 1/2"



Weight: 2.25 lbs.
Material: Hot-forged 6061-T6 aluminum alloy
Included Components:
  • 2 - U-bolts with nuts and washers
  • 1 - Aluminum Plate
Features:
  • Accepts NRS standard and swiveling seats
