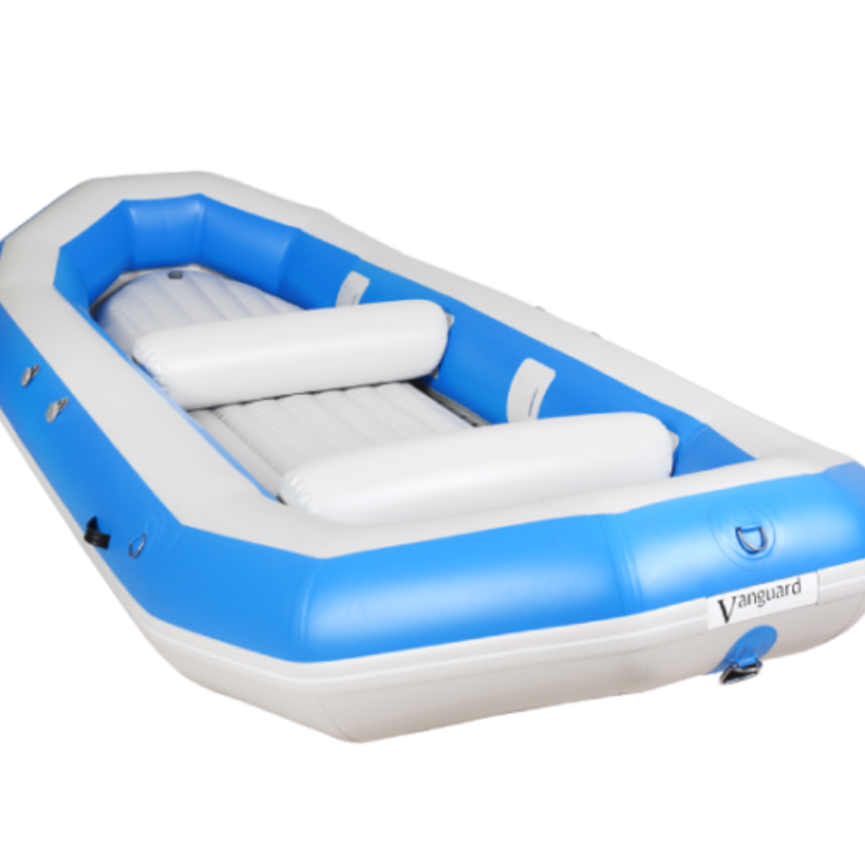

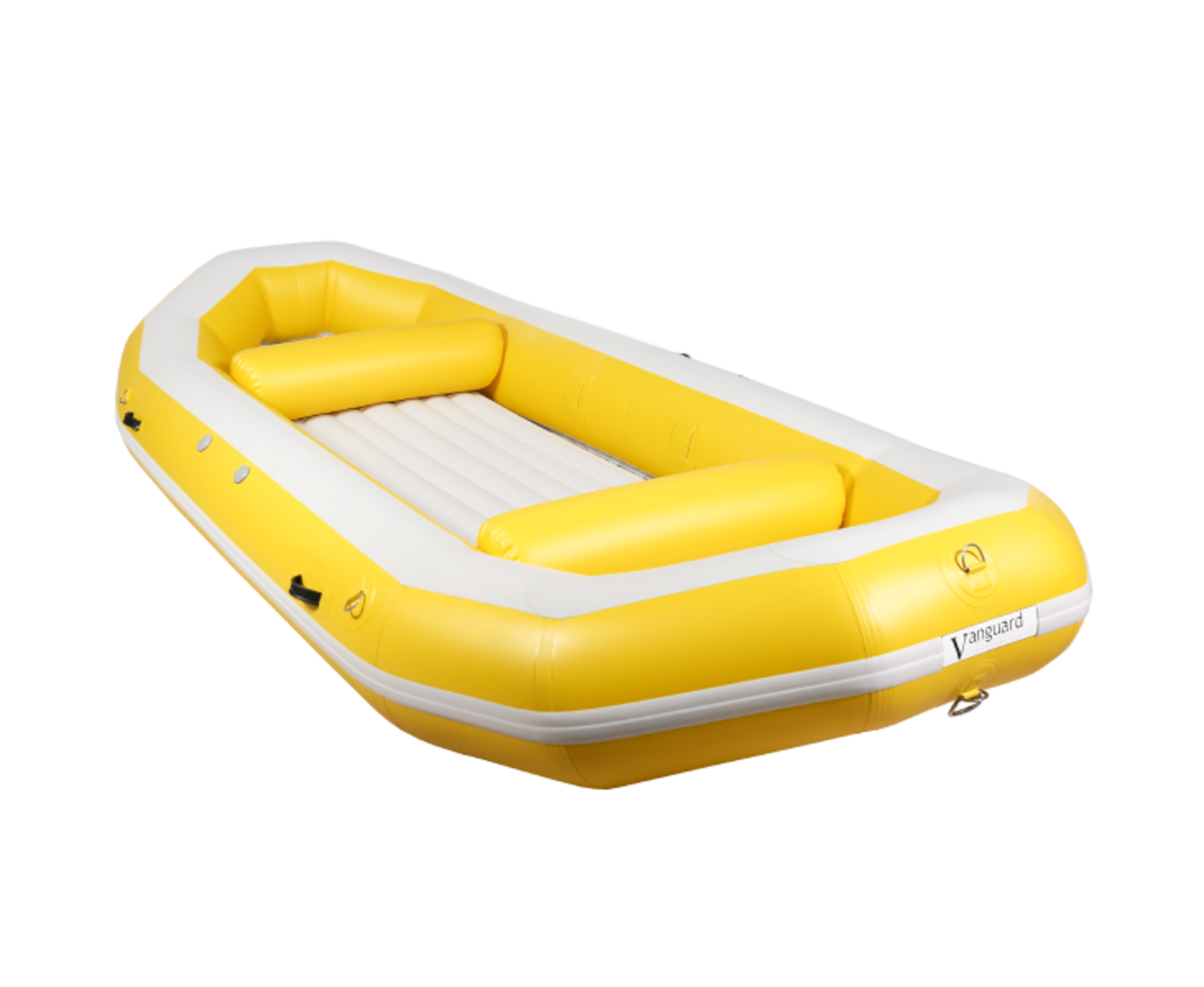

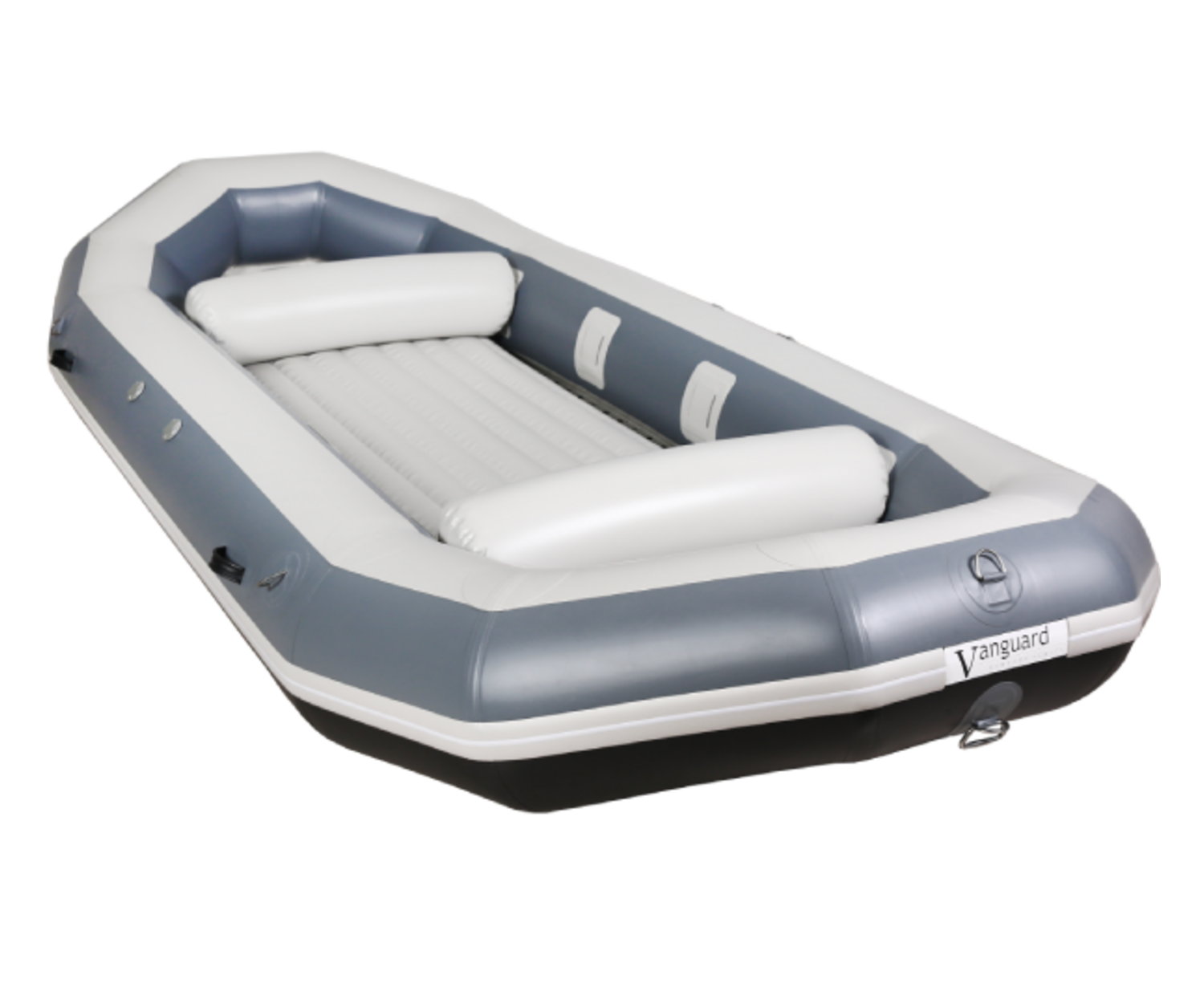

  • Vanguard Inflatables Vanguard Venture Series 1600 Self Bailing Raft

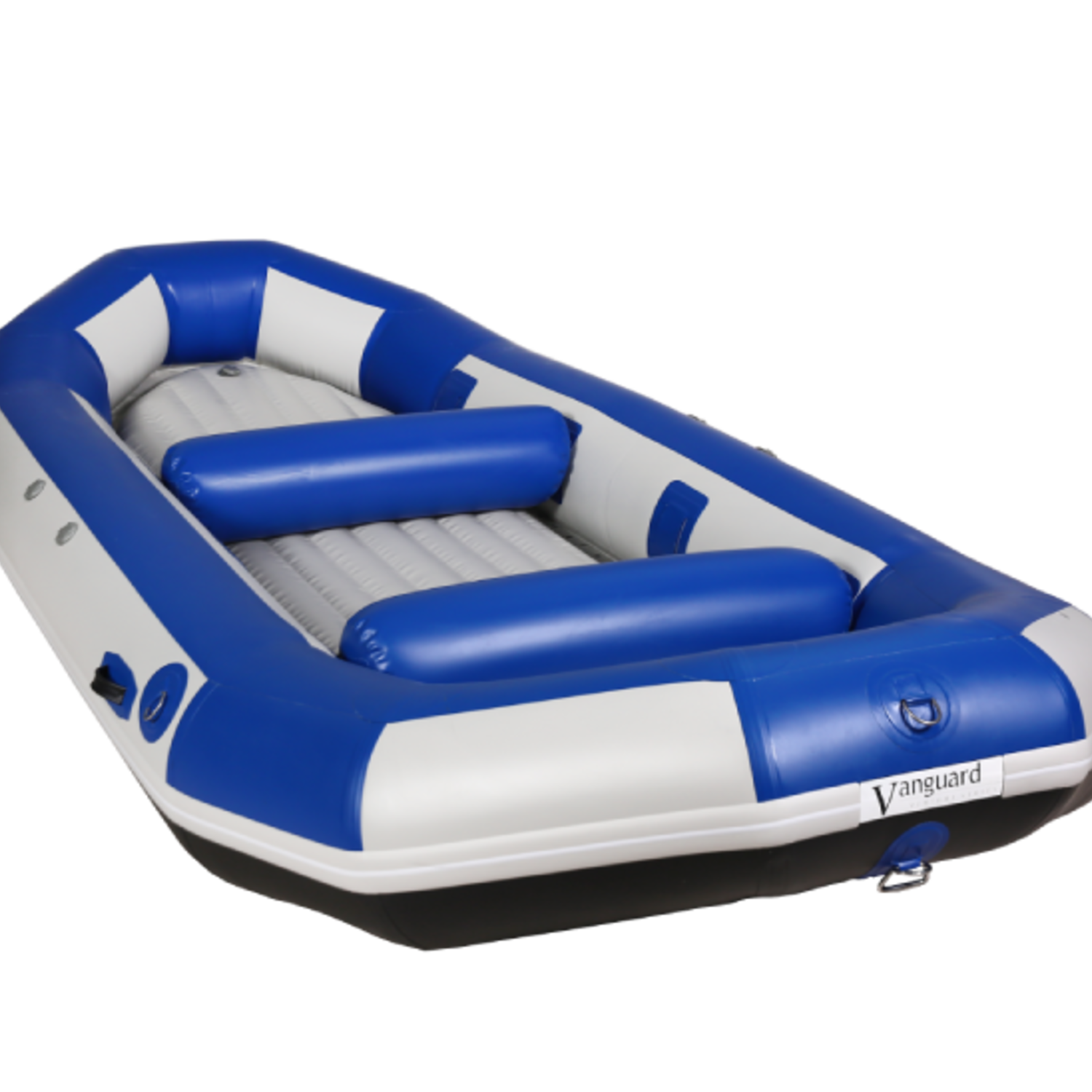

  • Vanguard Inflatables Vanguard Venture Series 1600 Self Bailing Raft

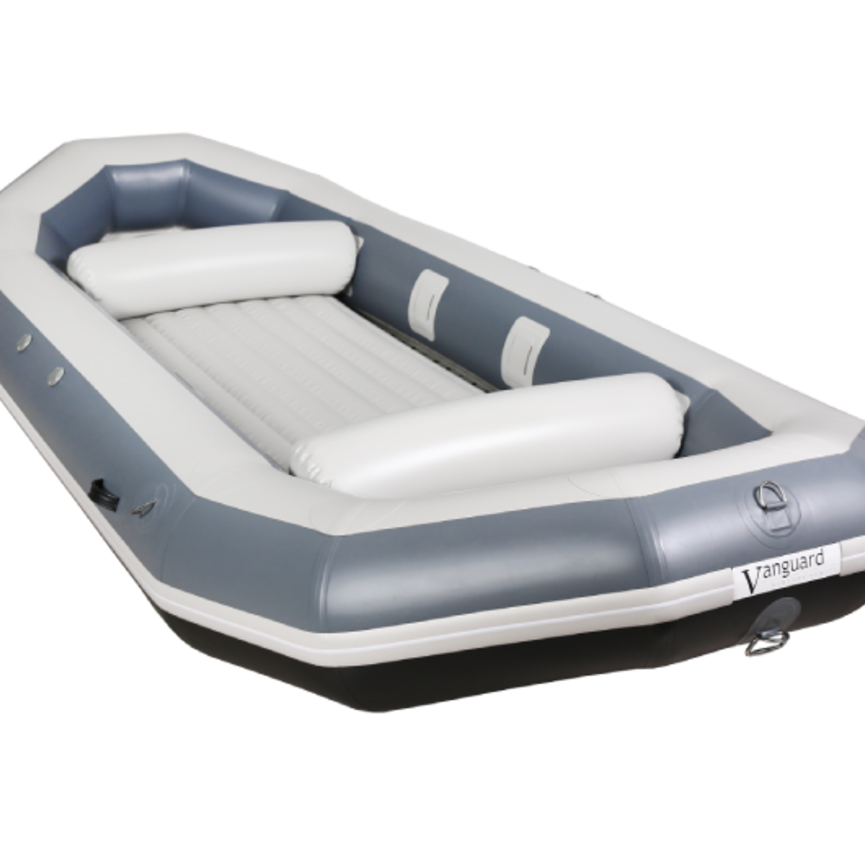

  • Vanguard Inflatables Vanguard Venture Series 1600 Self Bailing Raft

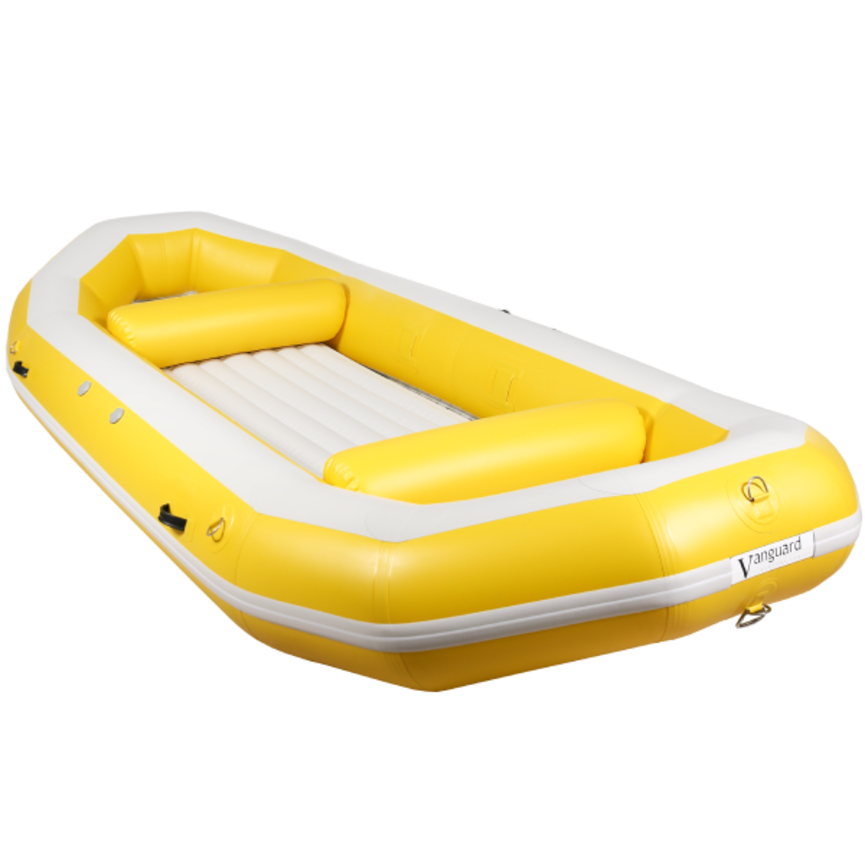

  • Vanguard Inflatables Vanguard Venture Series 1600 Self Bailing Raft

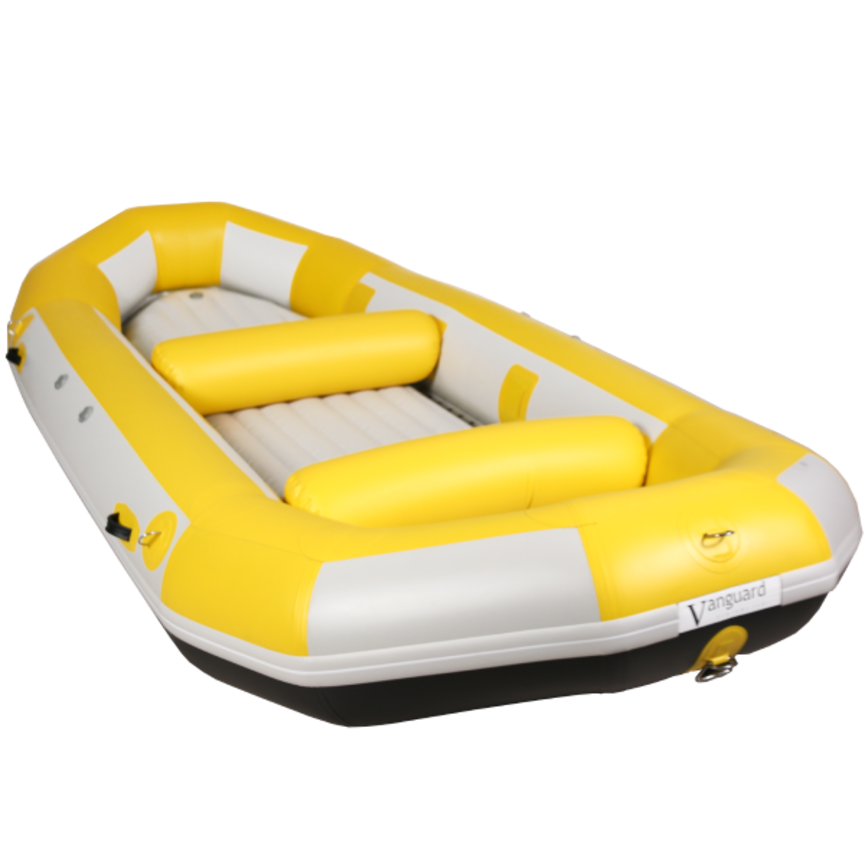

  • Vanguard Inflatables Vanguard Venture Series 1600 Self Bailing Raft
  • Vanguard Inflatables Vanguard Venture Series 1600 Self Bailing Raft

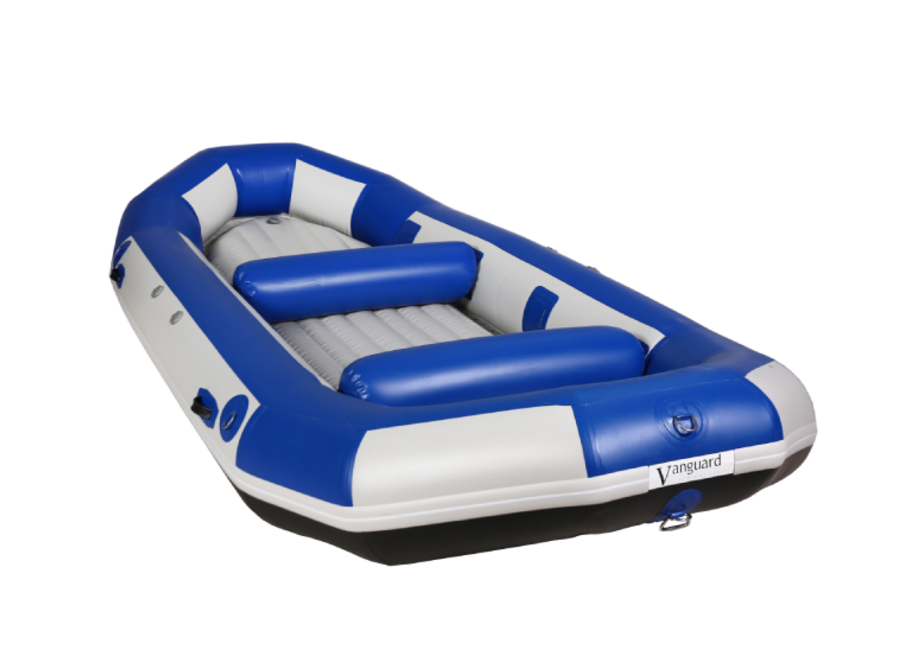

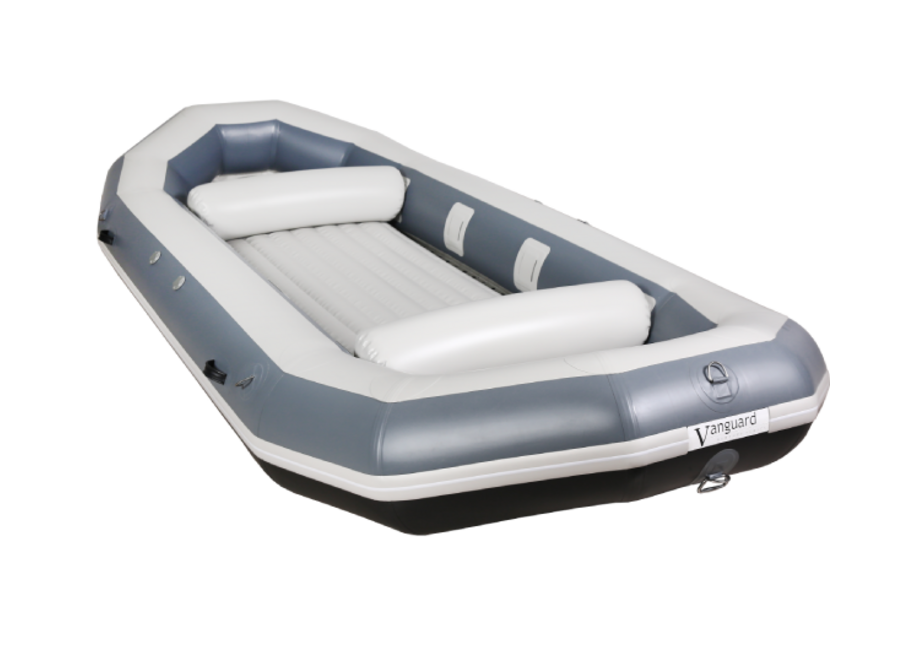

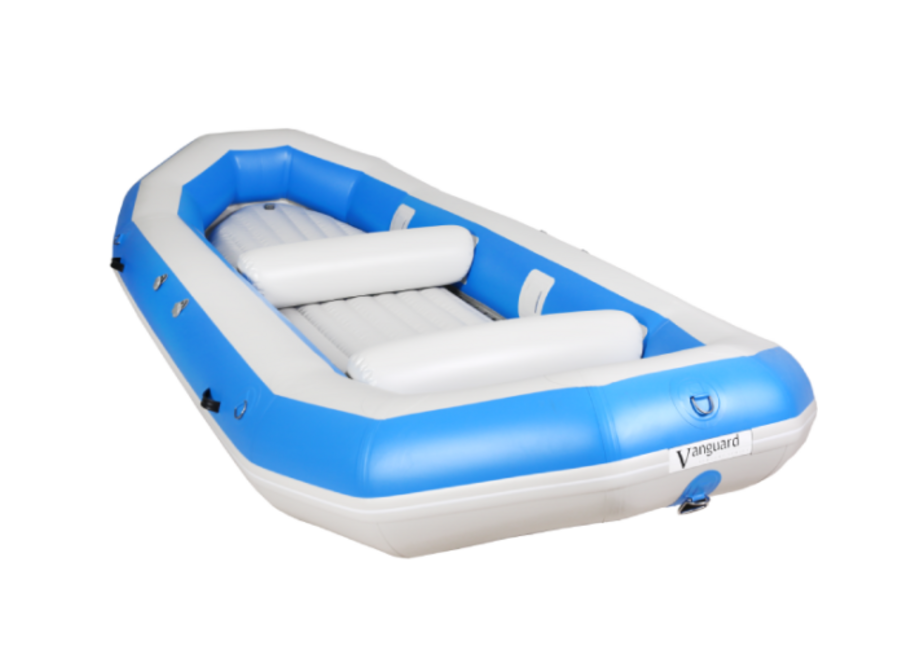

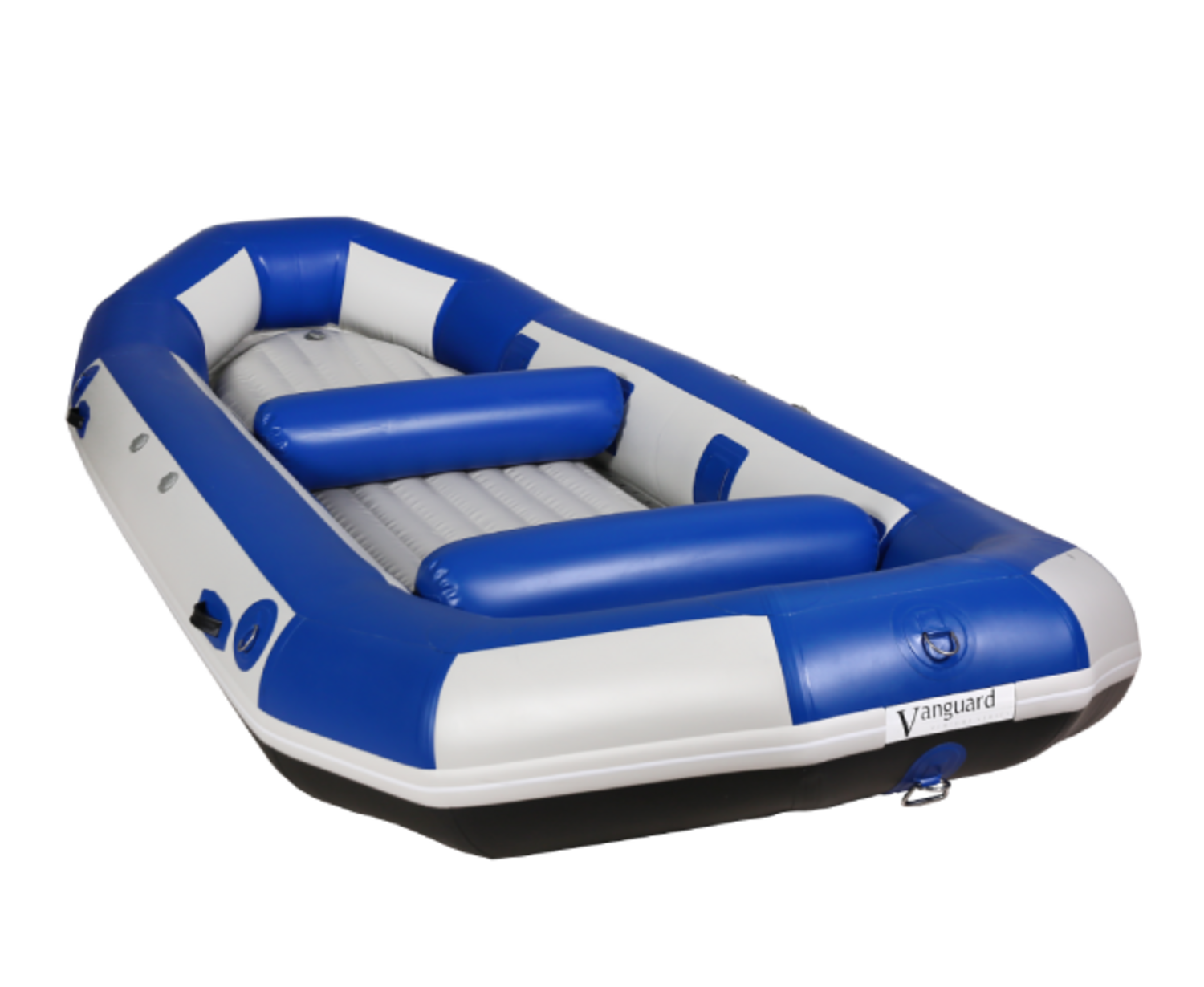

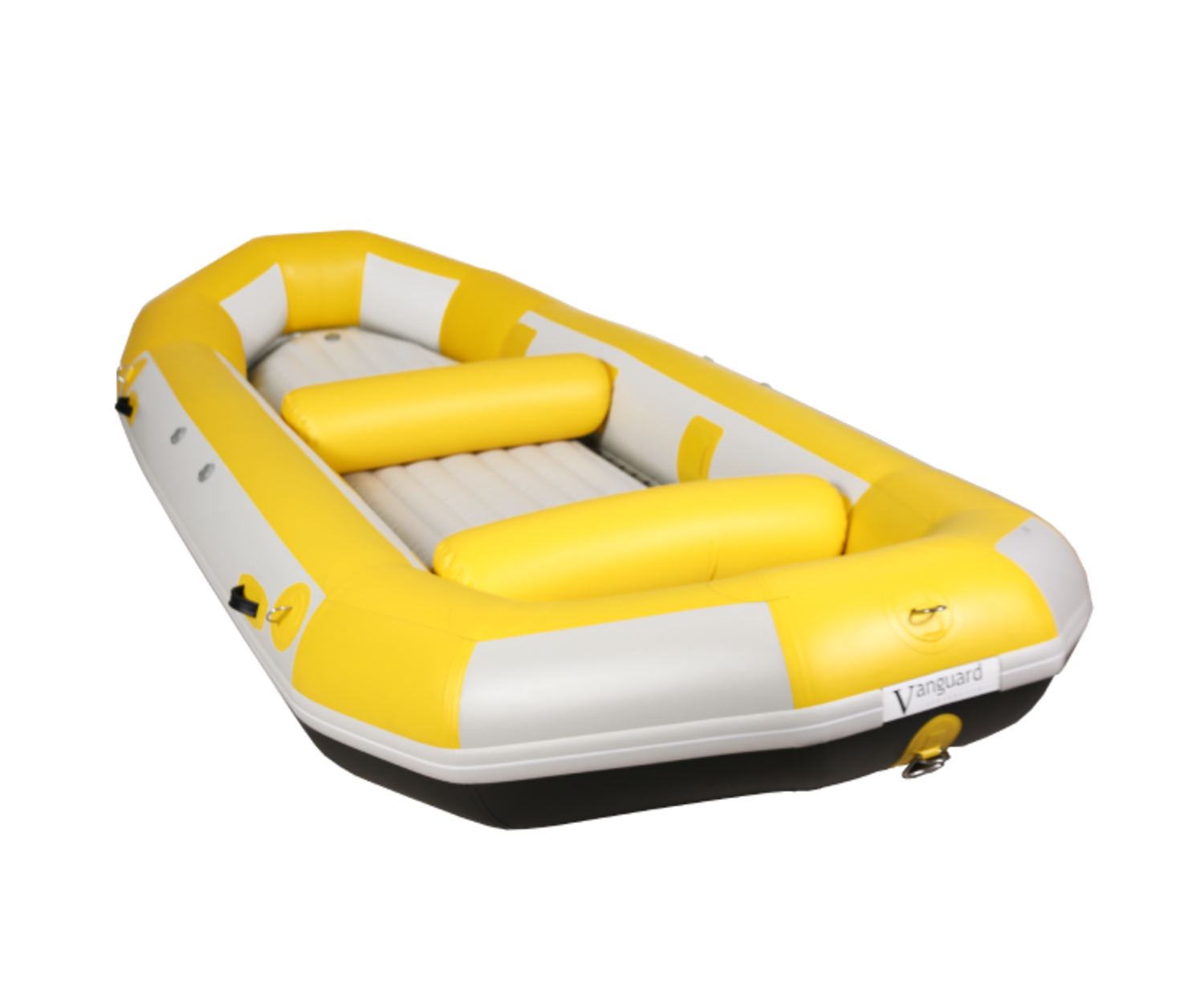

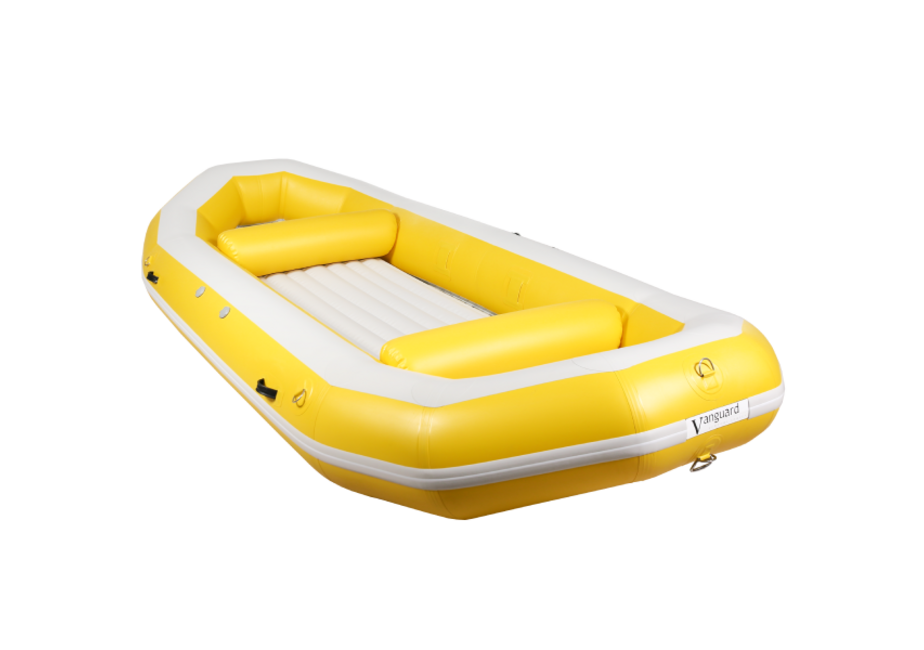

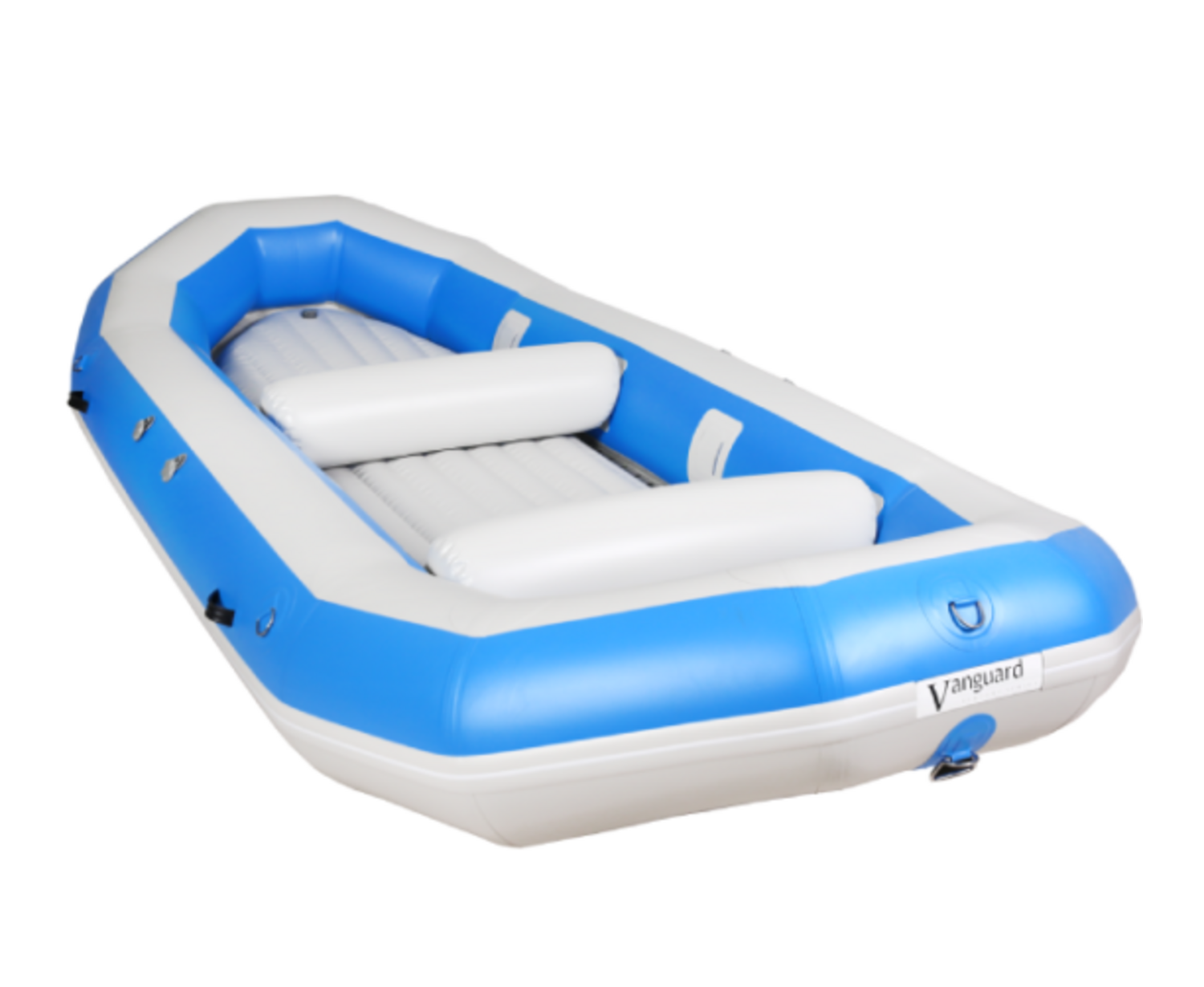

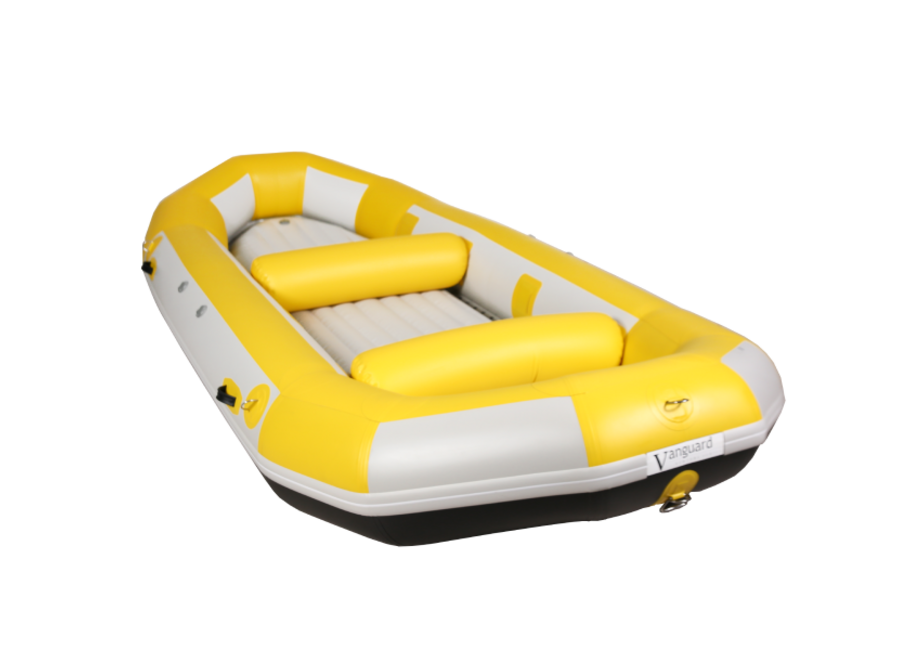

Vanguard Venture Series 1600 Self Bailing Raft

$3,695.00
Excl. tax

Our Venture Series 1600 Series raft is our largest model offered. This is the “vanborghini” of the river.

The rating of this product is 0 out of 5

(0)
Out of stock
Add to wish list Add to wish list

BEFORE BUYING A BOAT ONLINE, GIVE US A CALL TO CONFIRM AVAILABILITY. NOT ALL MODELS AND COLORS ARE STOCKED DURING THE SEASON. MAKE SURE TO PRE-ORDER TO GET THE EXACT MODEL AND COLOR YOU WANT.



*Oversized Shipping Charges Apply*



CALL FOR SHIPPING PRICES 801-455-5450



Our Venture Series 1600 Series raft is our largest model offered. This is the “vanborghini” of the river. It’s our only model with diminished tubes, allowing for more gear space in the bow and stern on extended river trips. Coming in at 7ft wide, there will be no shortage of cargo space for a luxury river camp.



BASE FABRIC:
Vanguard rafts use a strong polyester base fabric in all our boats. The fabric doesn’t stretch when inflated and provides a rigid tube for decreased drag. The 3600 denier floor fabric is some of the thickest in the industry and the floor is also double wrapped halfway up the sides of the tubes.



FABRIC COATING:
Our boat fabric is then coated in PVC to provide a perfect combination of lasting durability, and abrasion resistance. The PVC coating also adds another layer of improvement on the boat’s performance and helps decrease the drag and improve the rigidity of the boat.



SEAMS:
Finally, our boats are glued to provide a superior chemical bond. Glued seams on a PVC boat are fundamentally different than glued seams on a hypalon boat. A glued seams maintains the integrity of the fabric and makes repairs simple.





TECHNICAL SPECIFICATIONS & GEOMETRY


Series

Self Bailing Raft

Model

PSB-1600

Self Bailing

Yes

Type of Material

PVC

Length

15' 10"

Outside Width

85"

Center Compartment Width

44"

Center Compartment Depth

11.8"

Chafe Strip Length

33' 10"

Tube Diameter

20"

Weight

173 lbs

Base Fabric Denier

1100DTX

D-Rings

6

Handles

4

Handles Spacing

5' 4"

Crew Capacity

10

Number of Thwarts

2

Thwart Diameter

12"

Number of Air Chambers

7

Bow Kick

30"

Stem Kick

30"

Repair Kit

Yes

Valve Type

Leafield – C7

Suggested Frame Width

66"

Maximum Frame Length

8' 4"

Warranty

2 Years
