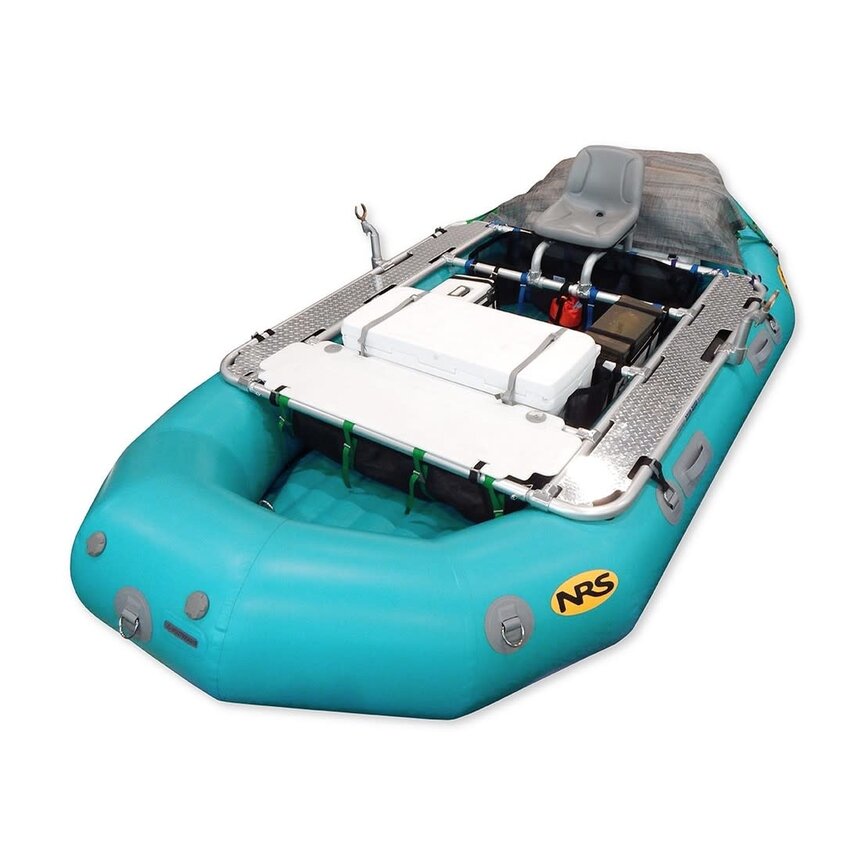

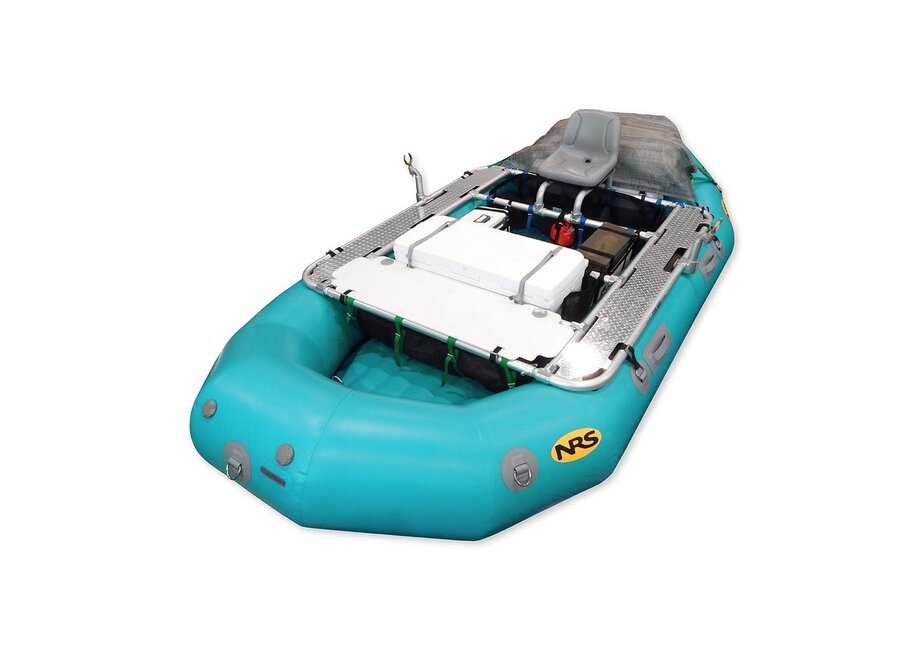

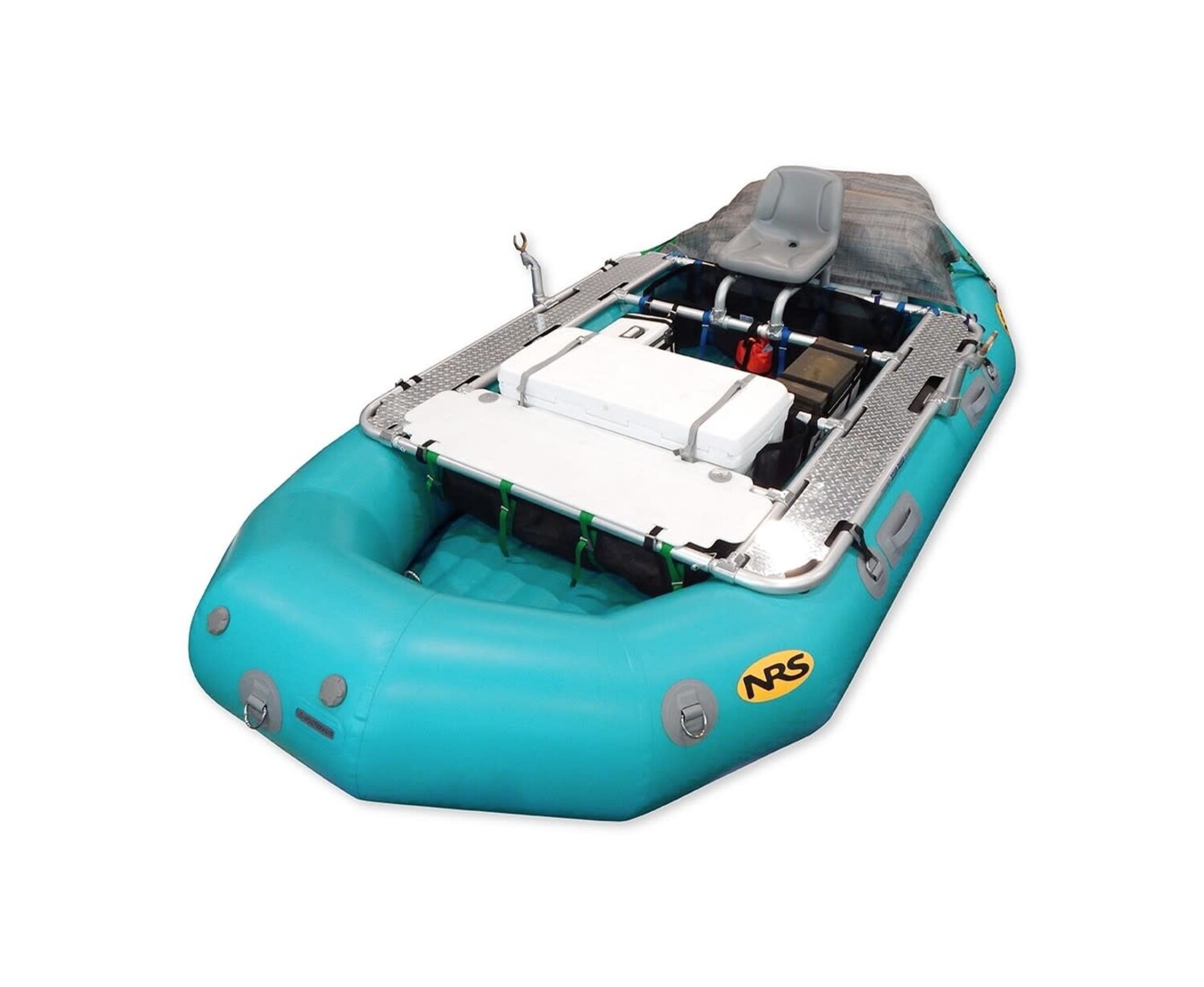

The Gunnison series of plug n' play frames are designed to fit a wide variety of rafts. The Down River Gunnison 4-Bay Diamond Plate Raft Frame XD comes in two sizes and is pre-built and ready to ship for your next trip. The added diamond plate decking creates a sturdy standing platform for rigging your raft and allows for extra storage options. The Gunnison series has all the same components used for custom Down River frames, but without the customized production time associated with our made-to-order frames. The Down River Gunnison 4-Bay Diamond Plate Raft Frame XD includes kick bar and oar towers. Get on the water today!
*** Oversized Shipping Charges Apply - Call for Shipping ***
- XD Pipe 1.5in (O.D. 1.9in; I.D. 1.620in) 6063 T6 Schedule 40 (.135in) Anodized Aluminum Alloy
- Fittings Hollaender Al-Mag 535 fittings (physical strength characteristics comparable to malleable iron at one-third the weight)
- Diamond Plate Treadbrite 1/8in (3/16in w/ Diamond Tread) 6061 Aluminum Alloy
- The cross bars are set at our factory with the following bay dimensions from front to back; 13", 19.5", 20" (rowers foot well) and 19.5". Each cross bar has 7" of adjust-ability fore/aft, so you can fine tune your bay dimensions as needed.
- Standard 14ft Raft 80in L x 69+in W Interior Width 36-40in tube diameter 18-20in Hyside Outfitter 14XT, Aire 143R, 136DD, 143D, NRS Otter 140, Maravia Willy 1.5, RMR 14, Williwaw 1, Willy Willy and more
- 14ft Raft: 82in L x 74in W, interior width 41-45in tube diameter 18-20in fits Hyside Outfitter 14XT, Aire 156R & D, NRS Otter & E 140, Maravia Willy 1.5, RMR 14 and more.
- 16ft Raft: 90in L x 80in W, interior width 46-50in tube diameter 22in fits RMR 16, Maravia Willy 2.0, NRS E-160, Aire 176R, Hyside Pro 16XT and more.
- Call us if you don’t have one of the boats listed to check if these frames are a good fit for your boat.
