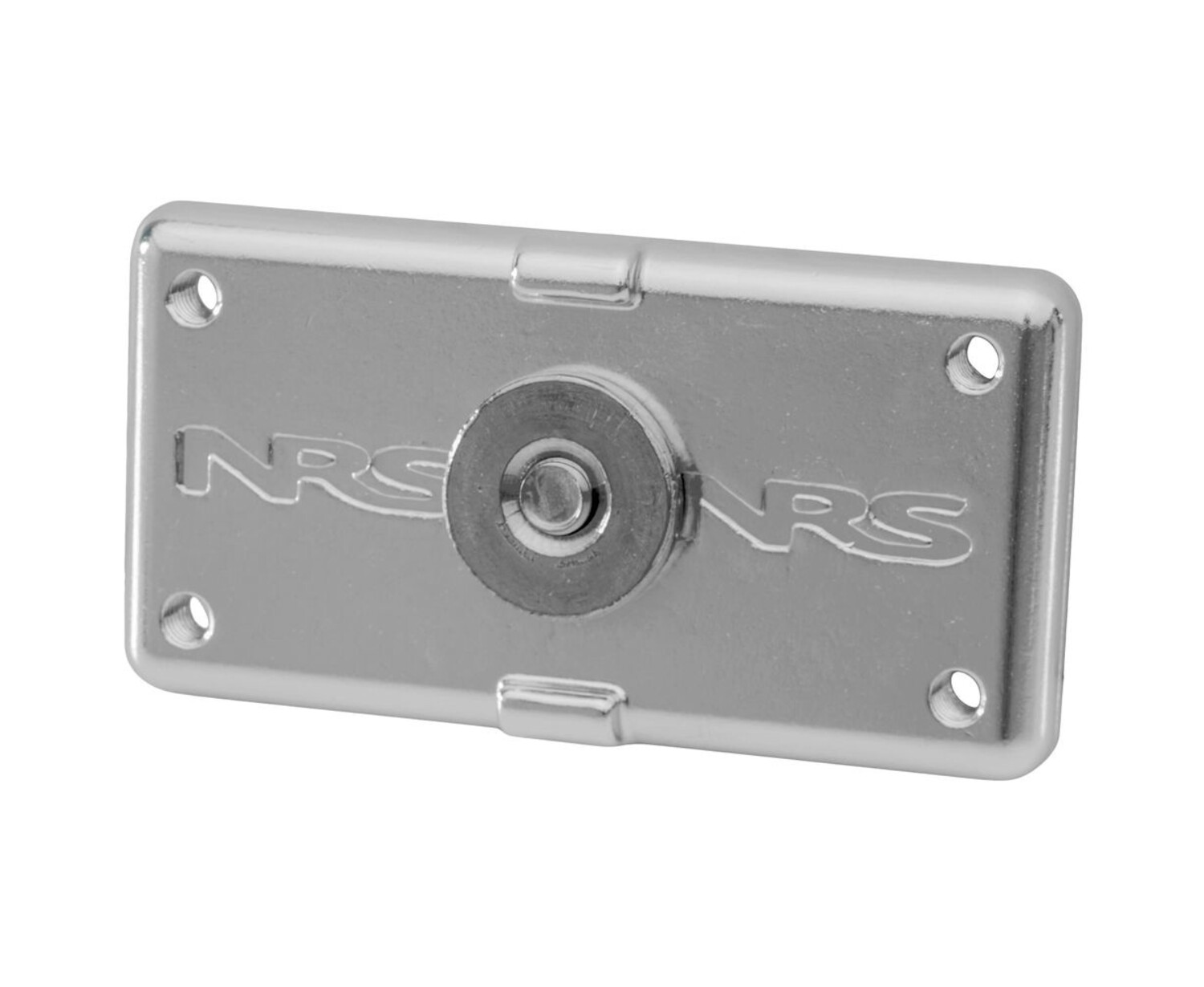

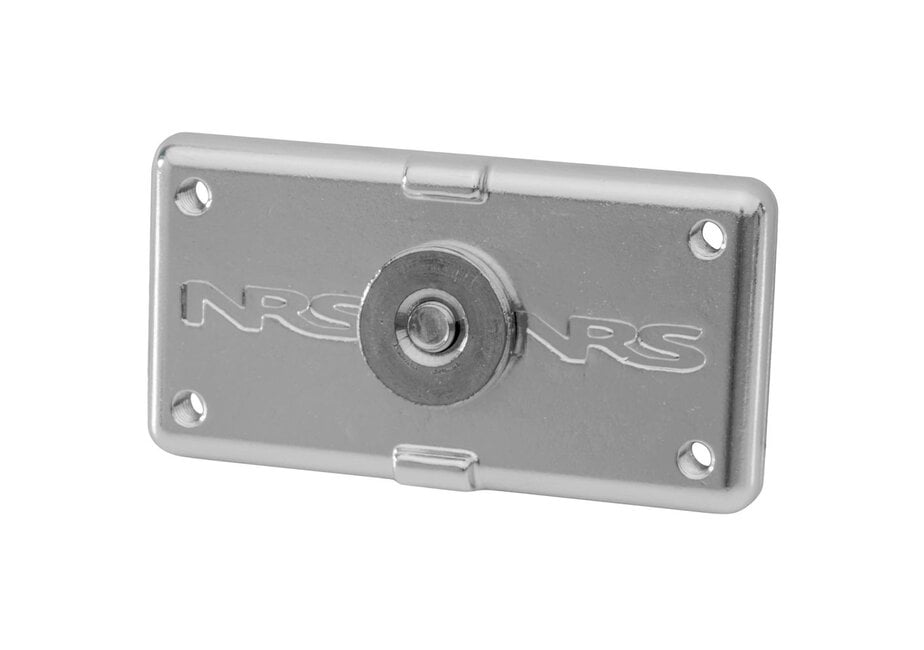

NRS - NRS Utility Mount for the ClampIT

Attach Scotty® Rod Holder Bases and RAM® Bulkhead Flat/Surface Bases to NRS frame pipe with the ClampIT™ Utility Mount. Fits snugly and is easily movable from place-to-place.

Quantity: 1
  • The ClampIT Frame Attachment, Item # 91062.01, sold separately, is a forged aluminum mounting device that clamps to 1 5/8" diameter pipe with a cam-lever action.

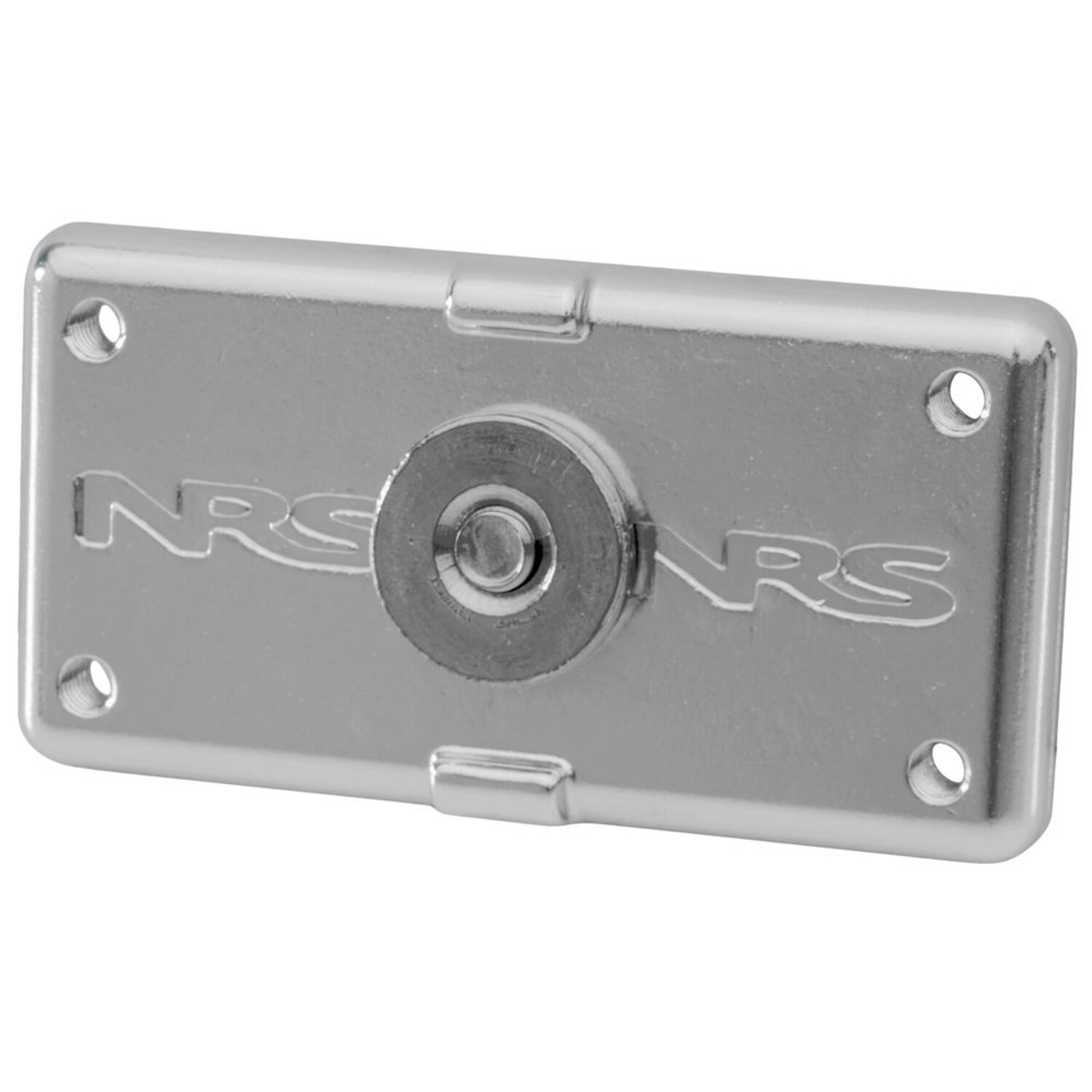

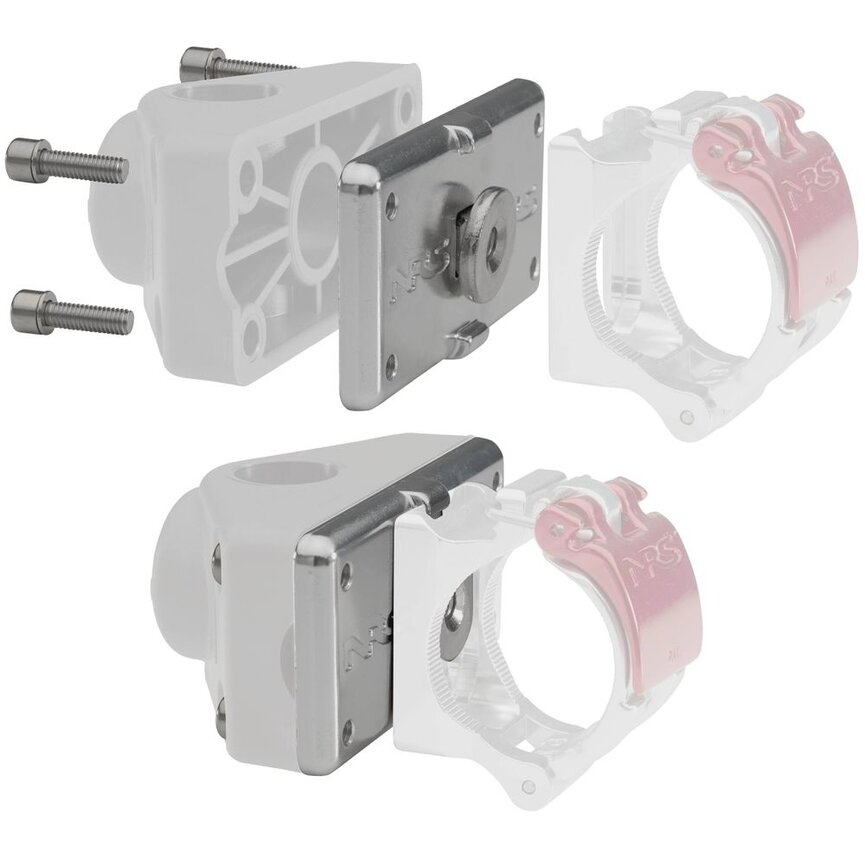

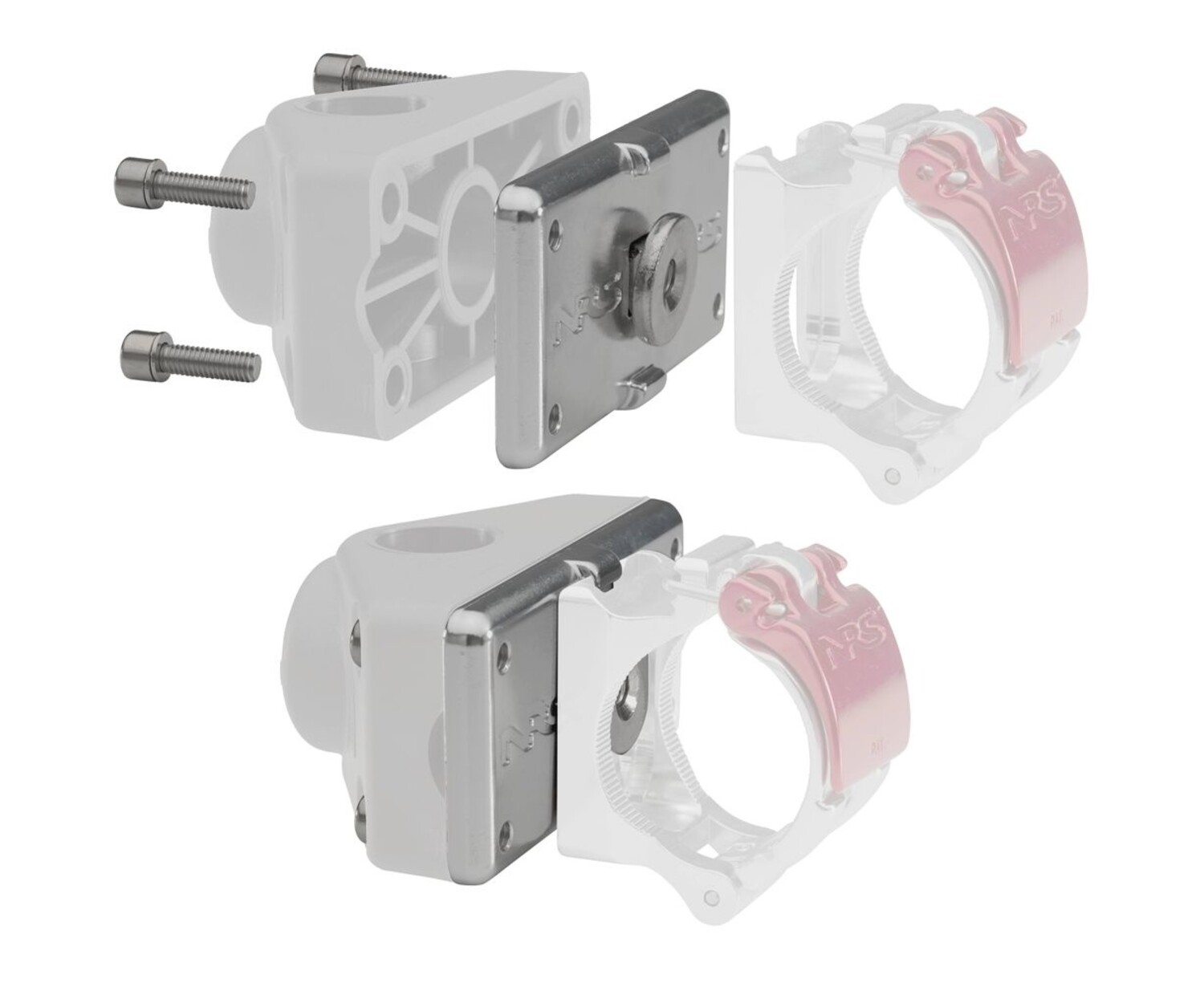

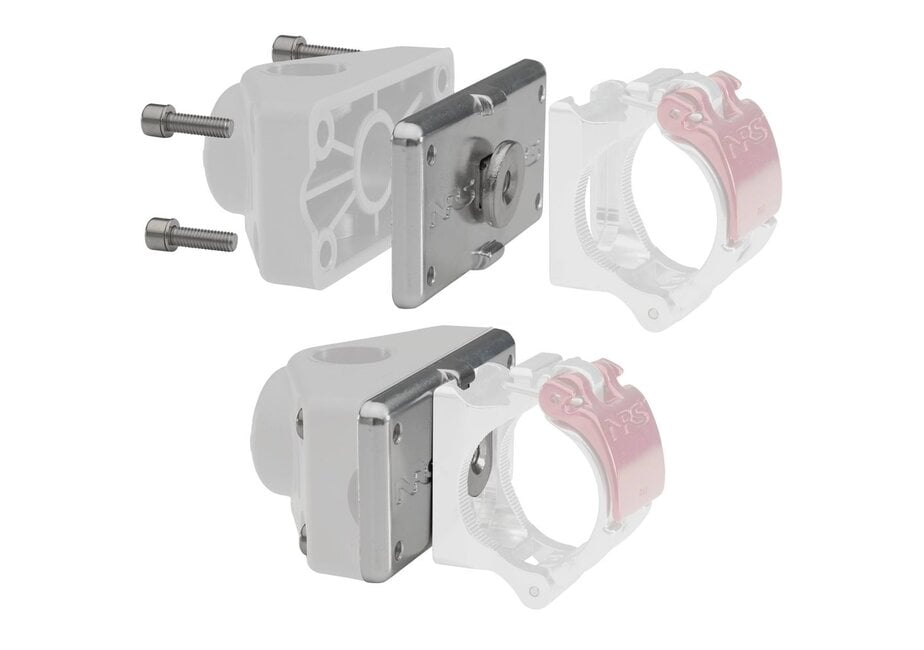

  • To assemble the Utility Mount, place the round metal piece with square base in the square recess on the plate. Take the shortest bolt and thread it into the round piece, leaving it loose.
  • Now slip the round piece in the receiving slot of the ClampIT. Center the ClampIT on the plate and tighten with a 3/16" (5 mm) hex wrench (not included).
  • Use the four longer bolts to secure your Scotty or RAM base to the plate.

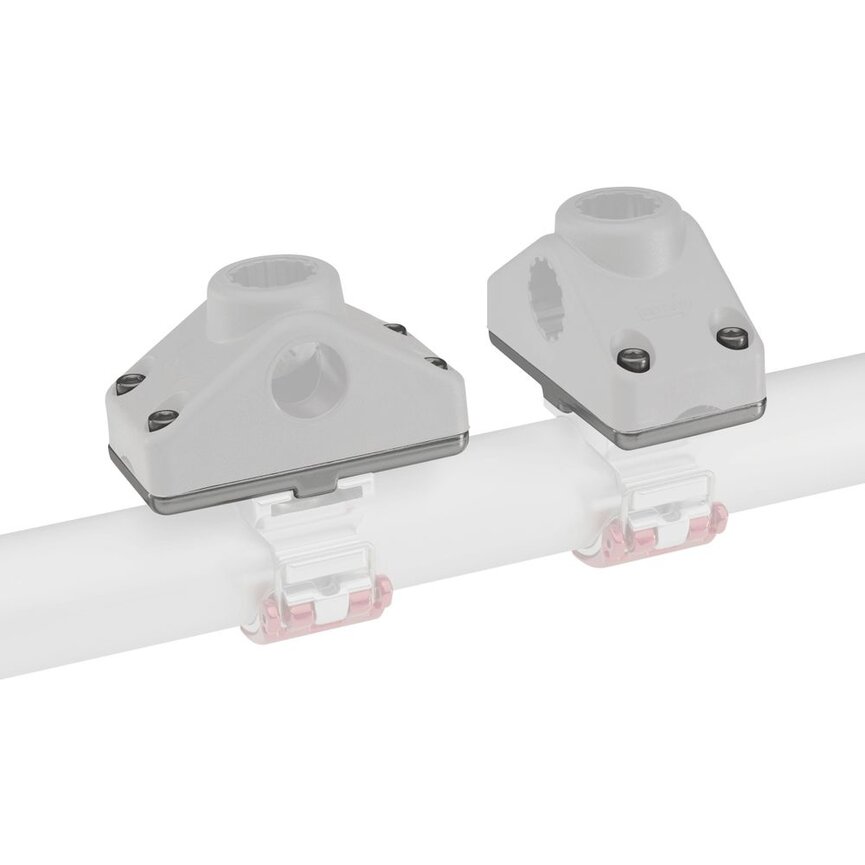

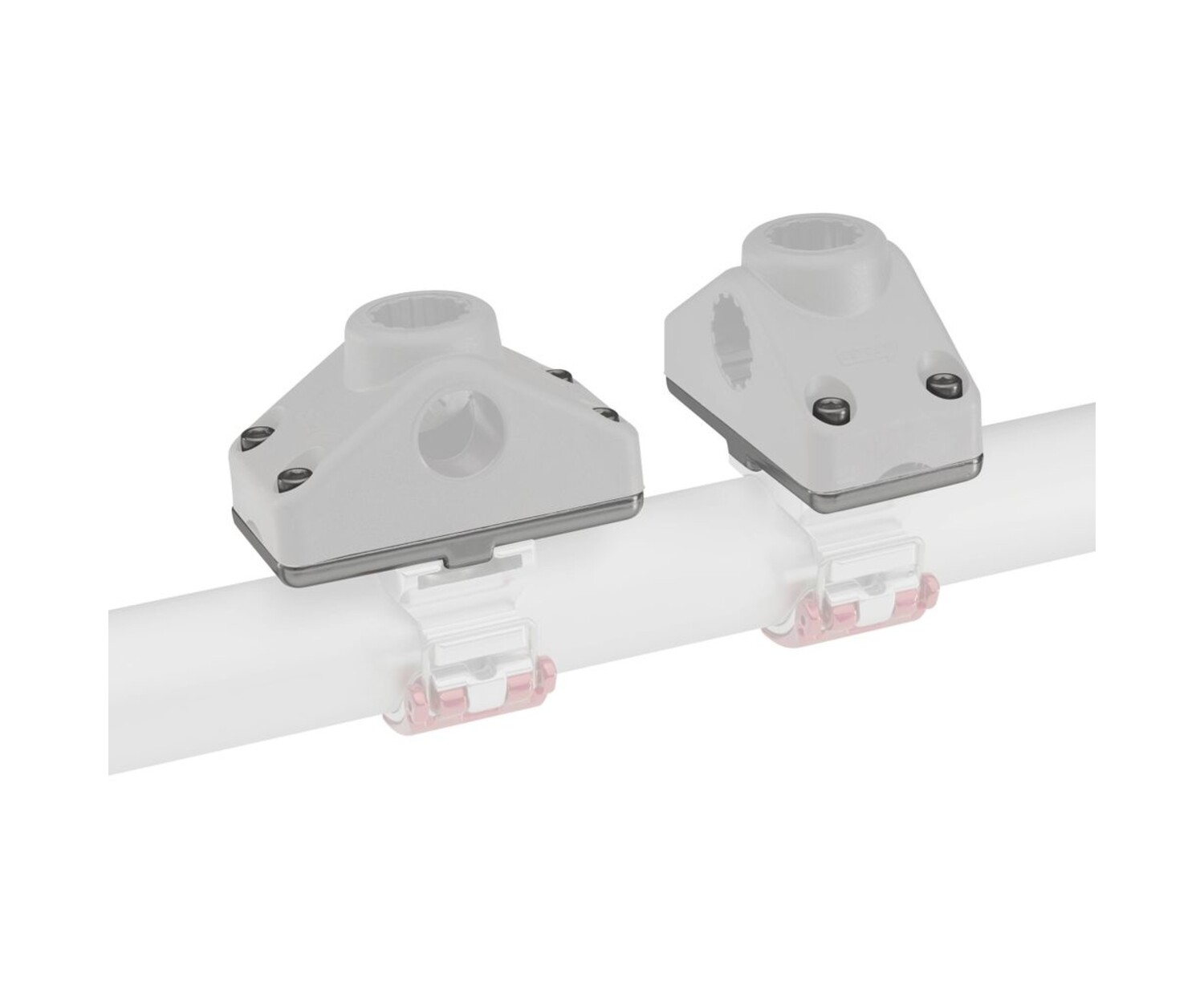

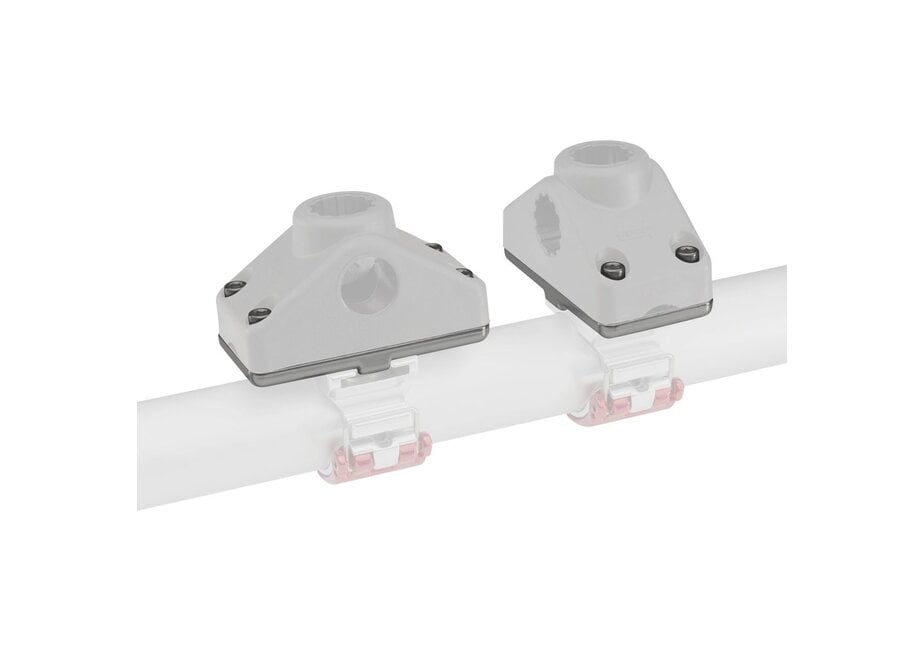

  • Snap the ClampIT on our 1 5/8" frame pipe. It's easy to put on and a snap to remove and relocate.
  • You'll find you need several of them!



Weight: 4.2 oz
Material: Hot-forged 6061-T6 aluminum alloy

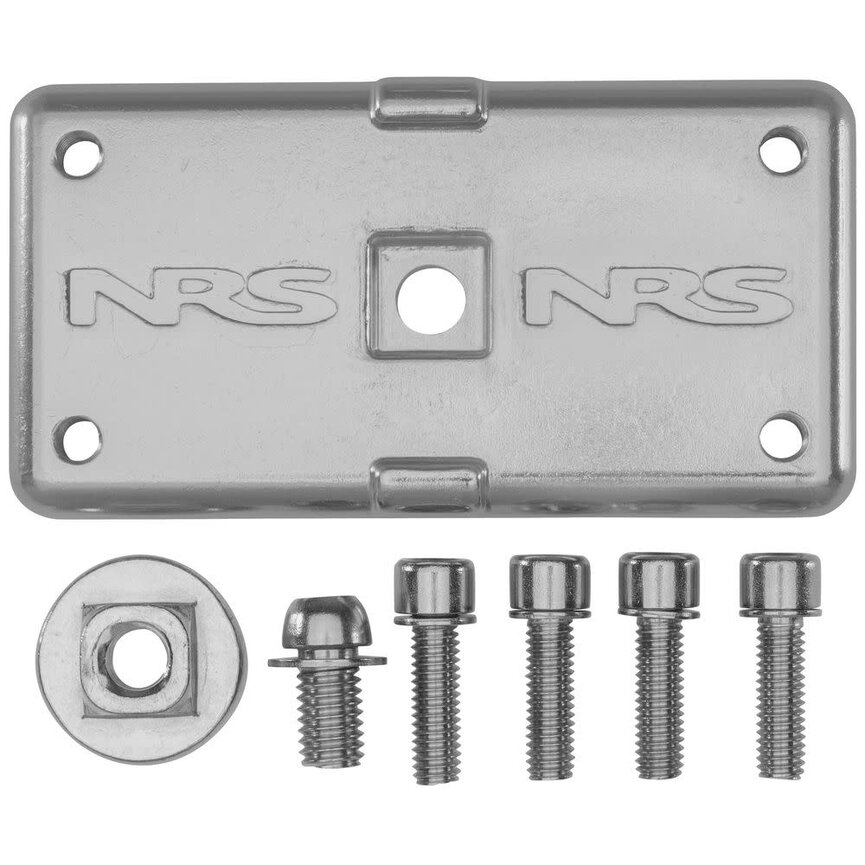

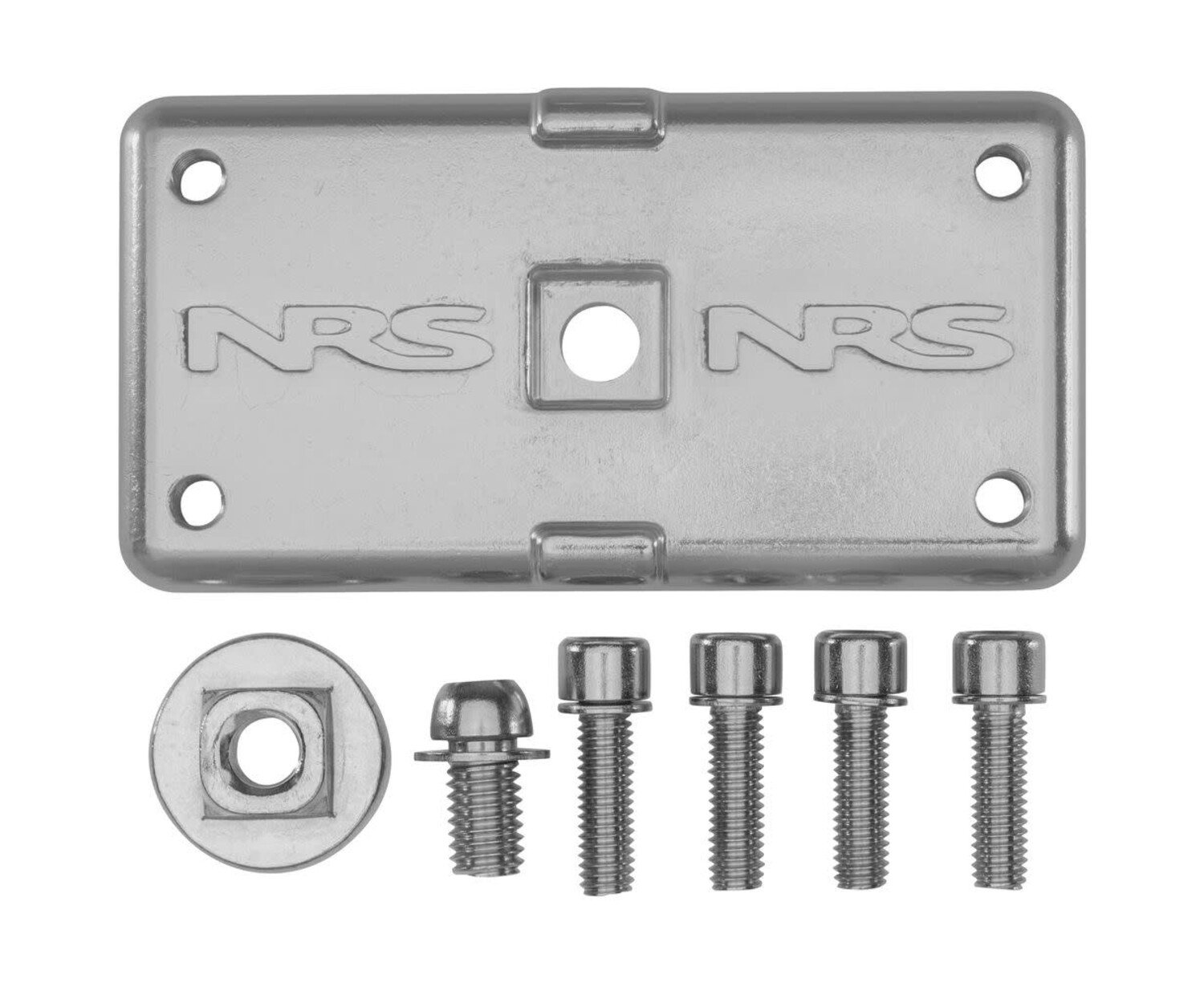

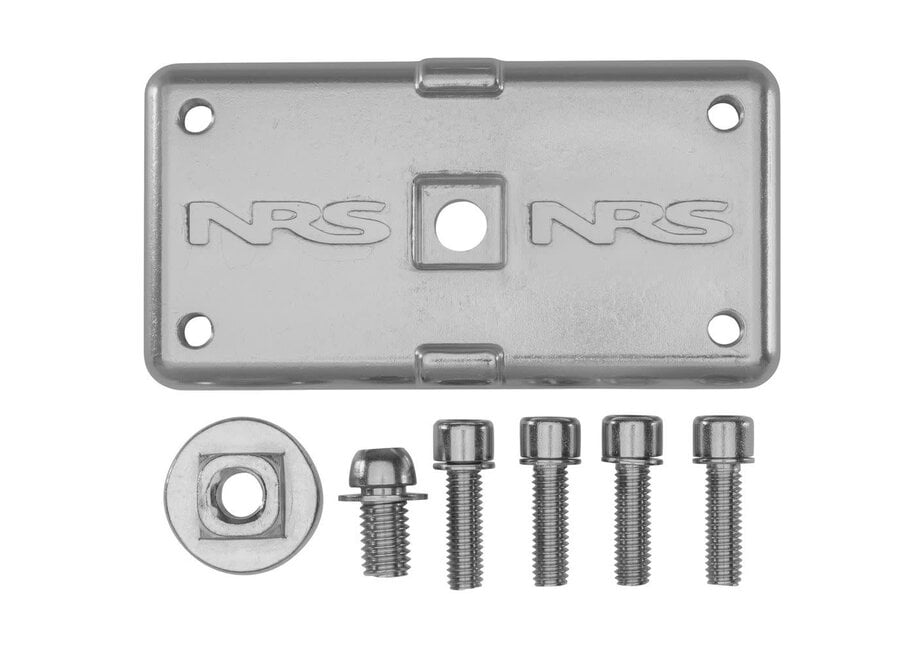

Includes:
  • Mounting plate
  • 5 bolts
  • 1 Round metal piece
Features:
  • Stainless steel hardware
Notes: Mounting hole pattern is 1 3/8" x 3 1/4"
