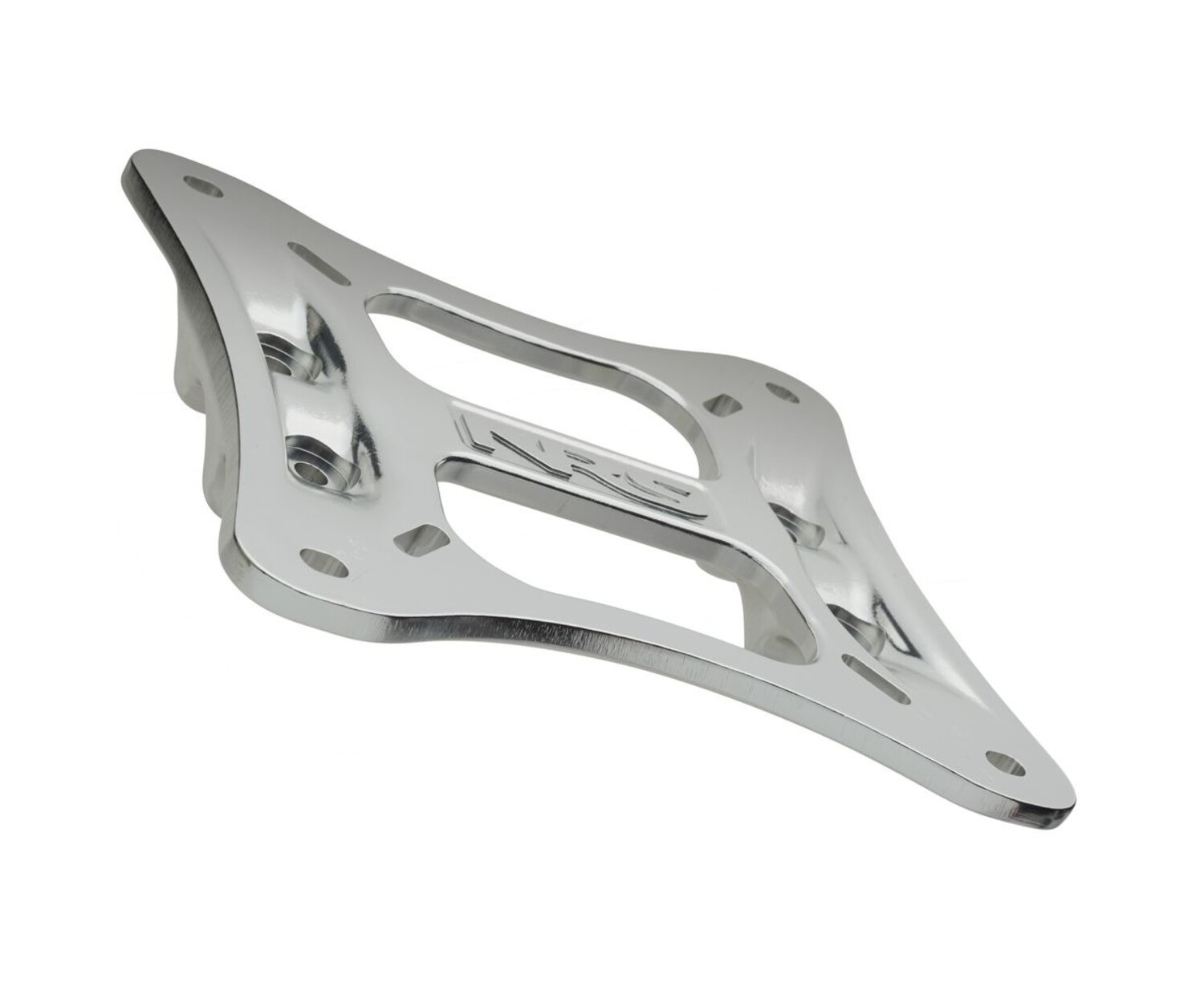

NRS Universal Seat Mount
$84.95
Availability:
Out of Stock
Check Other Locations Availability
Available in store

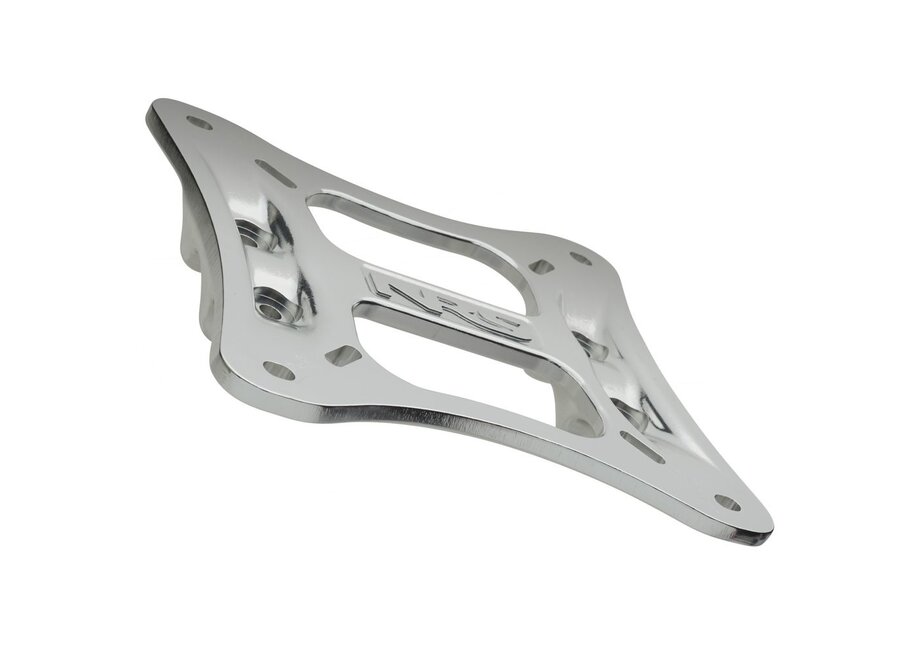

CloseThe NRS Universal Seat Mount lets you attach a standard or swiveling NRS Padded Seat to any NRS raft frame crossbar (item #90003.02) or other 1 5/8" diameter pipe.
The NRS Universal Seat Mount lets you attach a standard or swiveling NRS Padded Seat to any NRS raft frame crossbar (item #90003.02) or other 1 5/8" diameter pipe.
- Hot-forged aluminum construction aligns the crystalline structure of the metal, creating a super strong piece that is also lightweight.

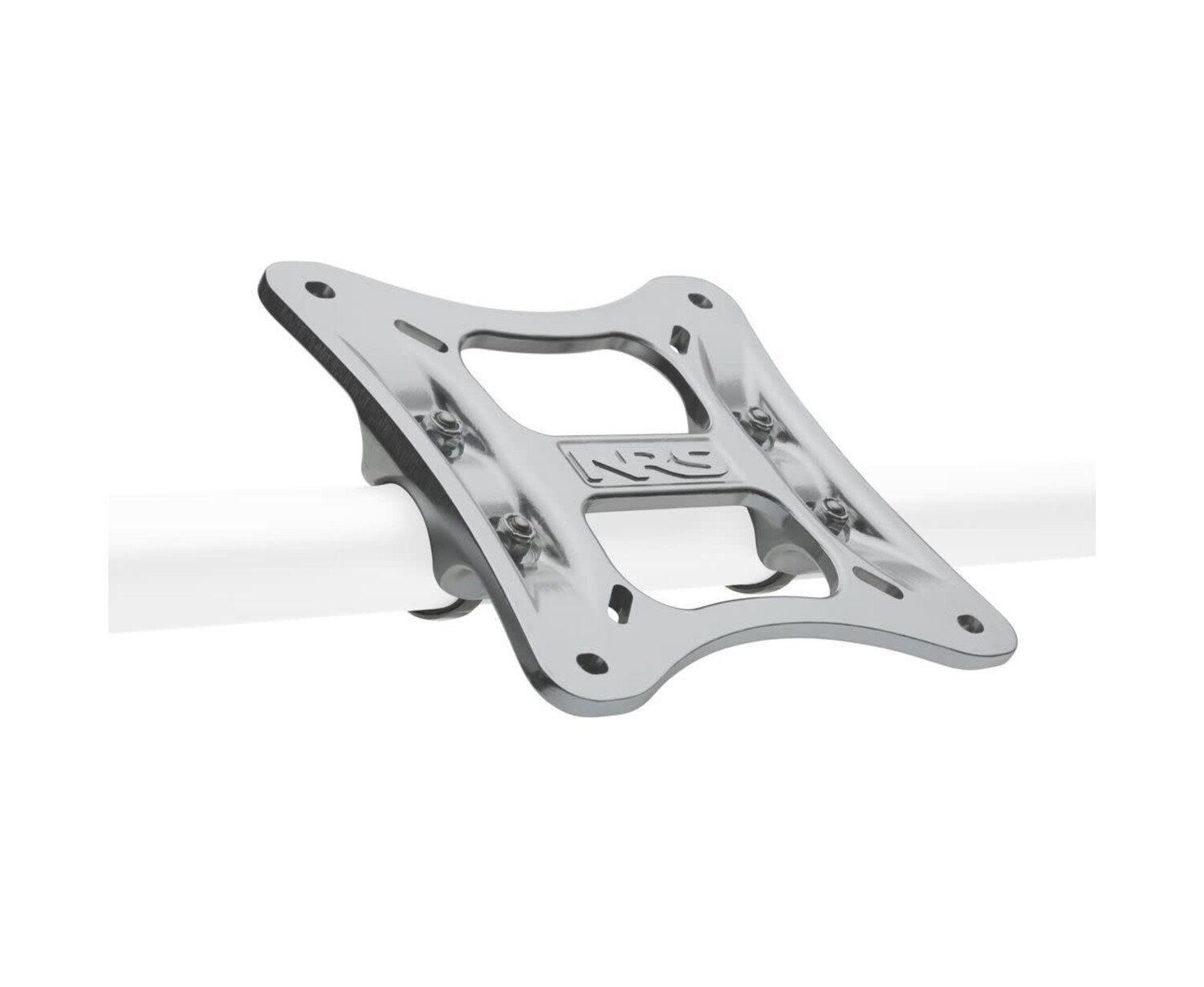

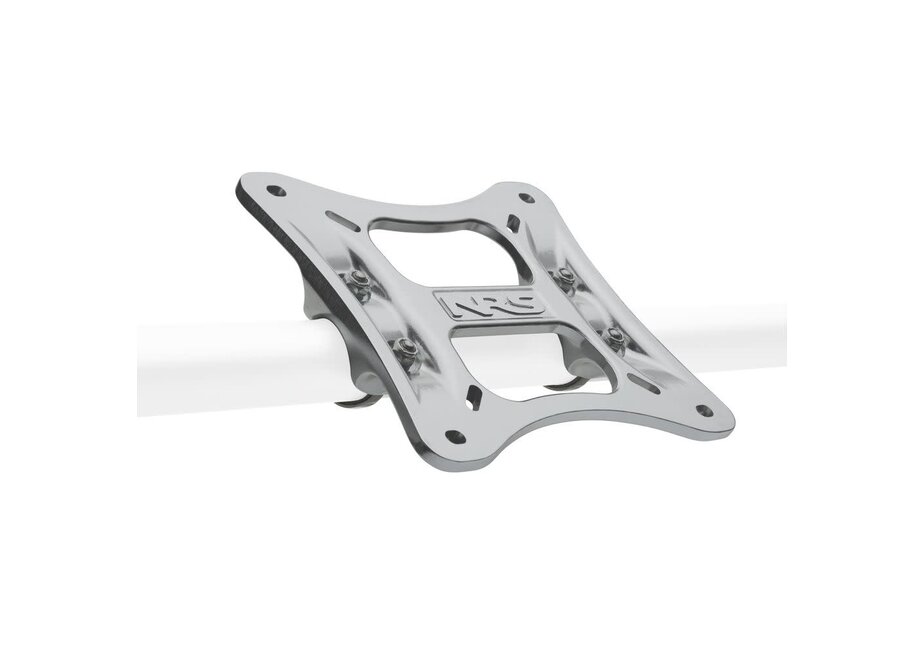

- U-bolt attachment system lets you position your seat where you want it and adjust the angle.

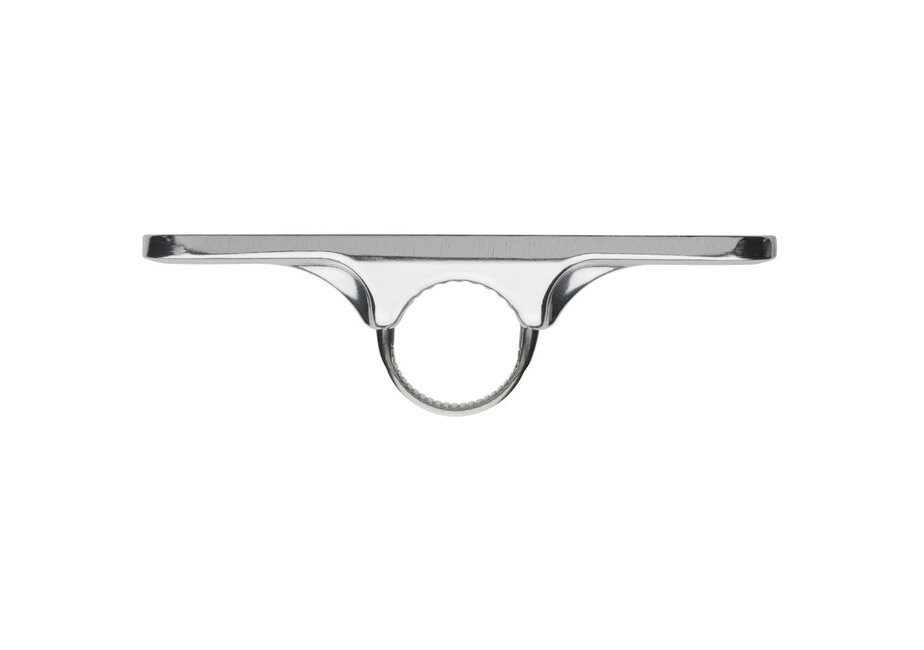

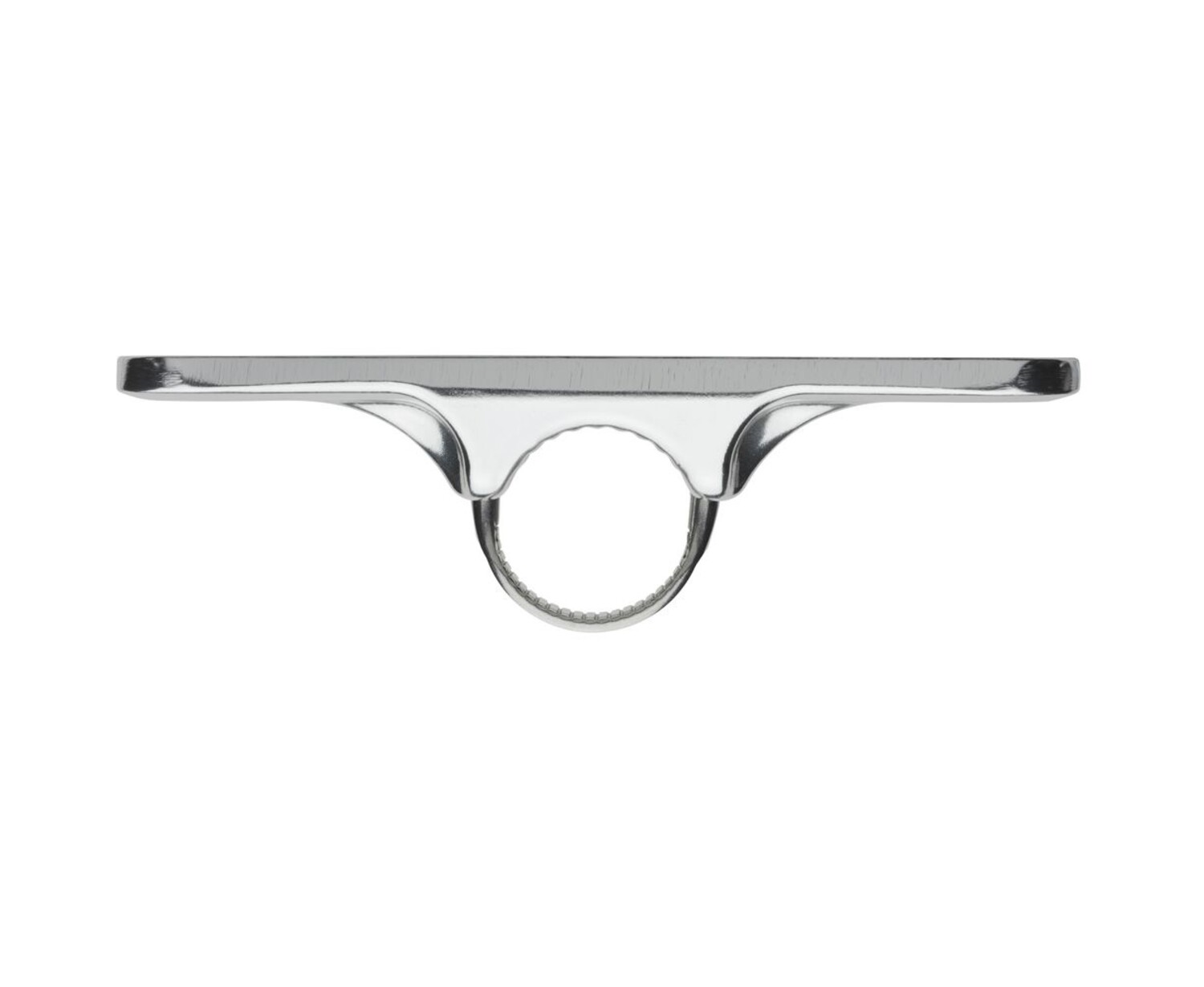

- Molded ridges on the gripping surfaces provide excellent holding strength.

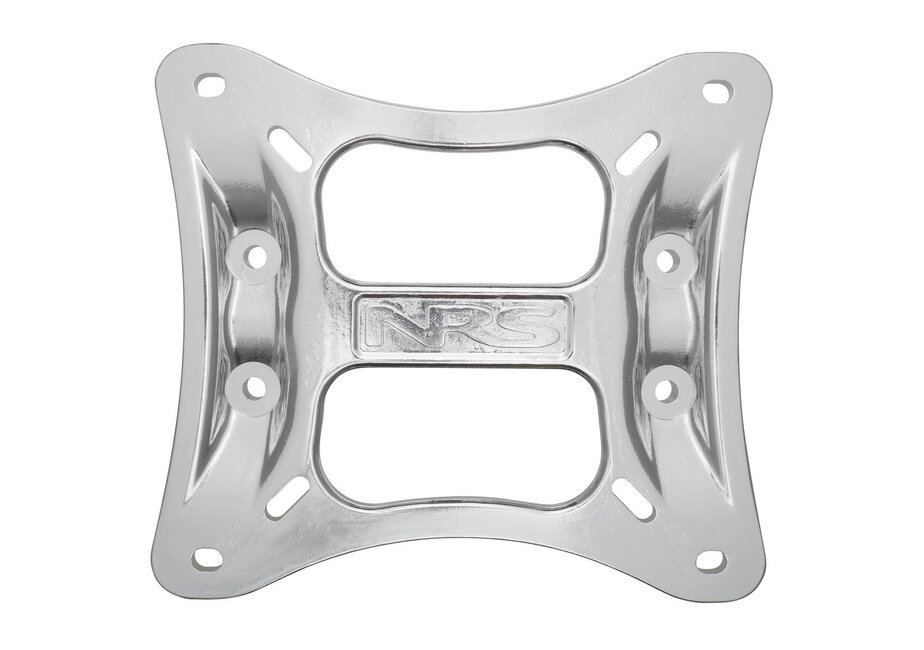

- Universal bolt holes accept NRS standard or swiveling seats.

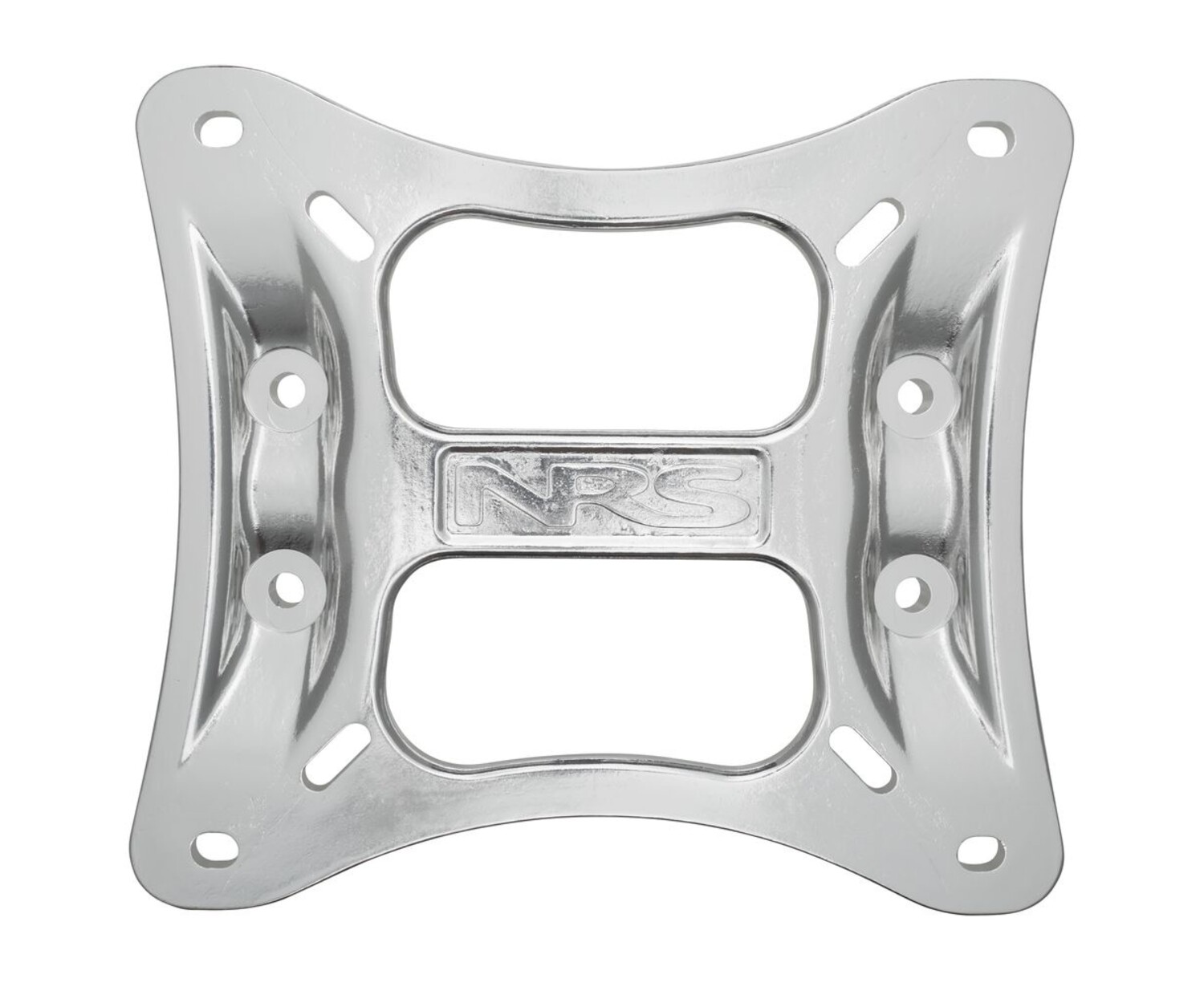

- There are two sets of bolt holes. The outer set, 7" x 7.5", match with our padded raft seats. The inner set has elongated holes that accommodate seat bolt patterns of 4 3/4"-5 1/2" x 4 3/4"-5 1/2".
- Includes two coined (flattened curve) U-bolts, four washers and four nylon lock nuts.
Product Tips
- When installing seat bolts, thread all four of them in loosely by hand before tightening any of them with a wrench. This will prevent cross threading. Tighten seat bolts until lock washers are fully compressed. Do not over-tighten the bolts; that can strip out the seat's inner connector.

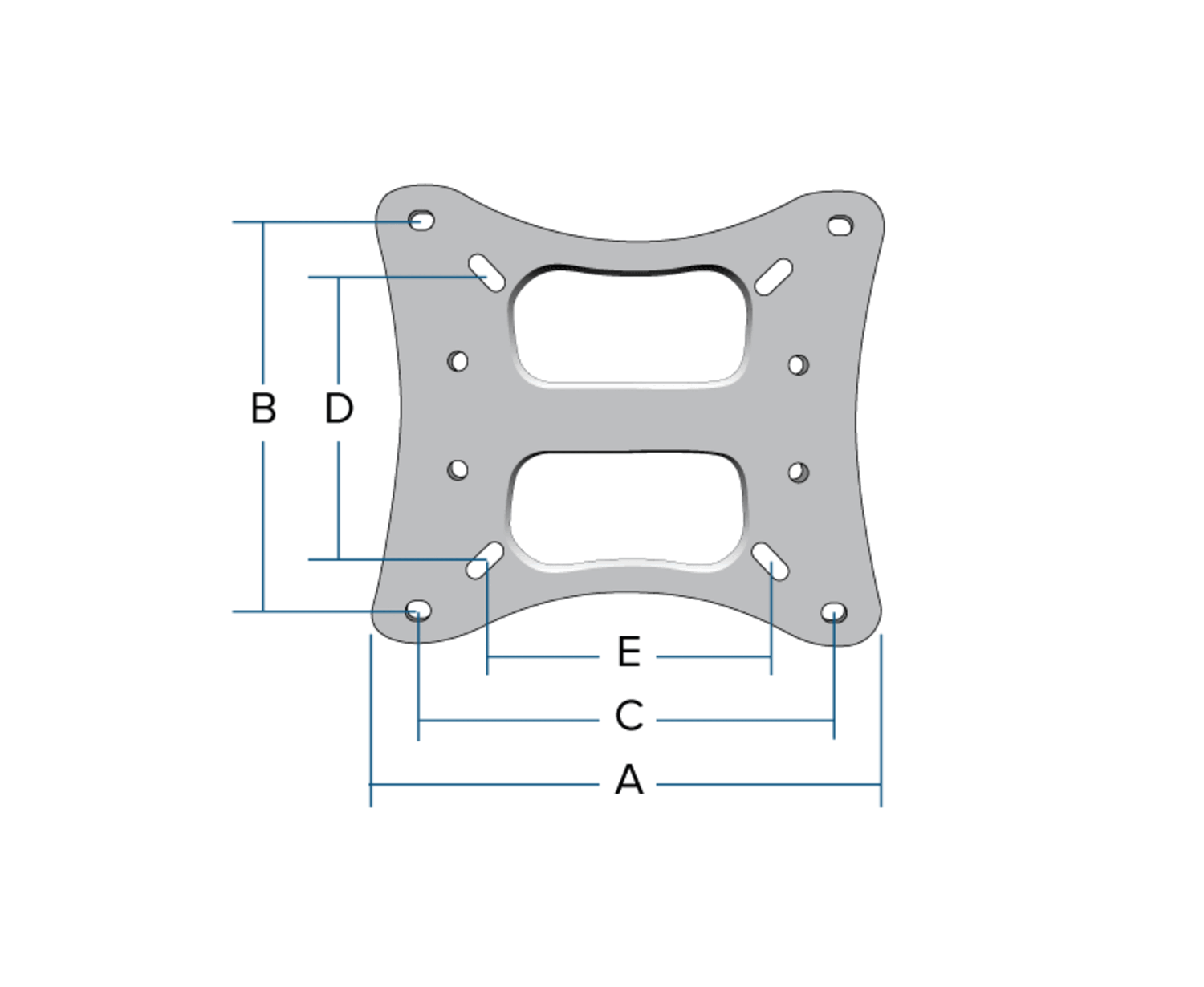

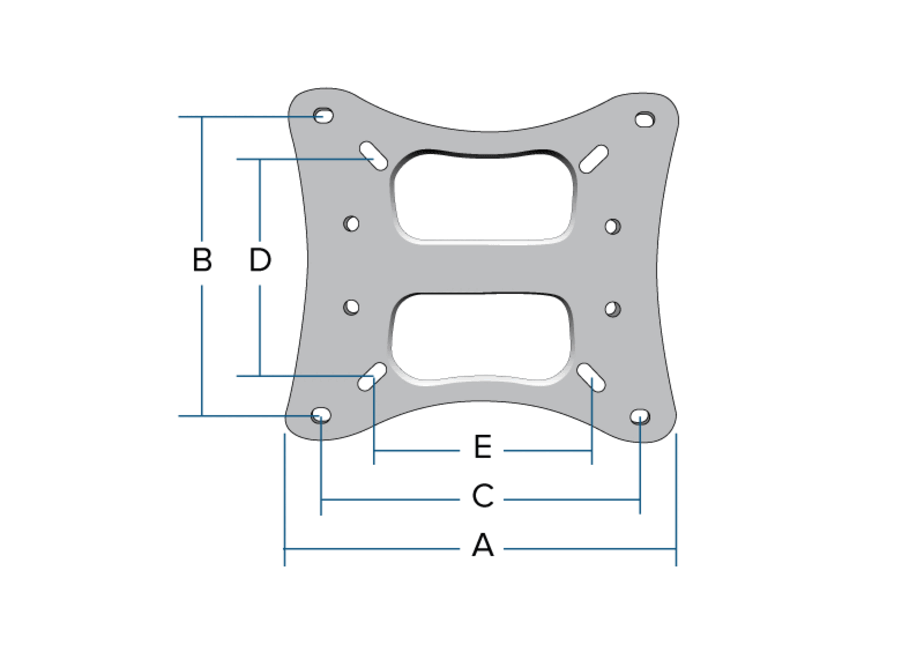

| A | B | C | D | E |
|---|---|---|---|---|
| 9 1/8" | 7" | 7 1/2" | 4 3/4" - 5 1/2" | 4 3/4" - 5 1/2" |
| Weight: | 2.25 lbs. |
|---|---|
| Material: | Hot-forged 6061-T6 aluminum alloy |
| Included Components: |
|
| Features: |
|
