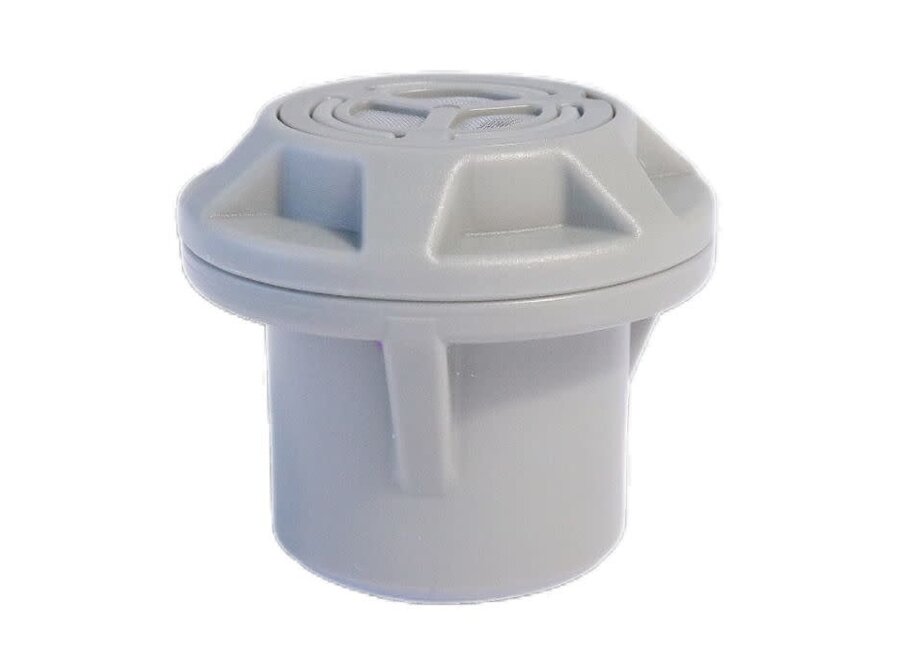

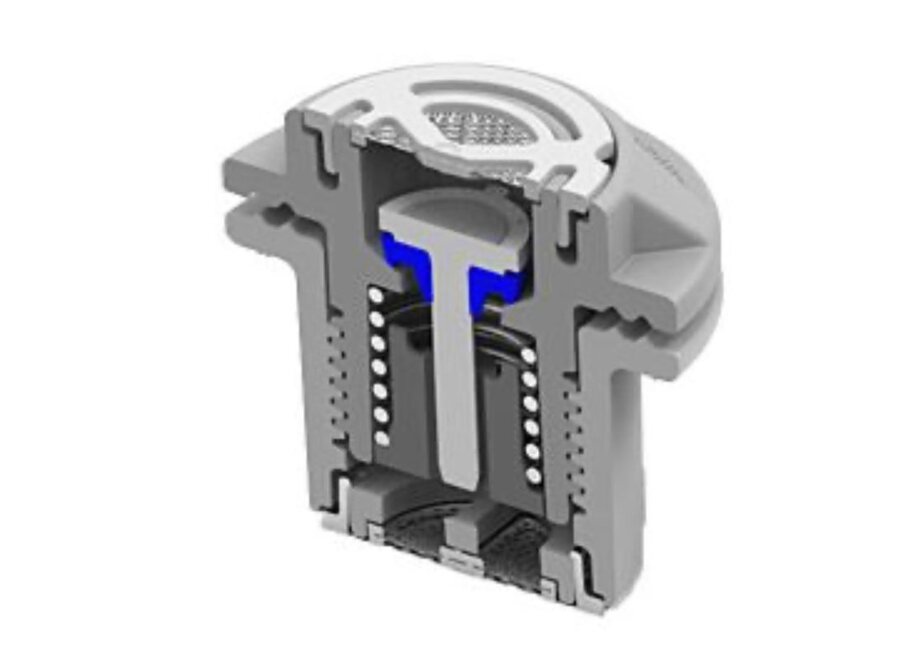

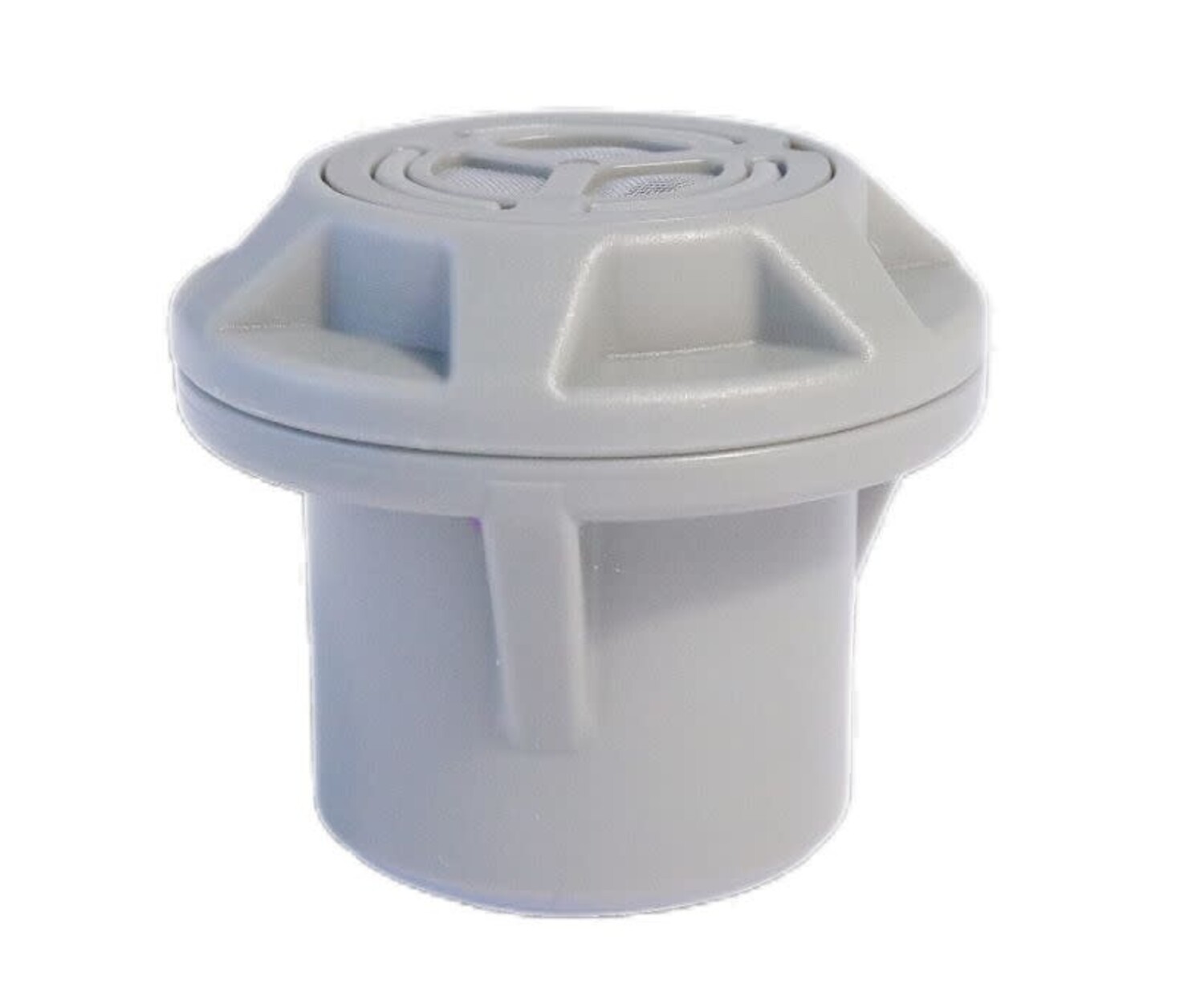

The A9 is a compact and robust Pressure Relief Valve perfect for uses where reliability and smaller size are critical. The design makes it suitable for a wide range of high-pressure applications, such as paddle boards, leisure, military or commercial inflatable boats that use drop stitch fabric.

Description

• High quality materials are used in the A9

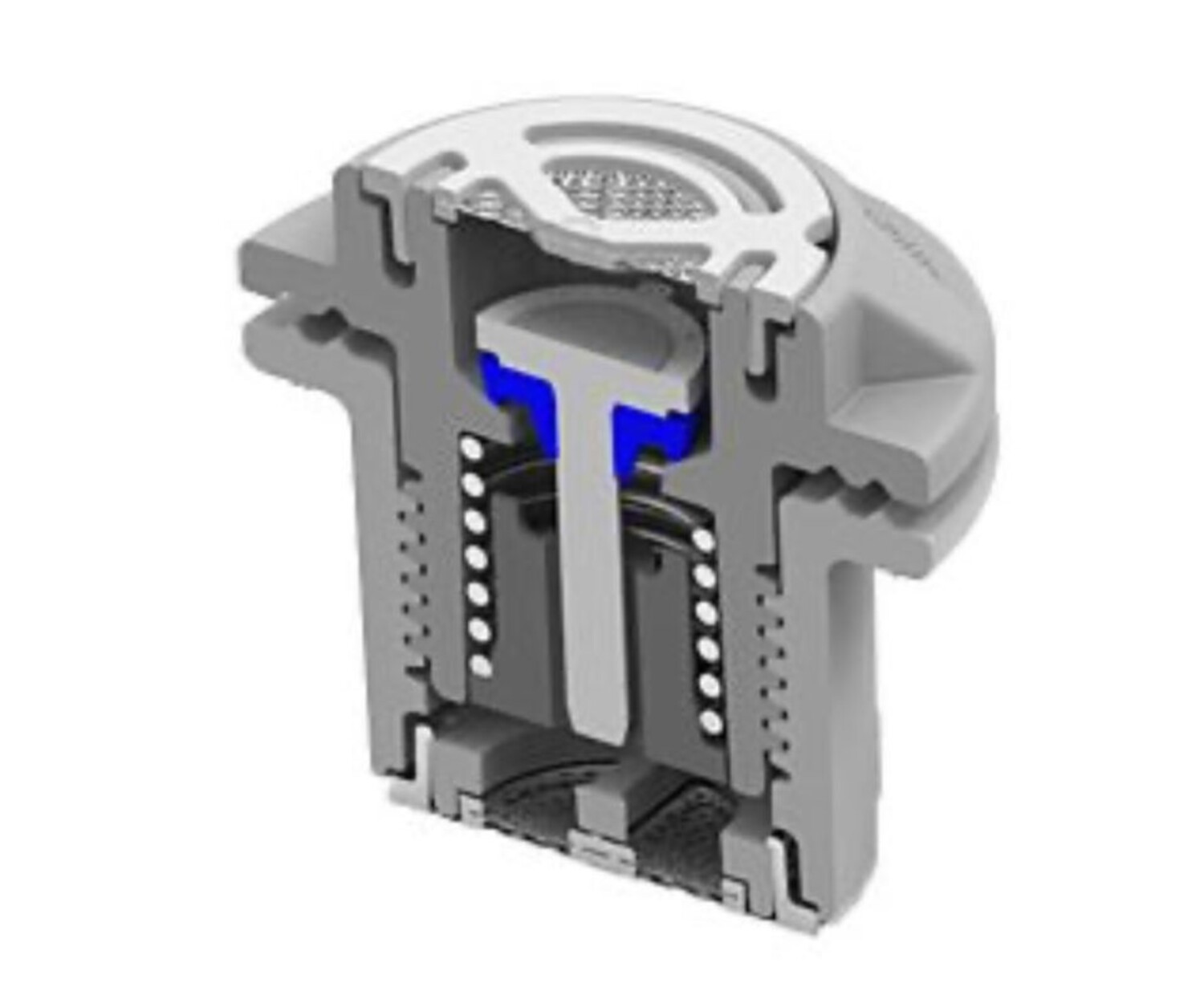

• Impact and UV resistant acetal body, stainless steel spring and silicon seal to ensure a long life in tough conditions
• It can also be used in a range of different products and fabrics e.g. inflatable tents, inflatable walls, lifting bags, and crash barriers.

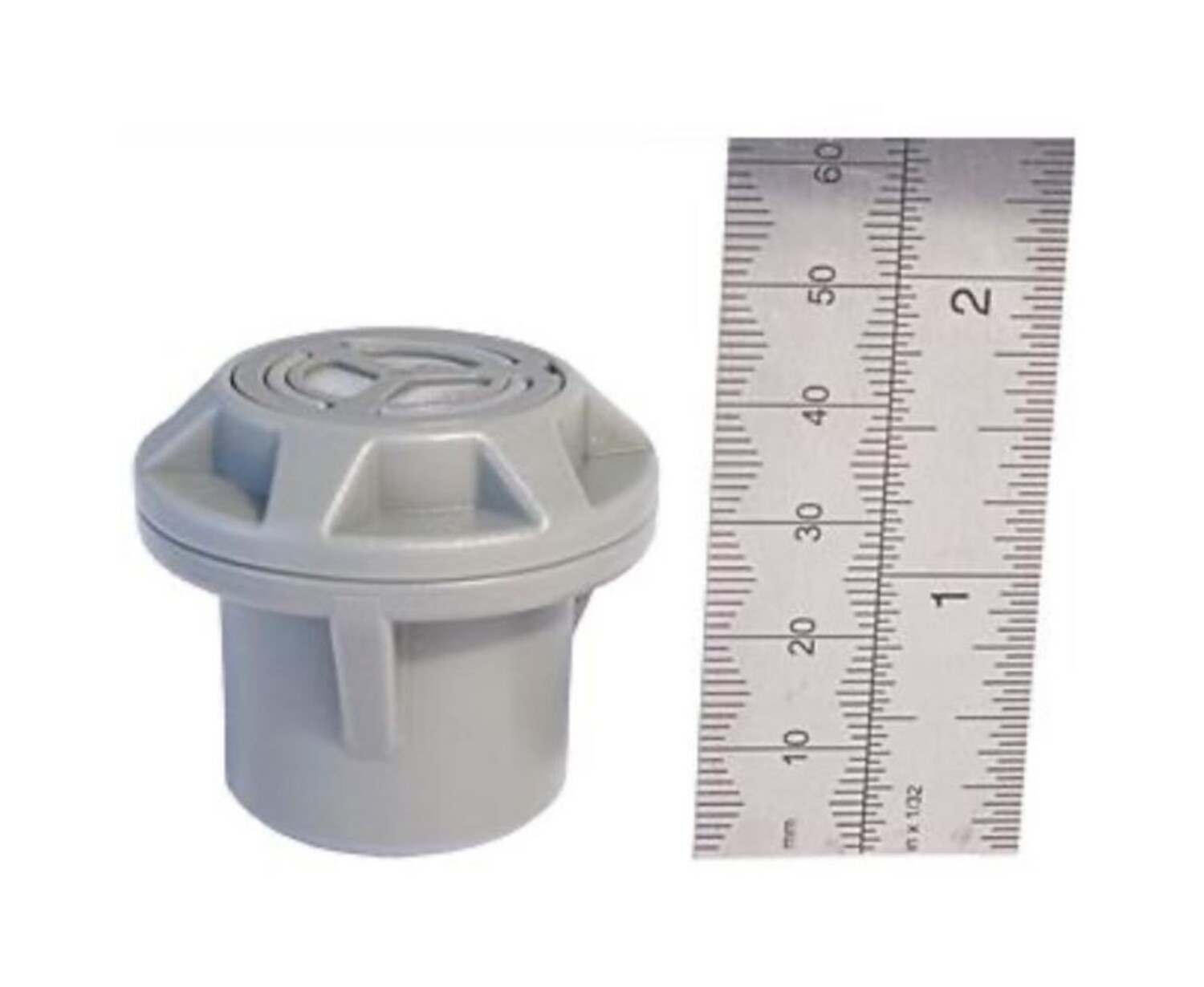

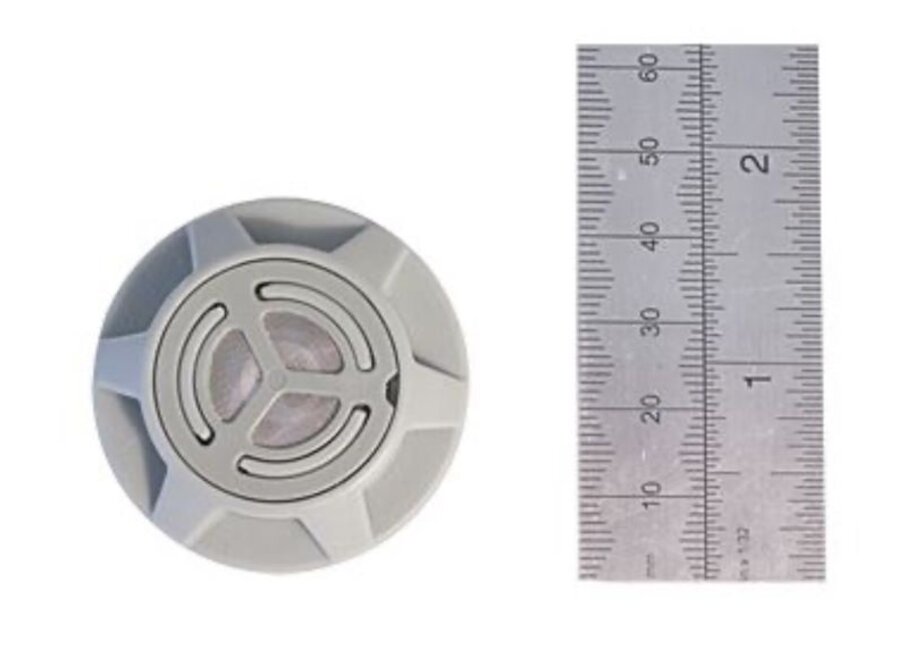

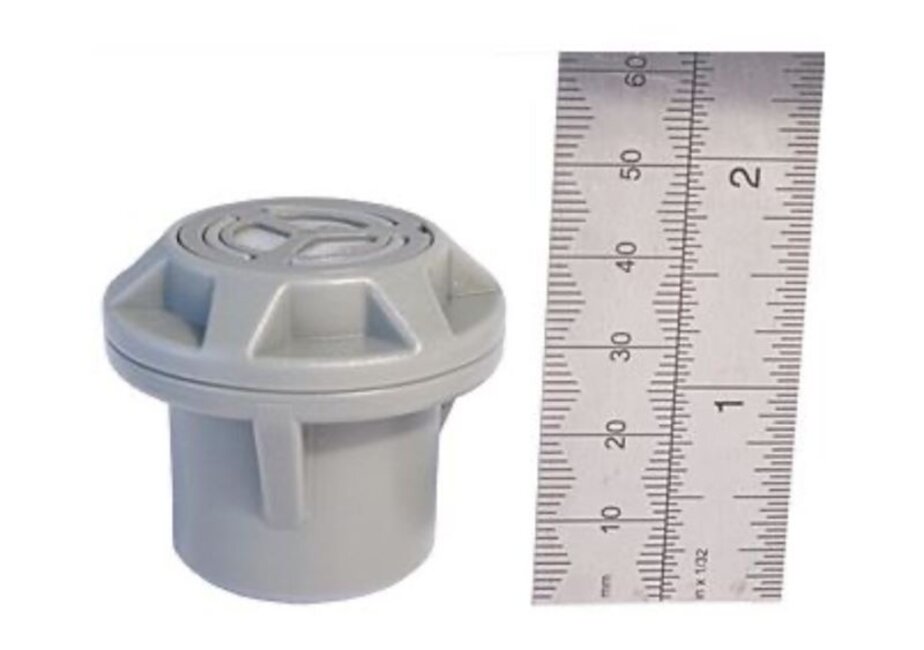

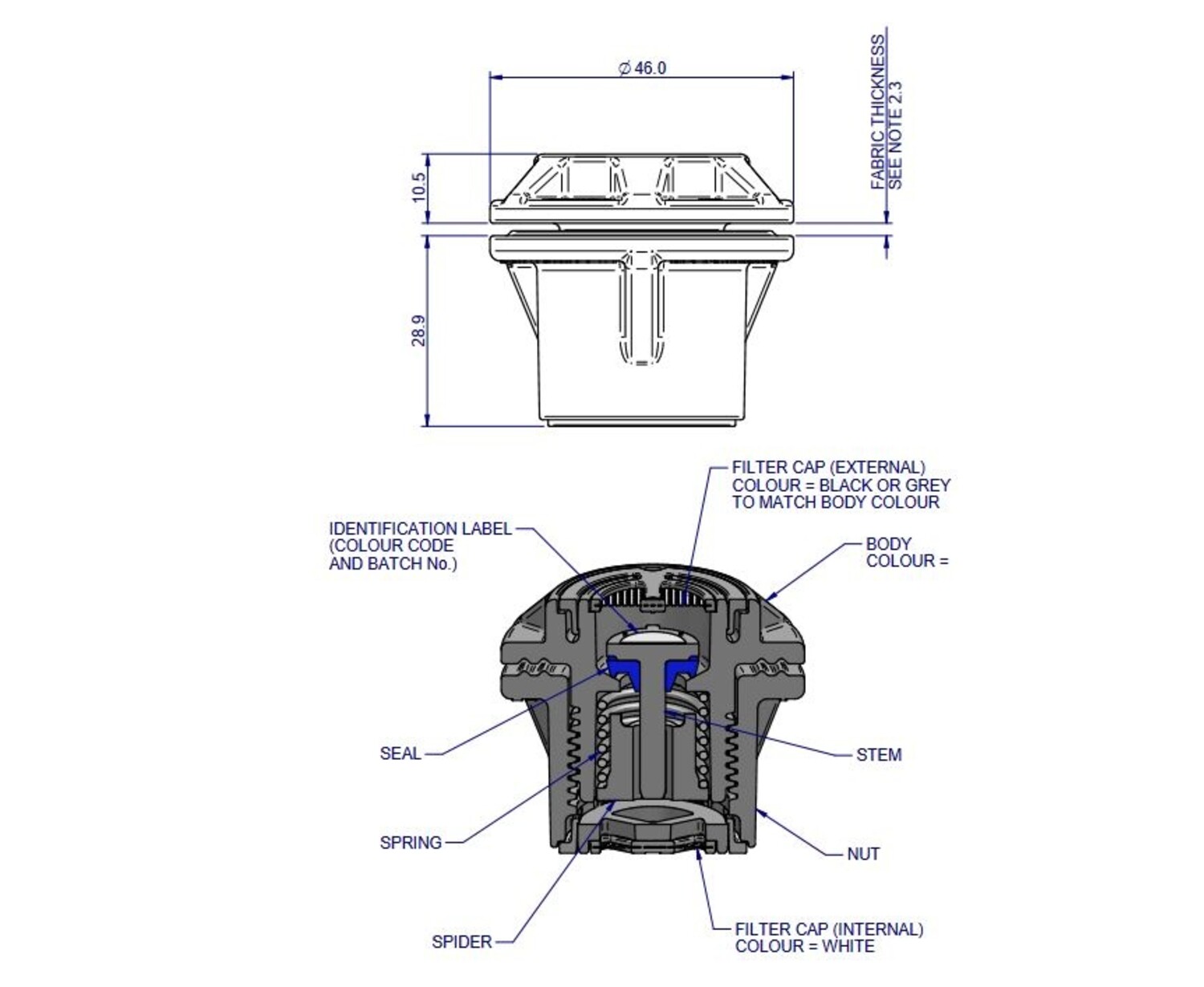

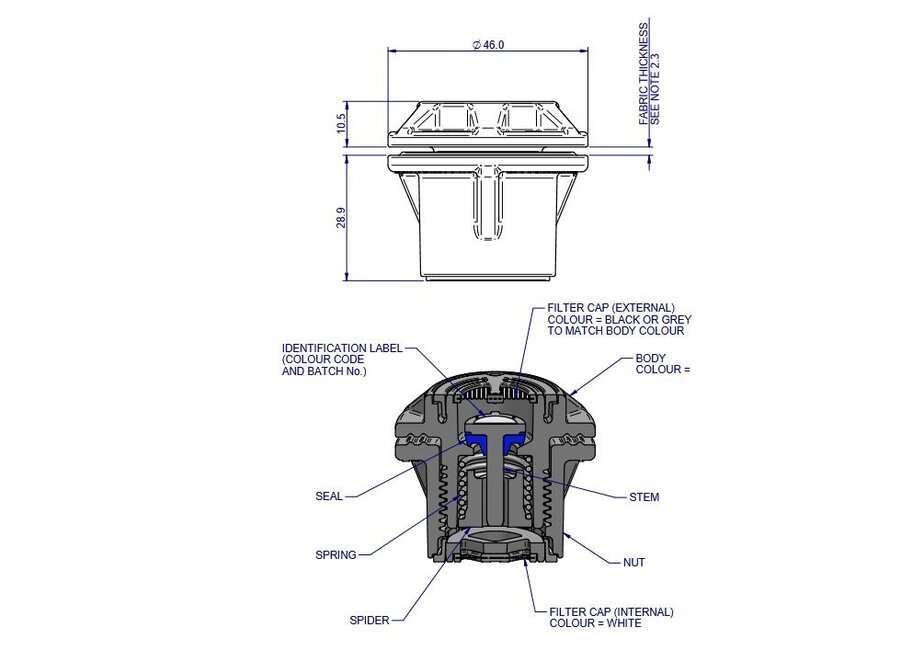

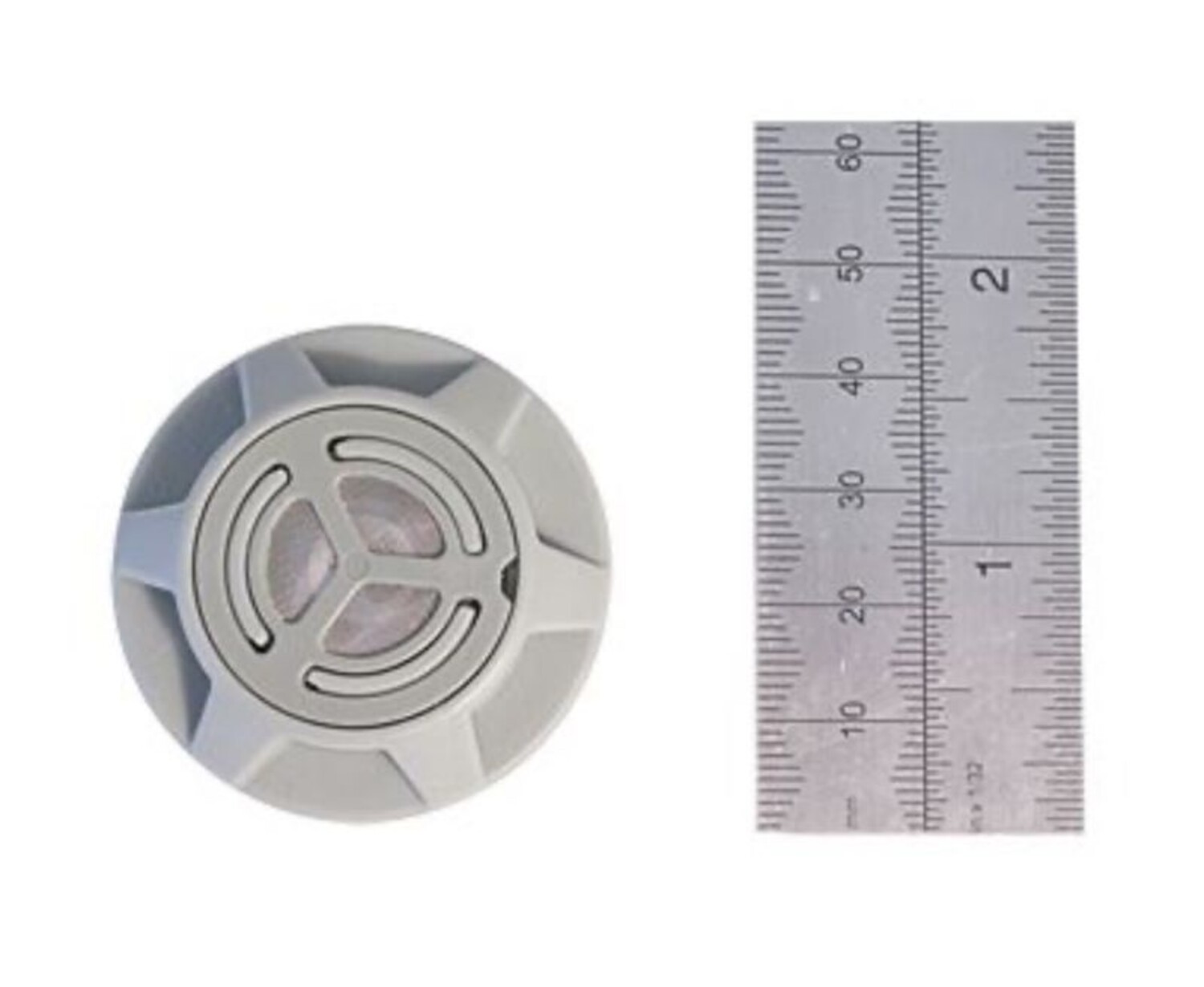

• Compact size – 46mm diameter
• Designed for use with drop stitch fabrics up to 45psi

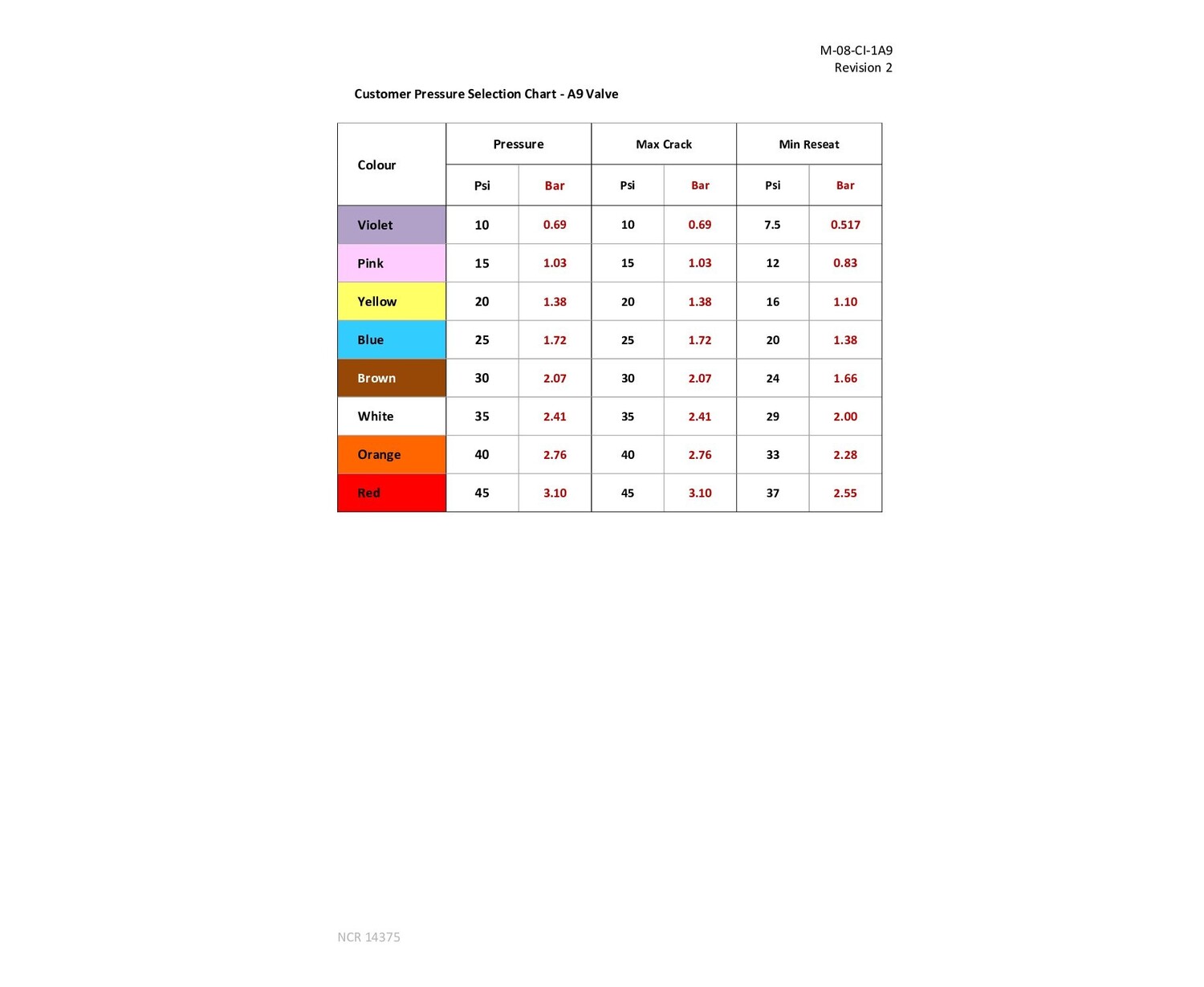

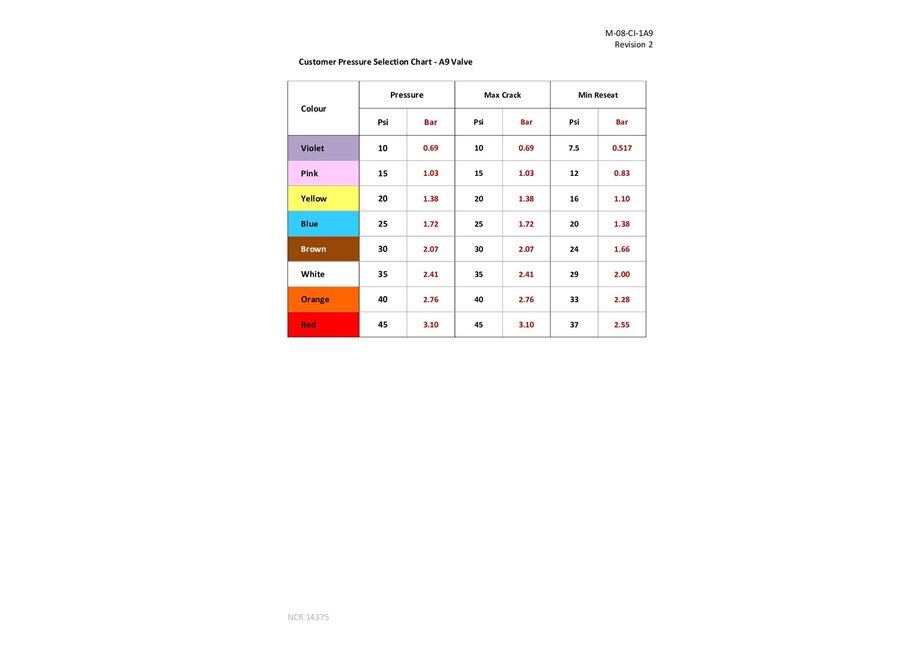

• A wide range of pressure settings from 10 to 45 psi (see selection chart)

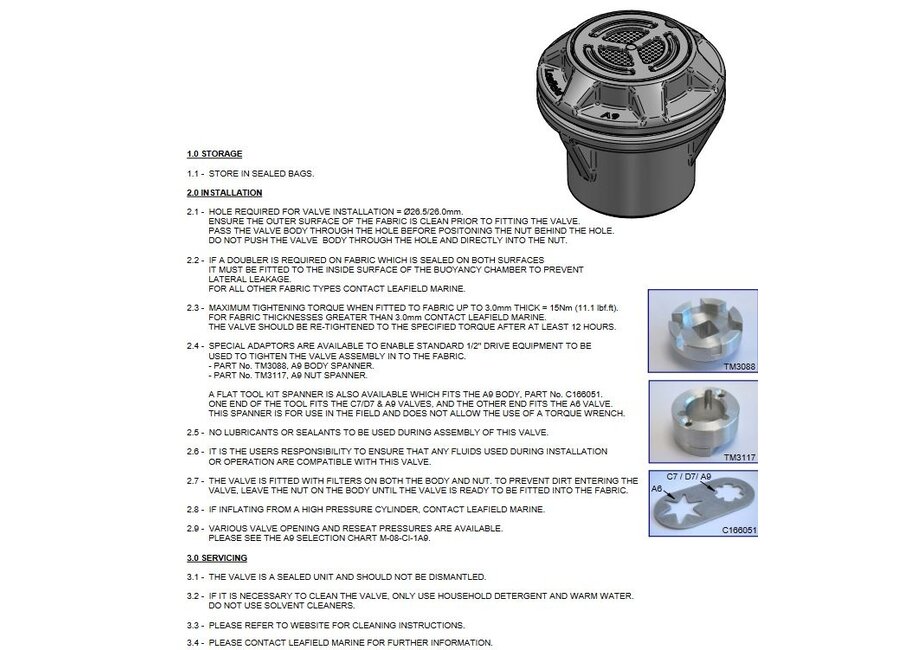

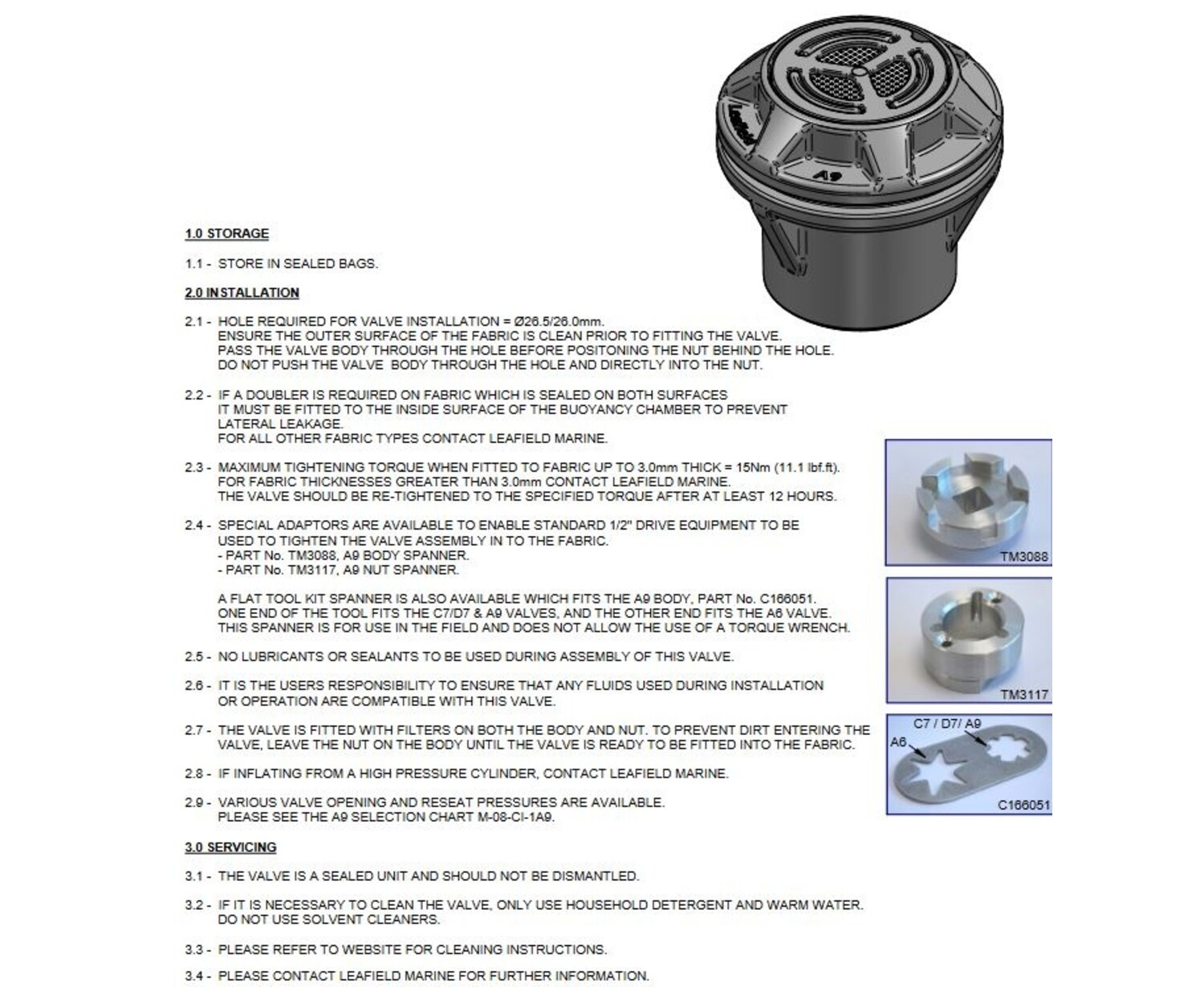

• Fast installation with clamp fitting – No welding or adhesive required
• Internal and external filters to stop drop stitch threads, sand and debris causing leaks
• –30ºC to +65 ºC operating temperature
• 100% tested for opening and closing pressures
• No routine maintenance required
