Gunnison 3-Bay Diamond Plate Frame XD

Gunnison 3-Bay Diamond Plate Frame XD

Gunnison 3-Bay Diamond Plate Frame XD


Write a Review
$1,499.00
Availability: Out of Stock
Check Other Locations Availability

Available in store

Close
Built for rugged river adventures, the Down River Gunnison 3-Bay Diamond Plate Frame XD offers unmatched durability, gear storage, and modular versatility. Ideal for serious oarsman seeking premium performance and customization.
+
Add to Wishlist
Boat Frame Fit (BFF)
  • HYSIDE Outfitter 14.0
  • Outfitter 14.0XT

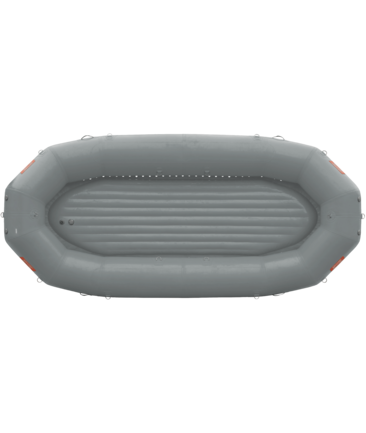

  • Pro 15.0

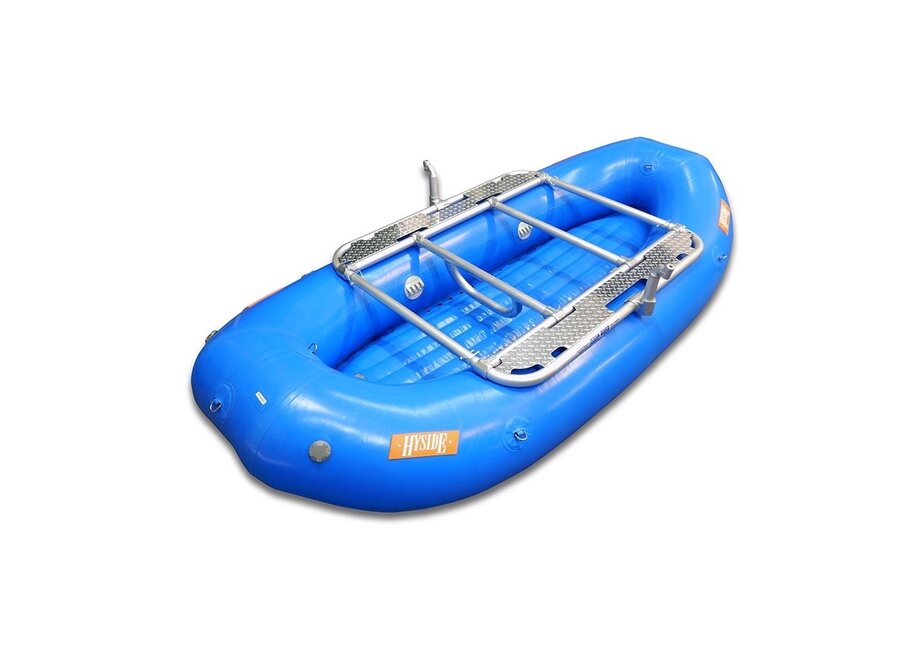

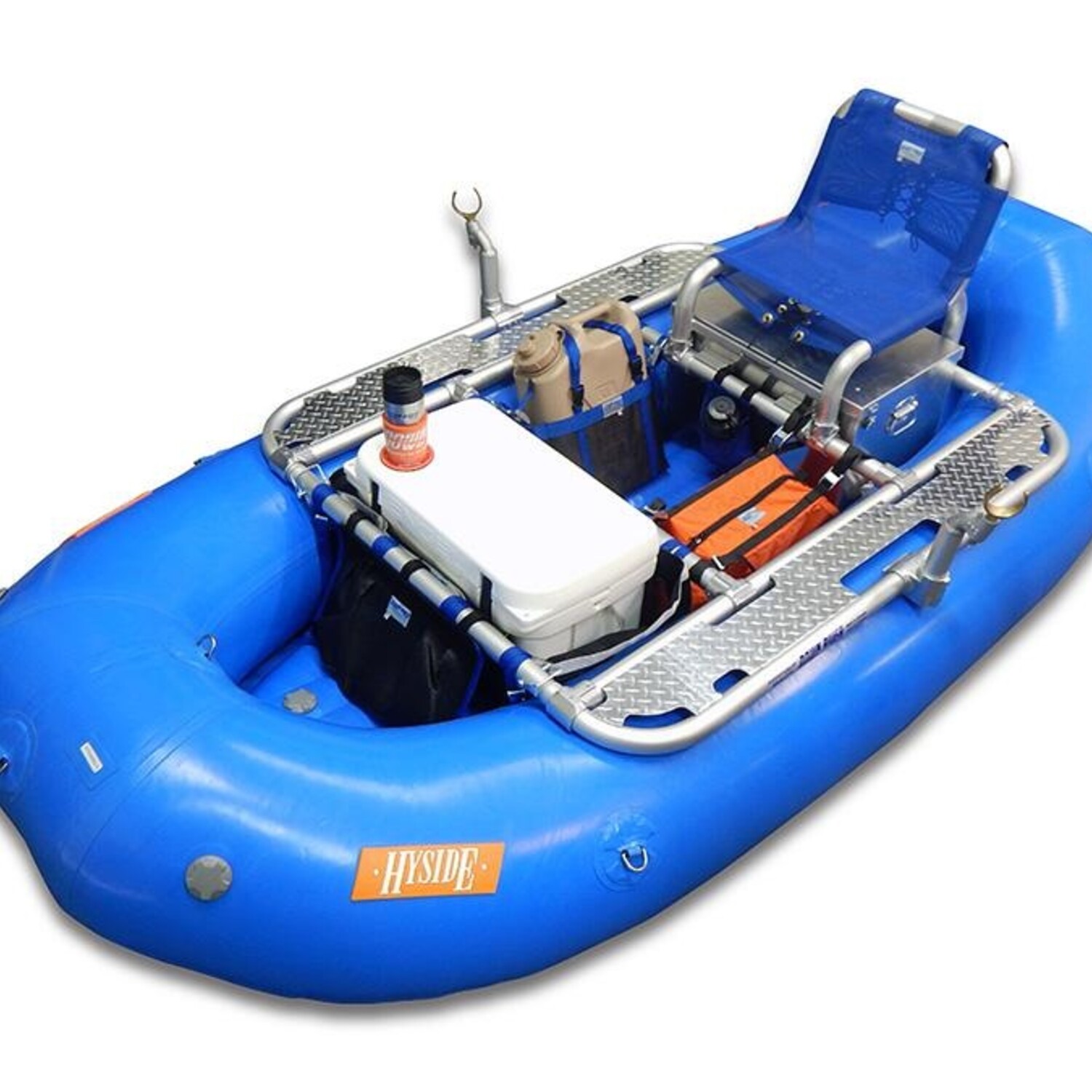

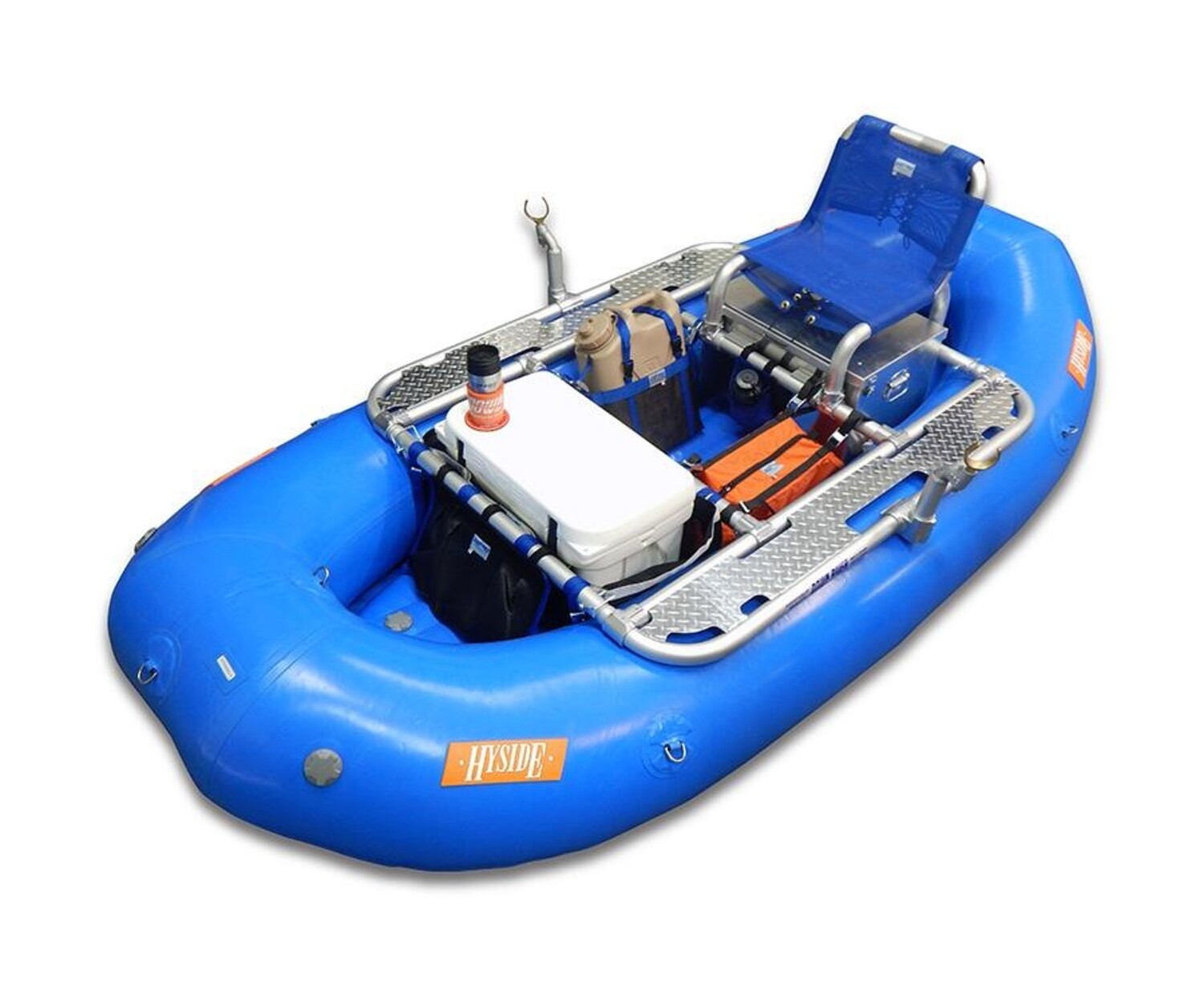

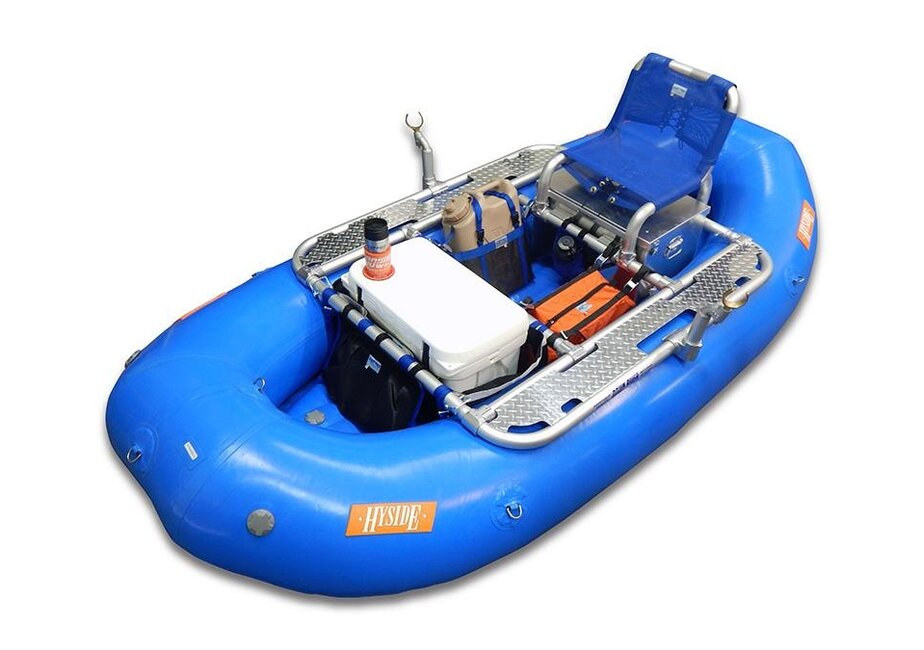

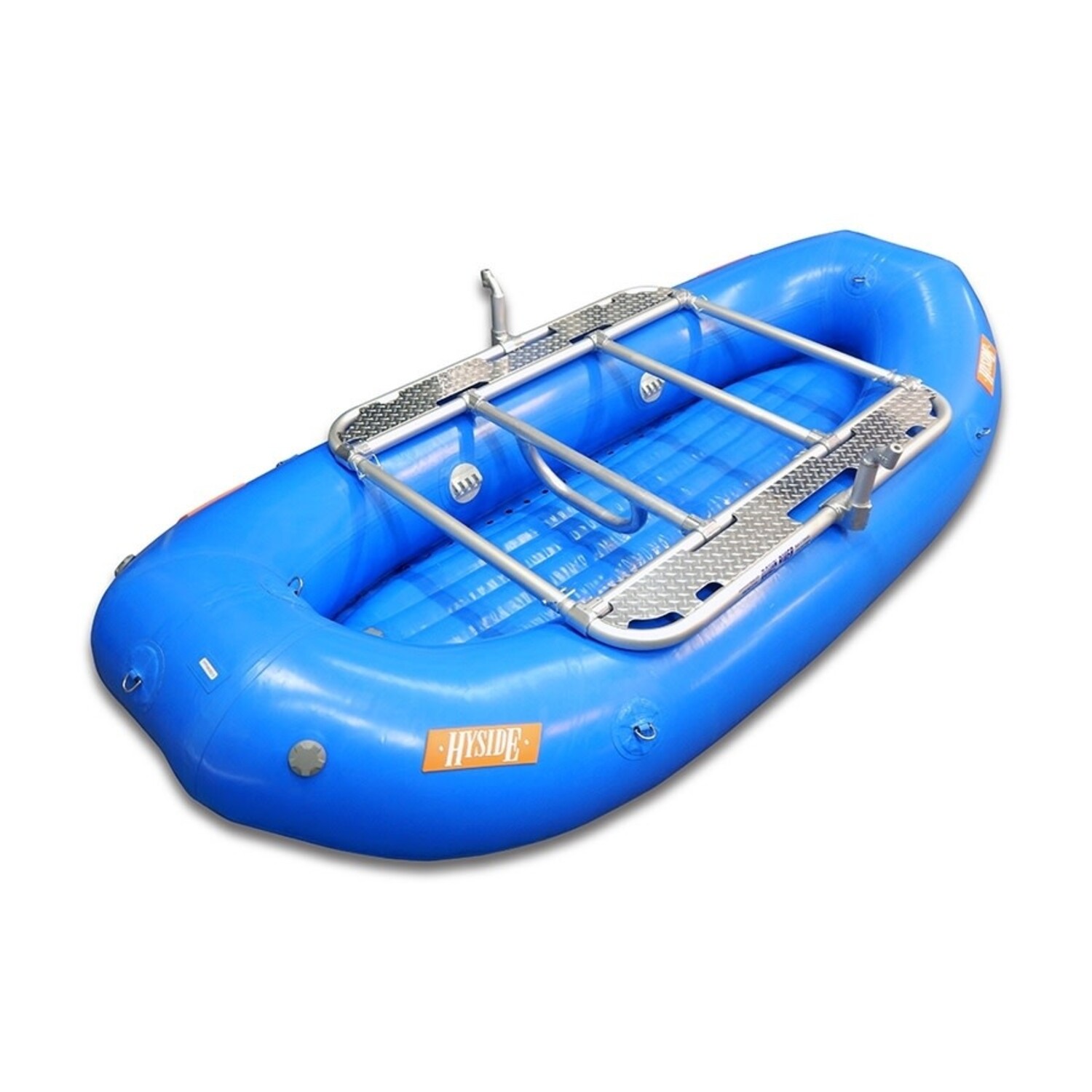

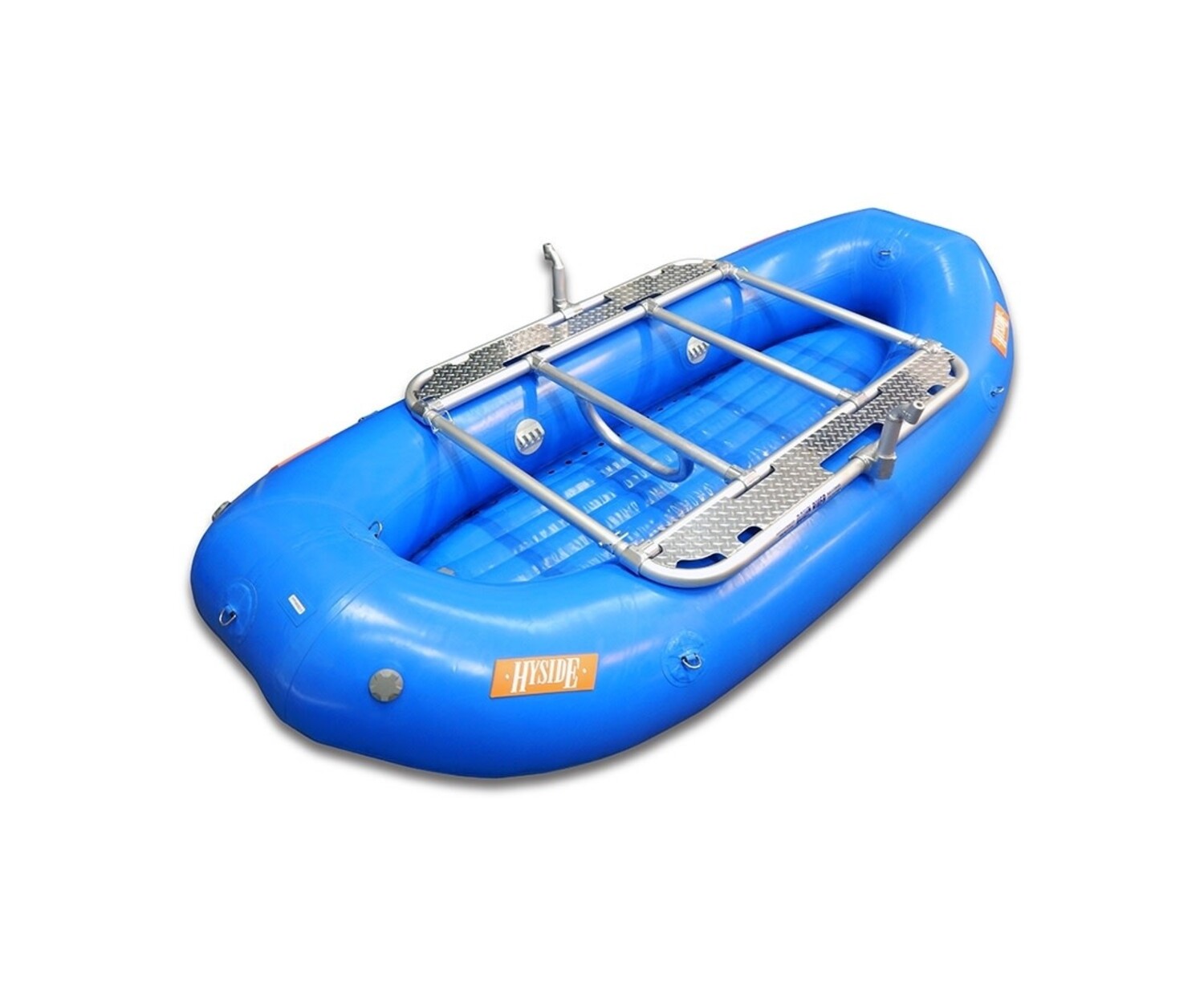

The Down River Gunnison 3-Bay Diamond Plate Frame XD has all the storage capacity and adjustability of its custom counterpart, the Dolores 3-Bay Diamond Plate frame. The Gunnison version is built specifically to fit most 13ft rafts. The diamond plate decking provides a non-slip waking surface and makes a great place to stow hard gear like ammo cans or water jugs. The Down River Gunnison 3-Bay Diamond Plate Frame XD can carry a large dry box and cooler or cooler and poly deck bench seating. This frame can take you through the biggest whitewater in style and easily breaks down into six pieces for storage, portage or transportation. Includes oar towers and kick bar. (Frame pictured with additional accessories)

The Gunnison series has all the same components used for custom Down River frames, but without the customized production time associated with our made-to-order frames.

SPECS

  • XD Pipe 1.5in (O.D. 1.9in; I.D. 1.620in) 6063 T6 Schedule 40 (.135in) Anodized Aluminum Alloy
  • Fittings Hollaender Al-Mag 535 fittings (physical strength characteristics comparable to malleable iron at one-third the weight)
  • Diamond Plate Treadbrite 1/8in (3/16in w/ Diamond Tread) 6061 Aluminum Alloy
  • The cross bars are set at our factory with the following bay dimensions from front to back; 20", 20" (rowers foot well) and 18.5". Each cross bar has 7" of adjust-ability fore/aft, so you can fine tune your bay dimensions as needed.
  • Standard 13ft Raft 66in L x 64in W Interior Width 35-37in, tube diameter 18-19in - Hyside Outfitter 13, Aire 126DD, NRS Otter 130, RMR 13, and more
