Built tough to work hard for rugged private and commercial use.
+
Add to Wishlist

SU Series

Sport utility series

Built tough to work hard for rugged private and commercial use.

SU boats are made with an additional heavy-duty layer of 840-denier nylon Achilles CSM fabric in a two-ply technique which results in a fabric even stronger than a single base fabric of equal thickness. A number of commercial grade features such as recessed valves and a full-length, protective wear patch combine to make these boats the right choice for the toughest marine uses.



SU Standard Features include:

  • Achilles CSM reinforced fabric
  • Four-layer seam construction
  • Extra durable double layer (840 denier each) nylon core fabric
  • Air keel
  • Aluminum and fiberglass floorboards and aluminum stringer system
  • Fiberglass encased transom with aluminum plate and motor pad
  • Fuel tank tie-downs
  • Heavy-duty bailer sleeve and two bailer valves
  • Extra-wide, heavy-duty full-length teardrop rubbing strake
  • Tie-down straps for paddles
  • Bow handle
  • Towing bridle D-rings
  • Lift and carry handles
  • Splash guard with life lines
  • Heavy-duty reinforced cargo wear patch all around
  • Extra tie-down D-rings
  • Heavy-duty recessed valves
  • Heavy-duty lifting points (hull and transom)
  • Two high-volume, large foot pumps
  • Maintenance kit



SU Optional Features:

  • Wood seat & paddles.



Double layer (840 denier each) nylon core fabric; reinforced with Achilles CSM Fabric and Chloroprene.






*International Orange available as special order only.

Persons operating boats alone should exercise caution.

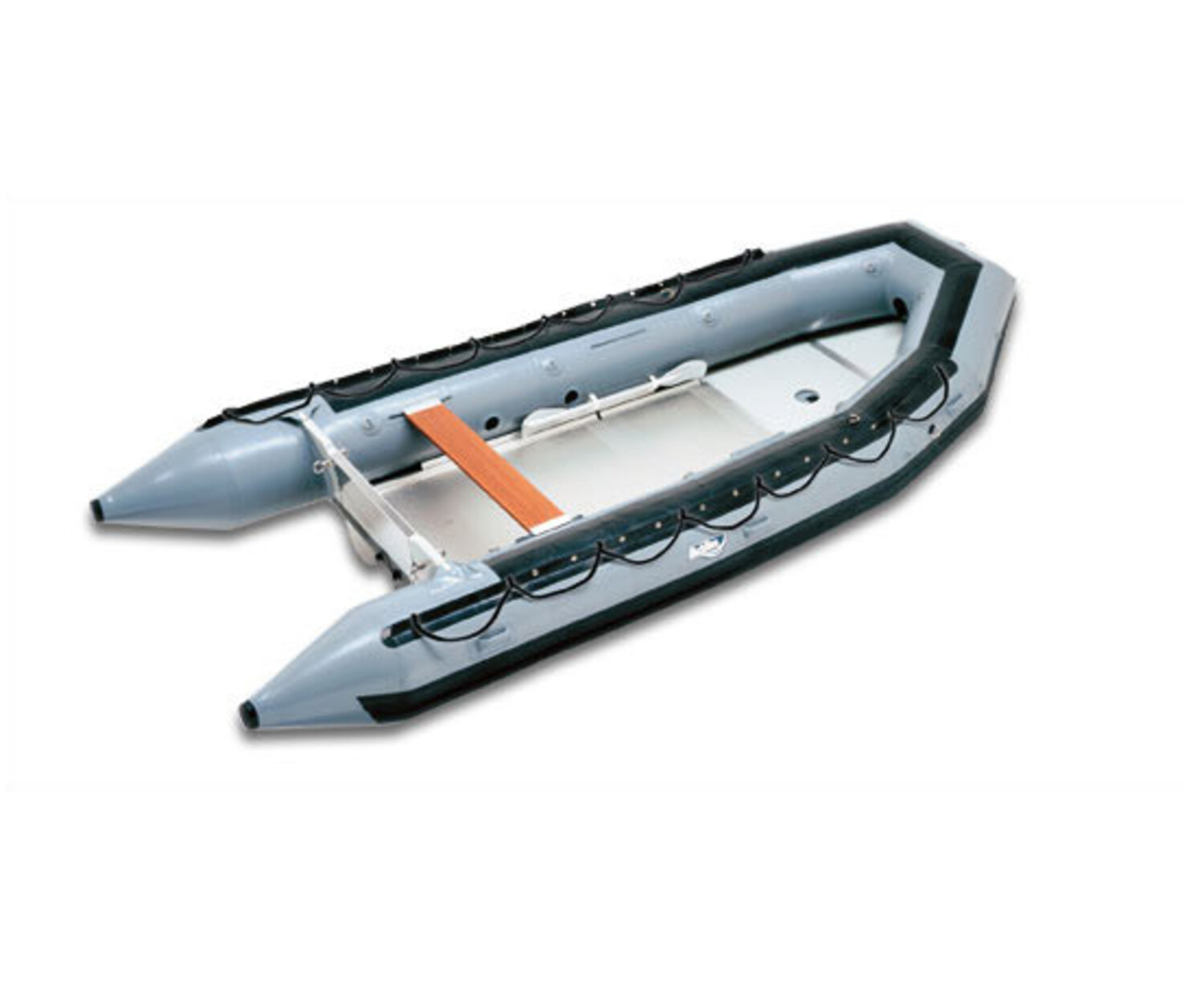

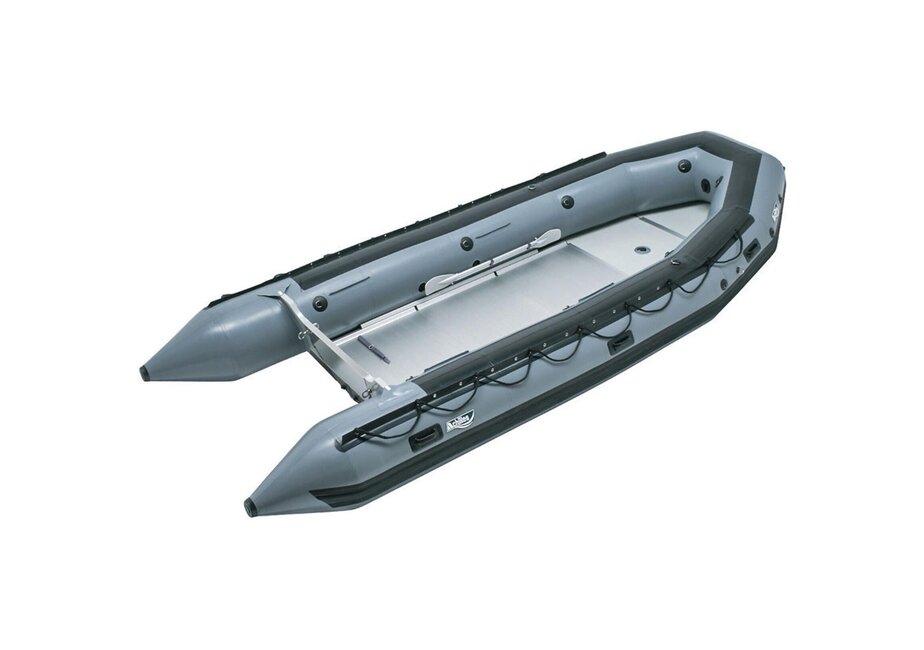

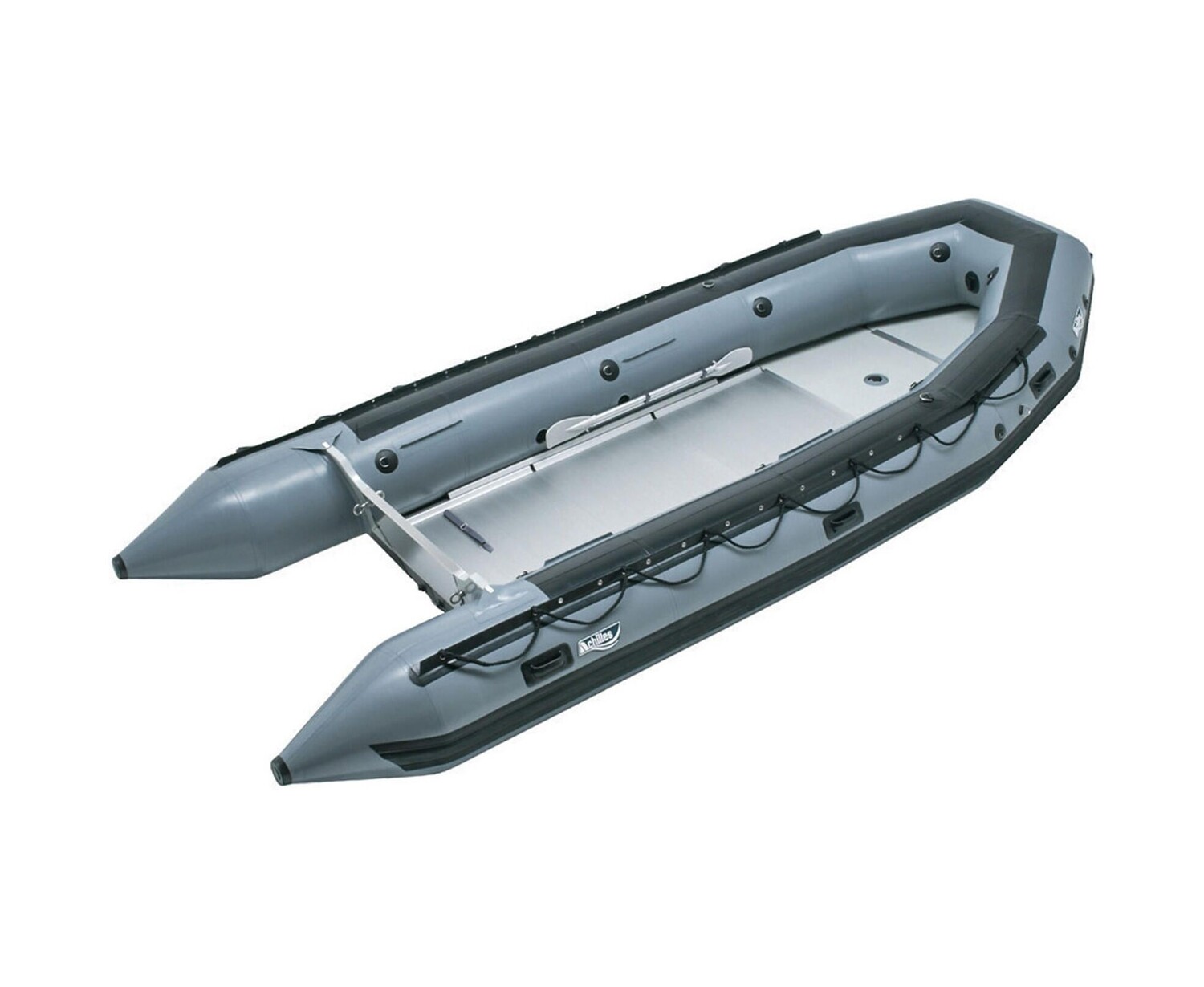

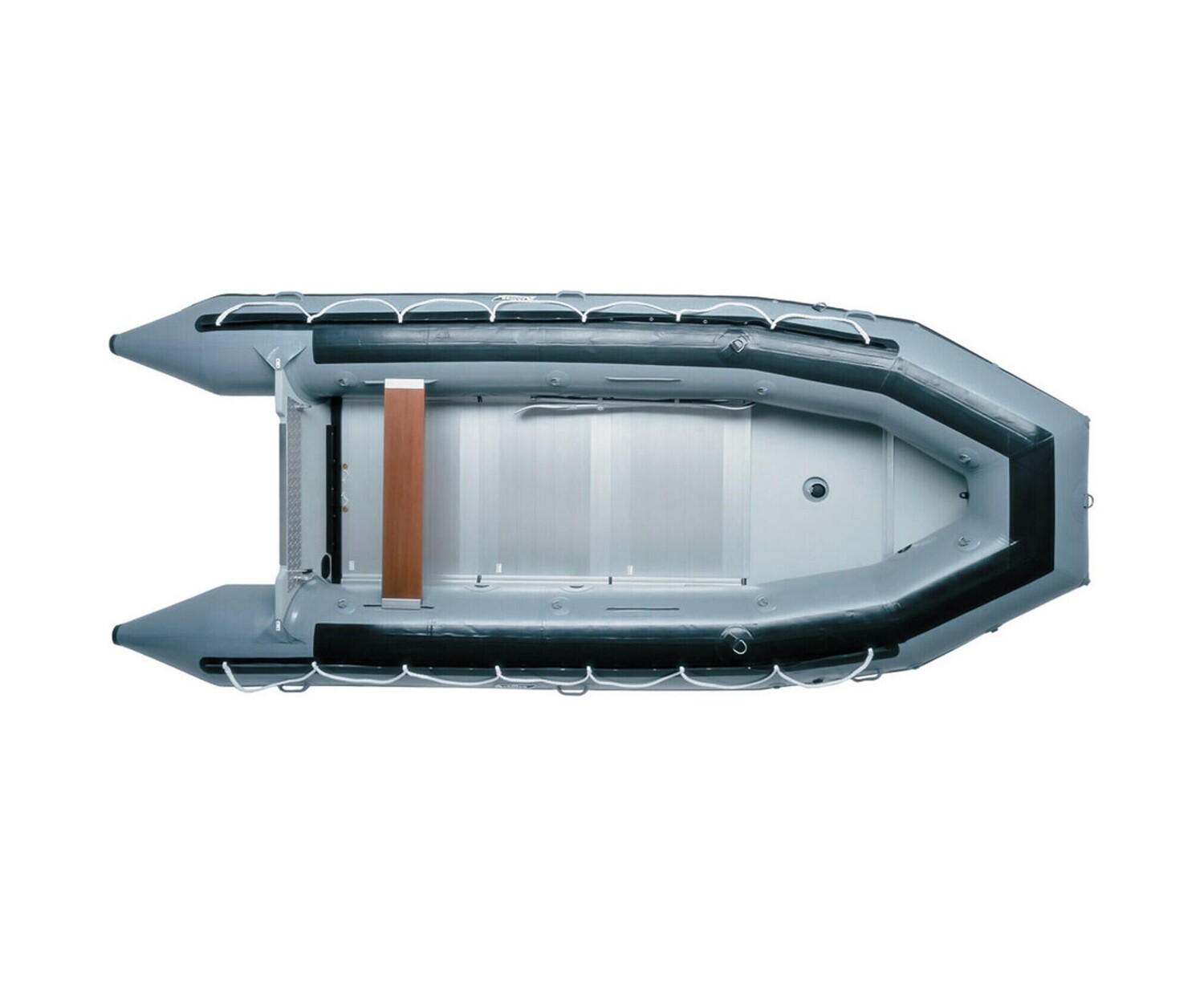

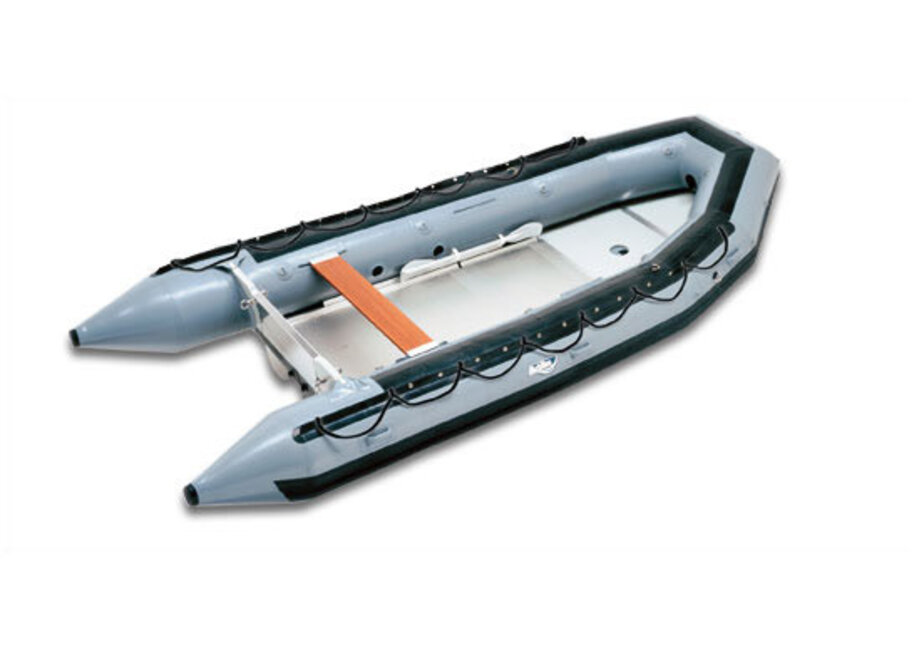

Note: Boat images may be different than production models.




SU-14

  • Color
  • Gray, Black or Orange*
  • Length
    14'0" (425 cm)
  • Inside Length
    9'4" (284 cm)
  • Beam
    5'10" (178 cm)
  • Inside Beam
    2'8" (82 cm)
  • Tube Diameter
    19" (48 cm)
  • Weight
    280 lbs. (127 kg)
  • Load Capacity
    2230 lbs. (1010 kg)
  • Person Capacity
    6
  • Recommended H.P.
    35 (10-55) long
  • Maximum H.P.
    55 long
  • Air Chambers
    4 & keel

SU-16

  • Color
    Gray, Black or Orange*
  • Length
    16'0" (488 cm)
  • Inside Length
    10'10" (330 cm)
  • Beam
    6'9" (206 cm)
  • Inside Beam
    3'3" (100 cm)
  • Tube Diameter
    21" (53 cm)
  • Weight
    371 lbs. (168.5 kg)
  • Load Capacity
    3170 lbs. (1440 kg)
  • Person Capacity
    9
  • Recommended H.P.
    40 (20-75) long
  • Maximum H.P.
    75 long
  • Air Chambers
    5 & keel

SU-18

  • Color
    Gray, Black or Orange*
  • Length
    18'0" (549 cm)
  • Inside Length
    12'0" (366 cm)
  • Beam
    7'7" (230 cm)
  • Inside Beam
    3'7 (110 cm)
  • Tube Diameter
    24" (60 cm)
  • Weight
    433 lbs. (196 kg)
  • Load Capacity
    4630 lbs. (2100 kg)
  • Person Capacity
    11
  • Recommended H.P.
    50 (25-90) long
  • Maximum H.P.
    90 long
  • Air Chambers
    5 & keel
