NRS - NRS Frame Raft Motor Mount

Attach an outboard motor to the NRS Raft Motor Mount and your raft is ready for fishing or moving you through those long, flat stretches

Read more...

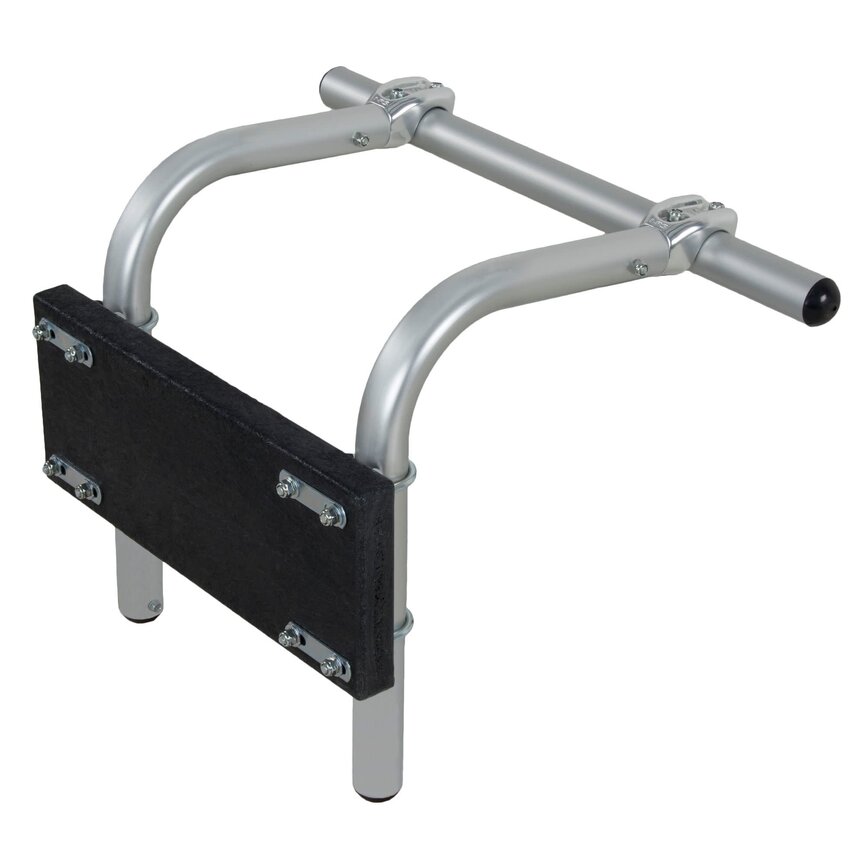

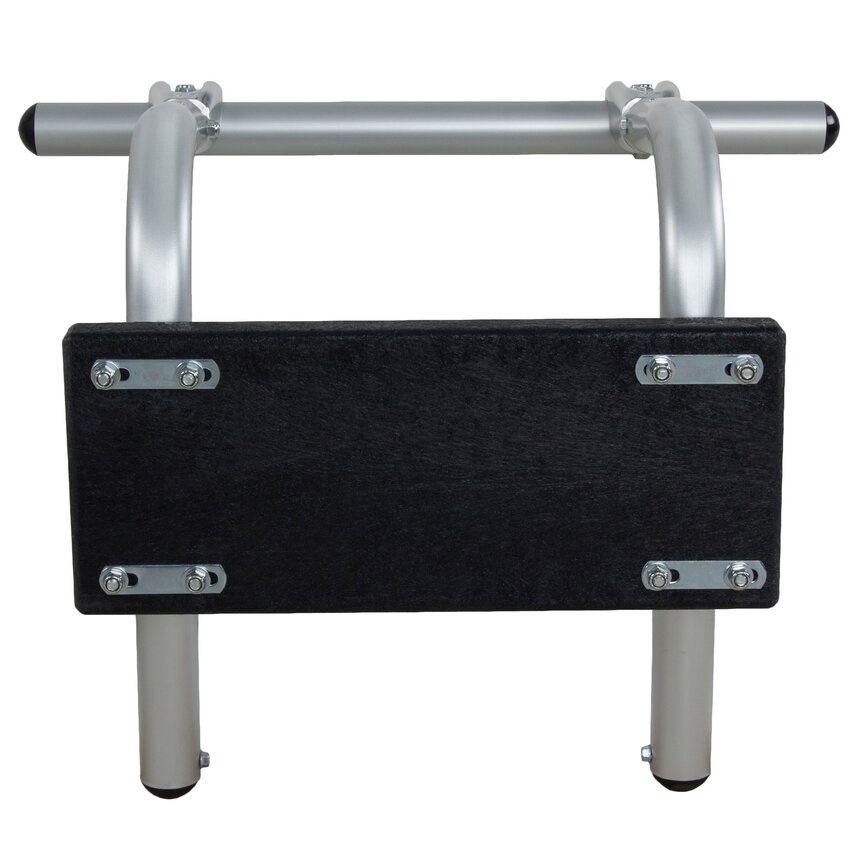

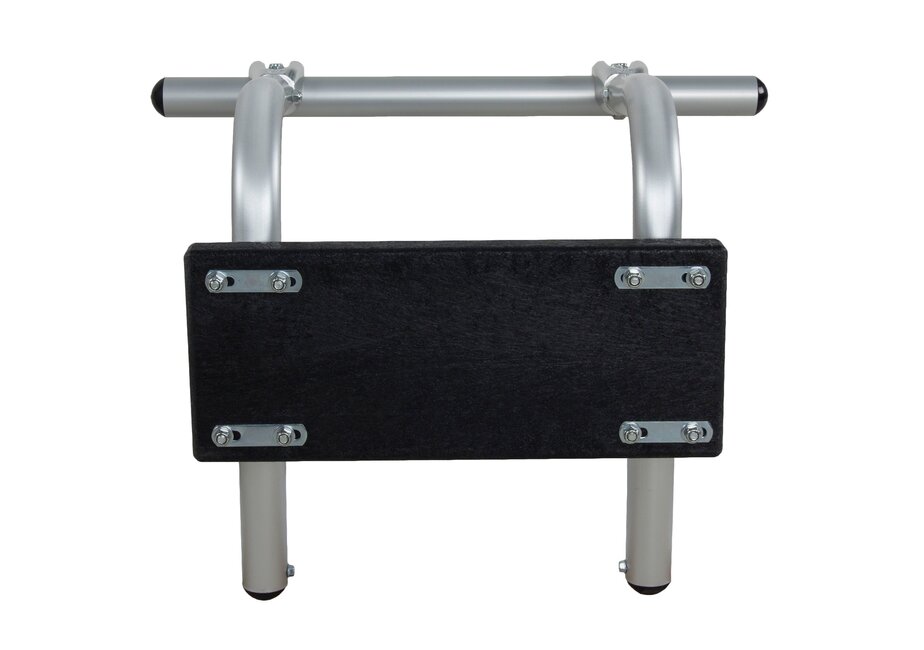

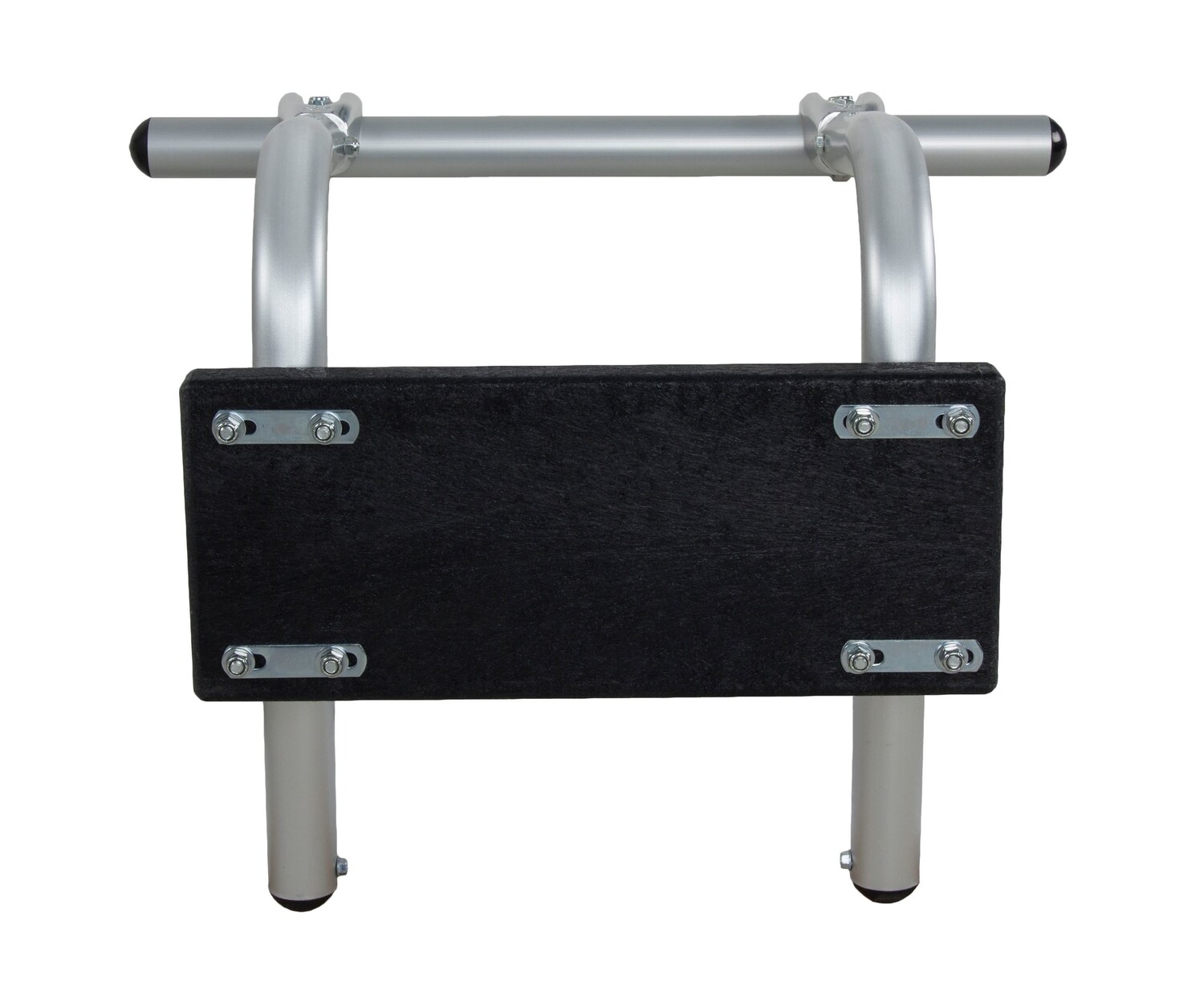

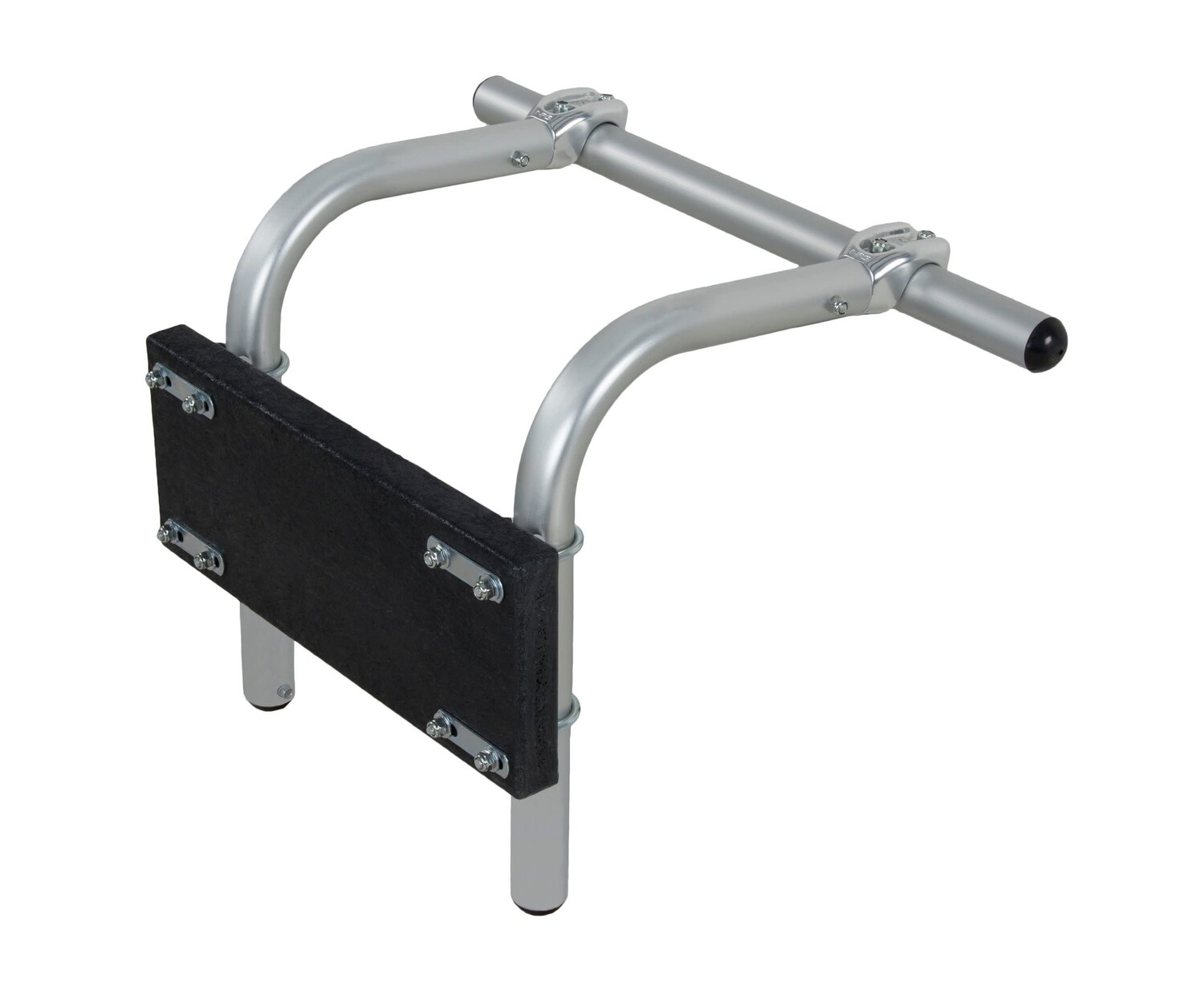

Attach an outboard motor to the NRS Raft Motor Mount and your raft is ready for fishing or moving you through those long, flat stretches.

  • We use our heavy-duty 1-5/8" OD 6061-T6 aluminum pipe to make the framework for the Motor Mount.
  • The 18" wide transom plate is a piece of 2" x 8" wood/plastic composite decking material that will not rot or deteriorate when exposed to water and sun.
  • We back the transom plate with two pieces of aluminum channel to increase the grip on the L-shaped pipe sections. Four 4 1/4" motor mount U-bolts hold the transom plate firmly in place.
  • If you already have an NRS Stern Seat Mount, you can install your Motor Mount on the Seat Bar.
  • If you do not have a Stern Seat Mount you will need a pair of NRS Stern Side Rails (item #90022.02, sold separately) to link the Motor Mount to the rear Crossbar of your frame. We stock three sizes: 32", 36" and 39". Measure the distance from the center of the rear crossbar to the center of the raft's rear tube. If you need a length other than those stock lengths, we will custom bend the size you need.
  • In our experience, a 10-hp motor is generally as large a motor as most boaters use. Even a 3-hp motor will move a raft along at a pretty good clip. Operating a raft at high speeds can be unsafe, and with a self-bailing raft will definitely result in water jetting up through the drain holes!
  • Always attach a safety rope or strap from your motor to the frame.



PRODUCT TIPS



  • The Raft Motor Mount needs the Motor Mount Stern Side Rails, item #90022.02, and a piece of Frame Pipe, Item # 91002.01, (or a Stern Seat Mount item #92017.03) to attach to your main frame. These are sold separately.



Material: 1 5/8" 6063-T6 Anodized Aluminum Frame Pipe
Included Components:
  • 2 - NRS Frame Pipes with LoPro Fittings
  • 6 - U-bolts with nuts and washers
Includes:
  • 2x8 wood/plastic composite decking transom plate, 18" wide
  • 24" piece of frame pipe, with tho frame plugs



SIZING

A B C D E F
13 7/8" 10 1/2" 17" 17 7/8" 7 1/2" 24"

Raft Motor Mount

Support arms are bent in toward boat at a 7 degree angle from the vertical.
