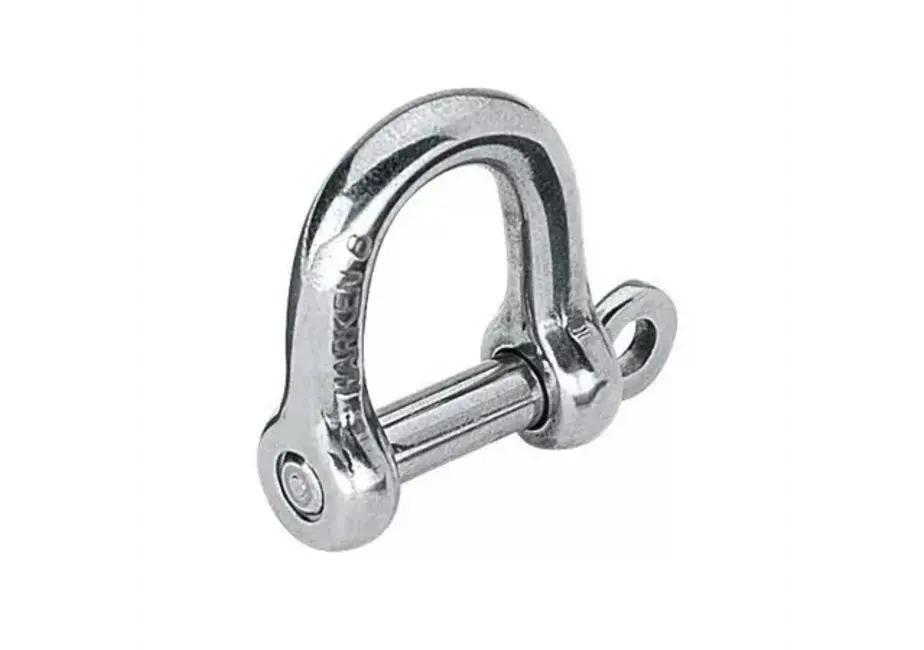

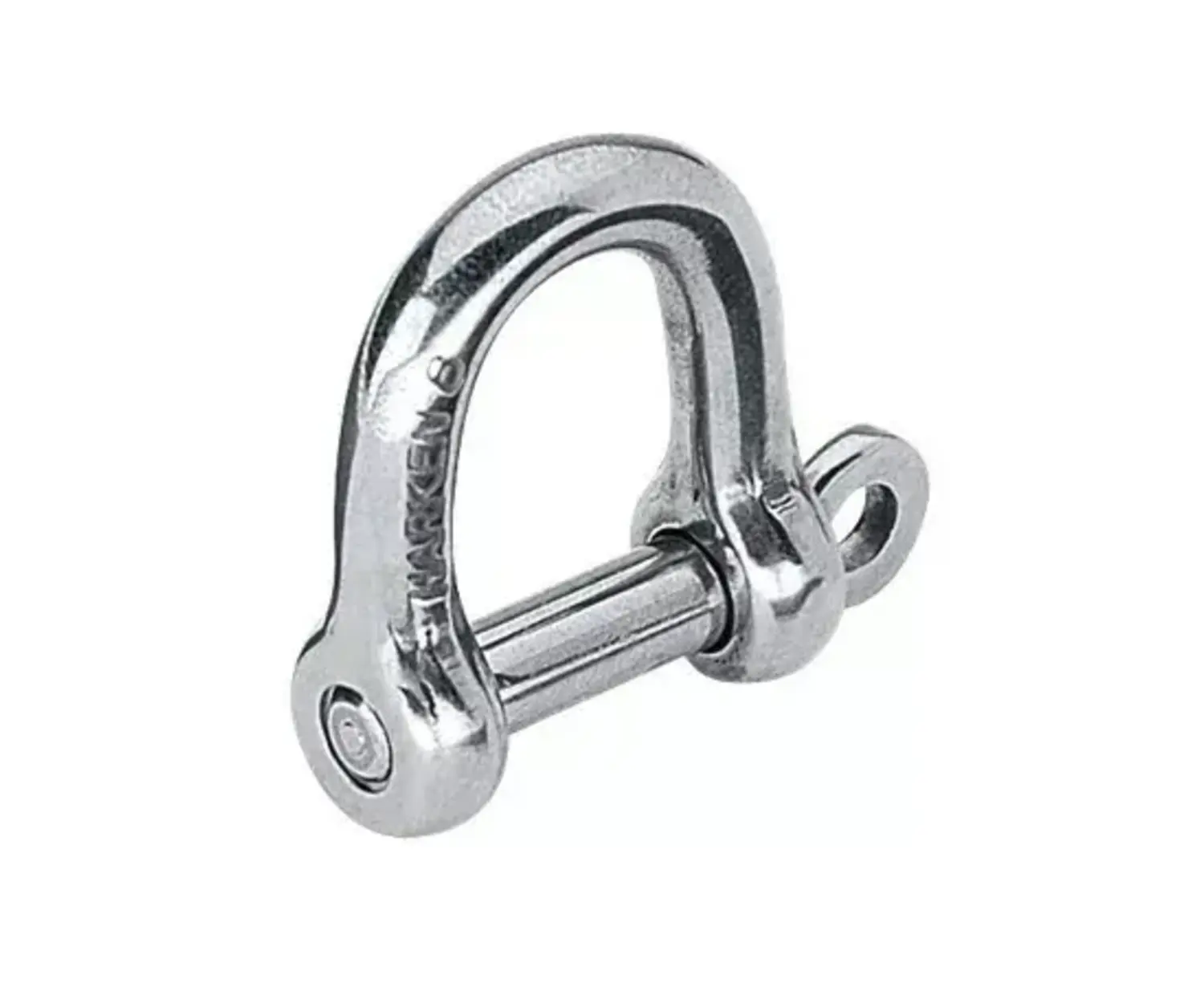

Harken 6mm "D" Shackle
$14.95
Availability:
In Stock (5)
Check Other Locations Availability
Available in store
CloseForged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. "D" shackles are the most common type of shackle. They are best suited for aligned attachment points.
|
Maximum working load (kg) 750 kg Shackle pin Ø (mm) 6 mm |
Maximum working load (lb) 1650 lb Shackle pin Ø (in) 1/4 in |
Specifications
|
Weight (g) |
25 g |
|
Weight (oz) |
0.88 oz |
|
Maximum working load (kg) |
750 kg |
|
Maximum working load (lb) |
1650 lb |
|
Breaking load (lb) |
3300 lb |
|
Breaking load (kg) |
1500 kg |
|
A (mm) |
19 mm |
|
A (in) |
3/4 in |
|
B (mm) |
14 mm |
|
B (in) |
9/16 in |
|
Shackle pin Ø (mm) |
6 mm |
|
Shackle pin Ø (in) |
1/4 in |
